Chapter 10 COOLING SYSTEM
Chapter 10 COOLING SYSTEM
1. Cooling System - Remove and Inspect

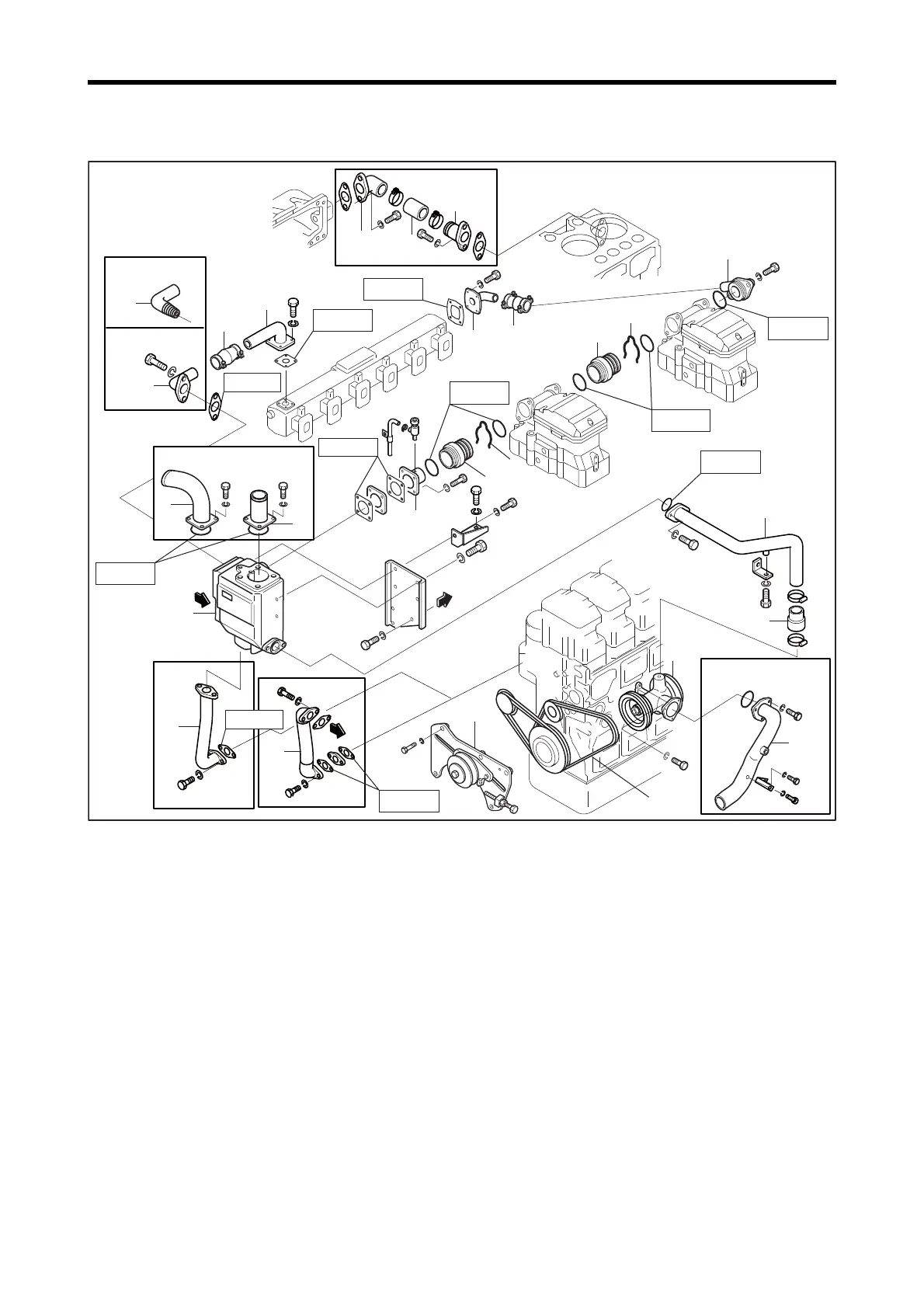

1.1 Water Pump, Thermostat and Water Pipe - Remove and Inspect
Water Pump, Thermostat and Water Pipe - Remove and Inspect
Replace
Replace
Replace
Replace
Replace
Replace
Replace
Replace
Replace
Replace
Replace
20
19
15
18
17
17
14
3
TK spec
TA, MPTA spec
TA, TK, PTA, PTAA, MPT,
MPTA, MPTK spec
PTA, PTAA spec
MPT, MPTA spec
PTA, PTAA spec
MPT, MPTA spec
TA, MPTA spec
MPTK spec
TA, MPTA spec
4
5
1
2
1
2
12
13
21
6
8
7
9
10
11
8
16
16
A
A
Crankcase
Removing Sequence
1 Snap ring
2 Connector
3 Water pipe
4 Coupling
5 Water pipe
6 Water pipe
7 Coupling
8 Water pipe
9 Water pipe
10 Rubber hose
11 Water pipe
12 Water pipe
13 Water pipe
14 Rubber hose
15 Water pipe
16 Water pipe
17 Water pipe
18 Thermostat
19 Water pump (Approx 24 kg [53 lb])
20 Belt
21 Tension pulley
