Chapter 11 INLET AND EXHAUST SYSTEMS
2. Inlet and Exhaust Systems - Disassemble, Inspect and Assemble
2.1 Air Cooler - Disassemble, Inspect and Assemble
Air Cooler - Disassemble, Inspect and Assemble

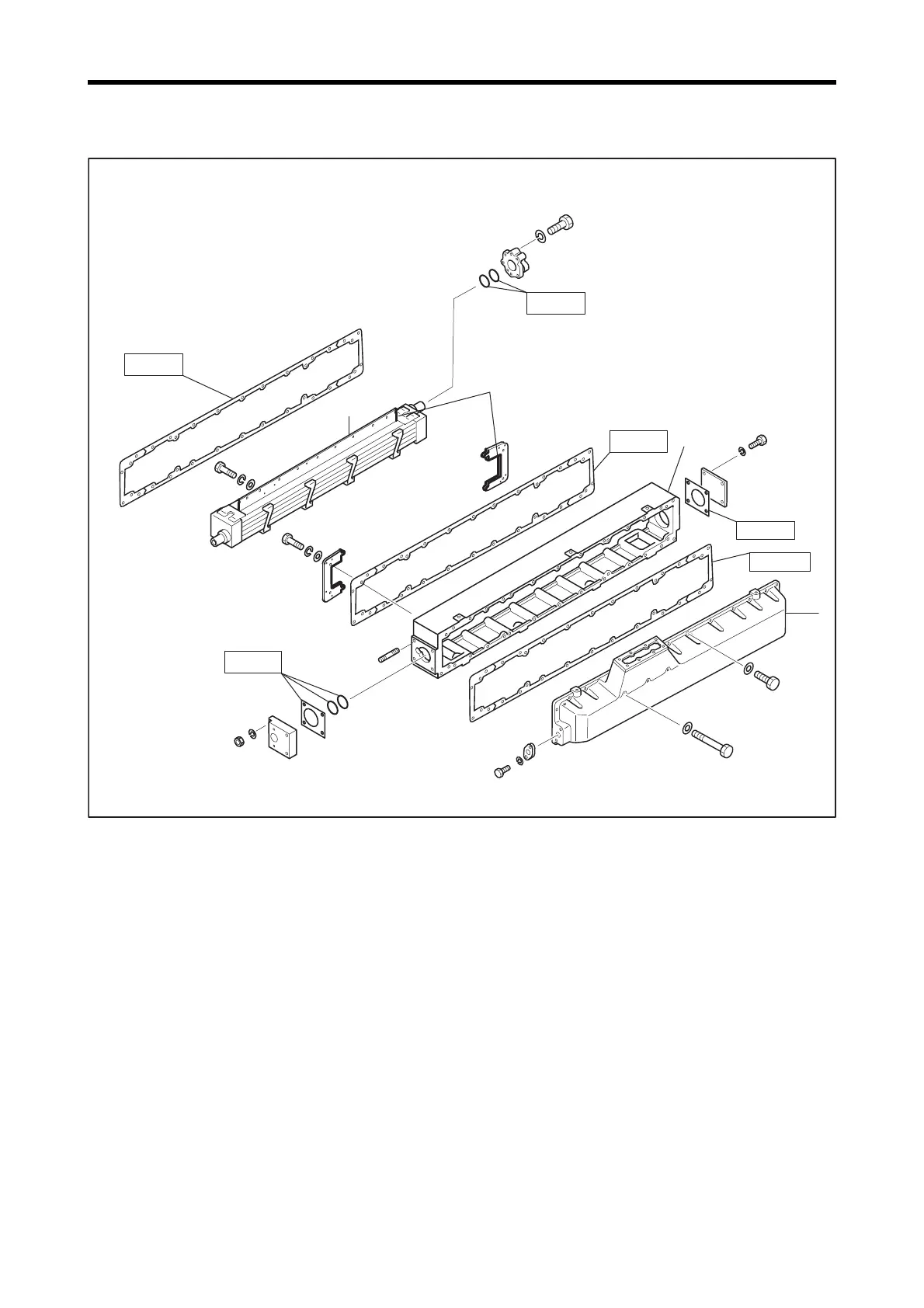

Fresh air cooler internal cooling, water cooled exhaust manifold spec
The mating face between the element and plate must
be sealed with KE45-W (Shin-Etsu Chemical Co., ltd.)
or equivalent silicon sealant (2 places).
Replace
Replace
Replace
Replace
Replace
Replace
2
3
1
Disassembling Sequence
1 Air cooler cover
2 Air cooler element (Approx 46 kg [101 lb])
3 Air cooler case
