10-24
Chapter 10 COOLING SYSTEM

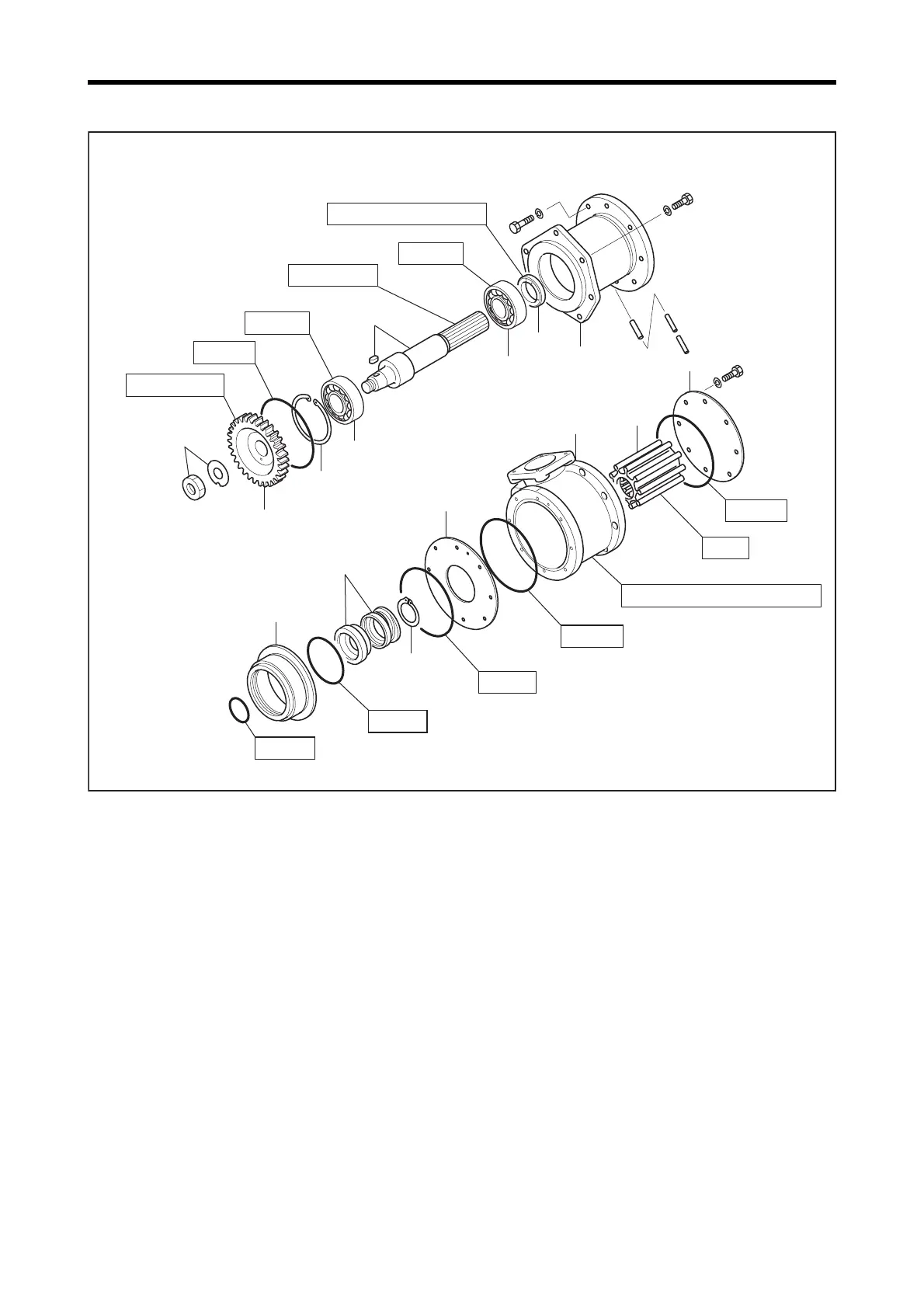

2.11 Sea Water Pump - Disassemble and Inspect
Sea Water Pump - Disassemble and Inspect
Rotation
Rotation
Replace
Replace
Peeling, wear
Deformation, aging, crack, flaw
Spline wear
Wear
Lip surface wear, aging
Replace
Replace
Replace
Replace
MTK, MPTA, MPTK spec
5
6
7
9
8
10
11
13
14
15
12
3
4
1
2
Disassembling Sequence
1 Cover
2 Water pump impeller
3 Case
4 Plate
5 Snap ring
6 Unit seal
7 Housing
8 Nut, washer
9 Water pump gear
10 Snap ring
11 Water pump shaft
12 Bearing
13 Bearing
14 Oil seal
15 Bearing case
