7.5.3 Halt Operation
When HALT is asserted and BERR is not asserted, the MC68030 halts external bus activity
at the next bus cycle boundary. HALT
by itself does not terminate a bus cycle. Negating and
reasserting HALT
in accordance with the correct timing requirements provides a single-step
(bus cycle to bus cycle) operation. The HALT
signal affects external bus cycles only; thus,
a program that resides in the instruction cache and performs no data writes (or reads that
miss in the data cache) may continue executing, unaffected by the HALT
signal.

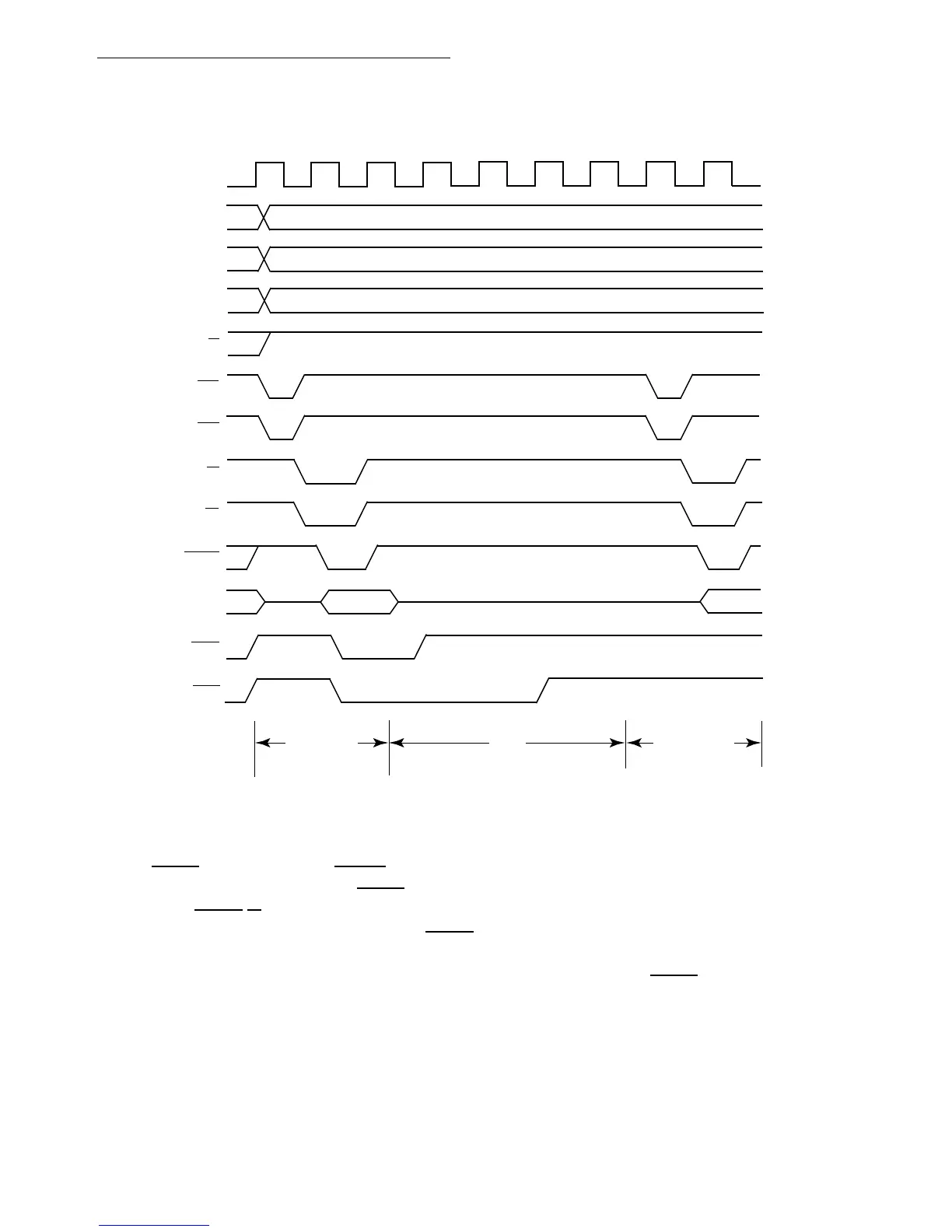

Figure 7-55. Synchronous Late Retry
A31-A0
FC2-FC0
R/W
ECS
OCS
CLK
S0 S2
S1
AS
DS
STERM
SIZ1–SIZ0
S3 S0 S1 S2 S3
D31–D0
BERR
HALT
READ CYCLE
RETRY SIGNALED
HALT RETRY CYCLE
