Data Organization and Addressing Capabilities
MOTOROLA MC68030 USER’S MANUAL 2-19
2.4.15 Program Counter Memory Indirect Preindexed Mode
This mode is similar to the memory indirect preindexed mode described in 2.4.10 Memory
Indirect Preindexed Mode, but the PC is used as the base register. Both the operand and
operand address are in memory. The processor calculates an intermediate indirect memory
address by adding the PC contents, a base displacement (bd), and the scaled contents of
an index register. The processor accesses a long word at that address and adds the optional
outer displacement (od) to yield the effective address. The value of the PC is the address of
the first extension word. The reference is a program space reference and is only allowed for
reads (refer to 4.2 Address Space Types).
In the syntax for this mode, brackets enclose the values used to calculate the intermediate
memory address. All four user-specified values are optional. However, the user must supply
the assembler notation ZPC (zero value is taken for the PC) to indicate that the PC is not
used. This allows the user to access the program space without using the PC in calculating
the effective address. Both the base and outer displacements may be null, word, or long
word. When a displacement is omitted or an element is suppressed, its value is taken as
zero in the effective address calculation.

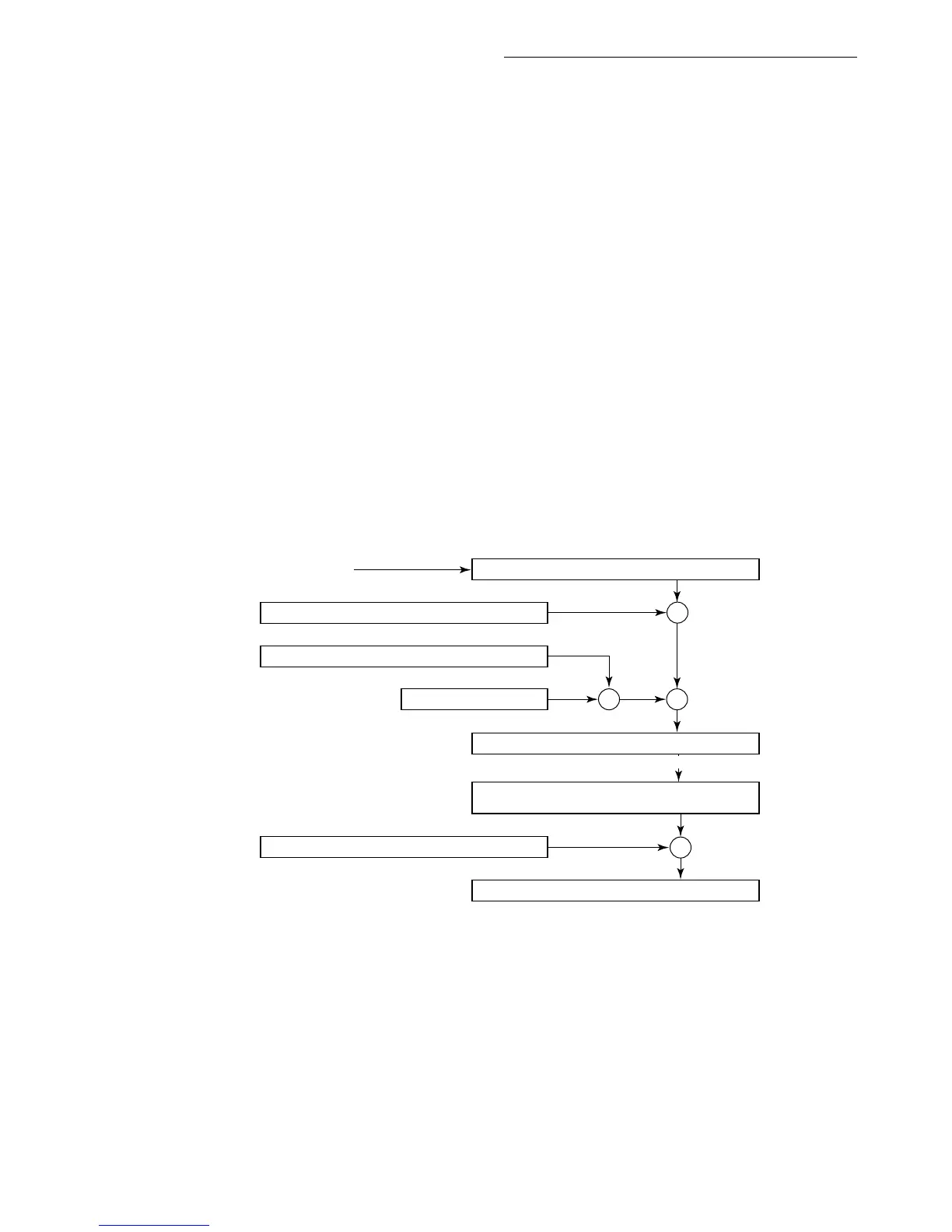

31 0
31 0
31 0
31 0
31 0
31 0
31 0
EA = (bd + PC + Xn . SIZE * SCALE) + od
([bd, PC, Xn. SIZE*SCALE],od)
111
011
+
OPERANDEFFECTIVE ADDRESS:
NUMBER OF EXTENSION WORDS:
GENERATION:
ASSEMBLER SYNTAX:
MODE:
REGISTER FIELD:
PROGRAM COUNTER:
SIGN-EXTENDED VALUE
SCALE VALUE
+
X
BASE DISPLACEMENT:
INDEX REGISTER
1, 2, 3, 4 OR 5
ADDRESS OF EXTENSION WORD
SIGN-EXTENDED VALUE
INDIRECT MEMORY ADDRESS
POINTS TO
VALUE AT INDIRECT MEMORY
ADDRESS IN PROGRAM SPACE
SIGN-EXTENDED VALUE
+
OUTER DISPLACEMENT:
0
7
