Communication Function 3 PLC Link Function
10 - 6
10.2.2 Setting of Unit No.
Unit No.
In the default settings in the system registers, the “Unit No.” parameter for the
communication port is set to “1”.
In a PLC link that connects multiple PLCs on the same transmission line, the “Unit No.”
parameter must be set in order to identify the various PLCs.
1234 16
Unit No.
RS485
Max. 16 units

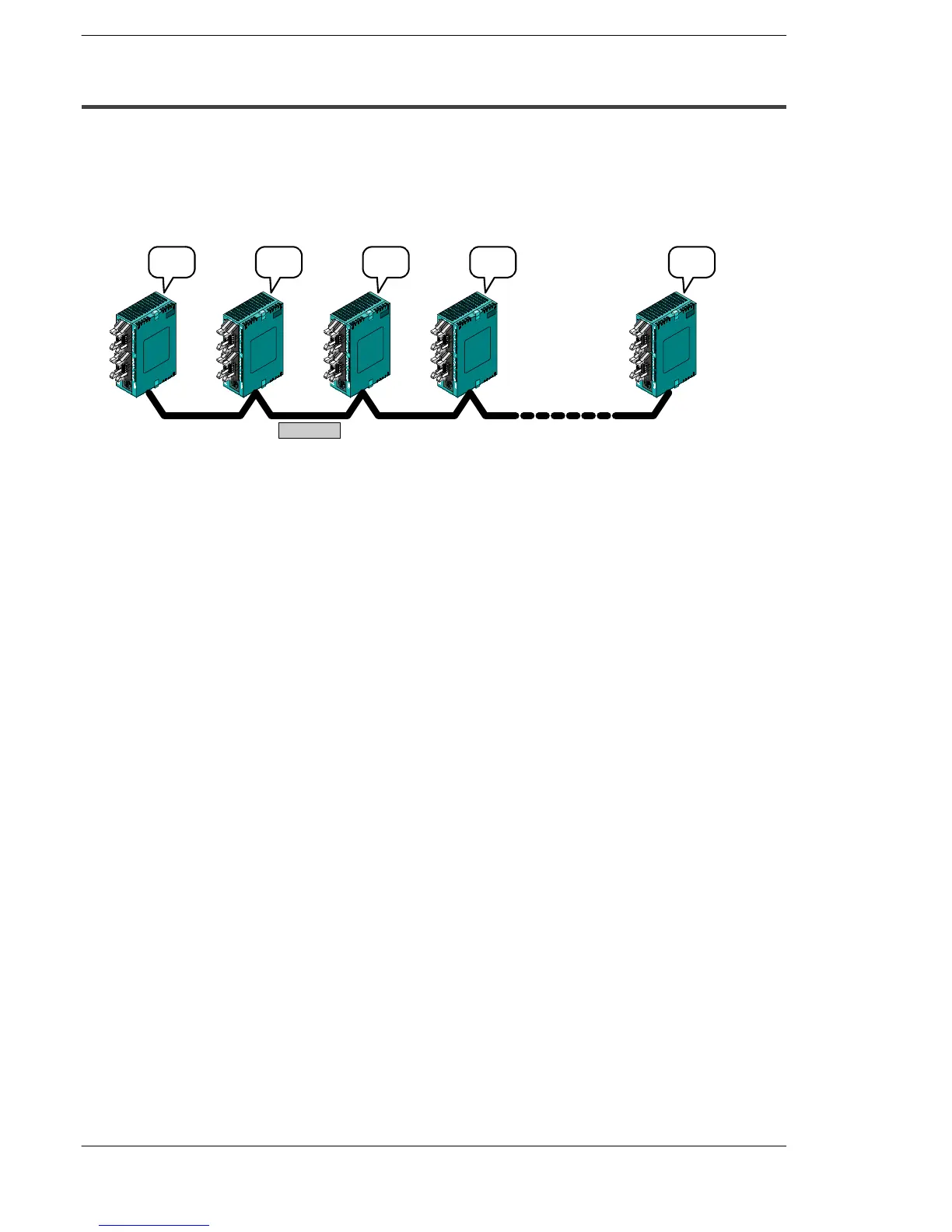

Figure 204: FPΣ Unit No. for PLC link
The unit number is a number assigned to a given PLC in order to identify that particular
PLC. Unit numbers should be specified in such a way that the same number is not used
for more than one PLC on the same network.
Setting method
The unit number is specified using the system registers settings in the FPWIN GR
programming tool, and the unit No. setting switch on the side of the FPΣ control unit.
Setting the unit No. setting switch to “0” makes the system register settings valid.
