3.3 Expansion Method of FPΣ Expansion Unit
3-5
3.3 Expansion Method of FPΣ Expansion Unit
The dedicated expansion unit for FPΣ is expanded by connecting to the left side of the
control unit. Because unit expansion is done using the left-side connector for FPΣ
expansion and expansion hook on the side of the unit, no expansion cable is needed.

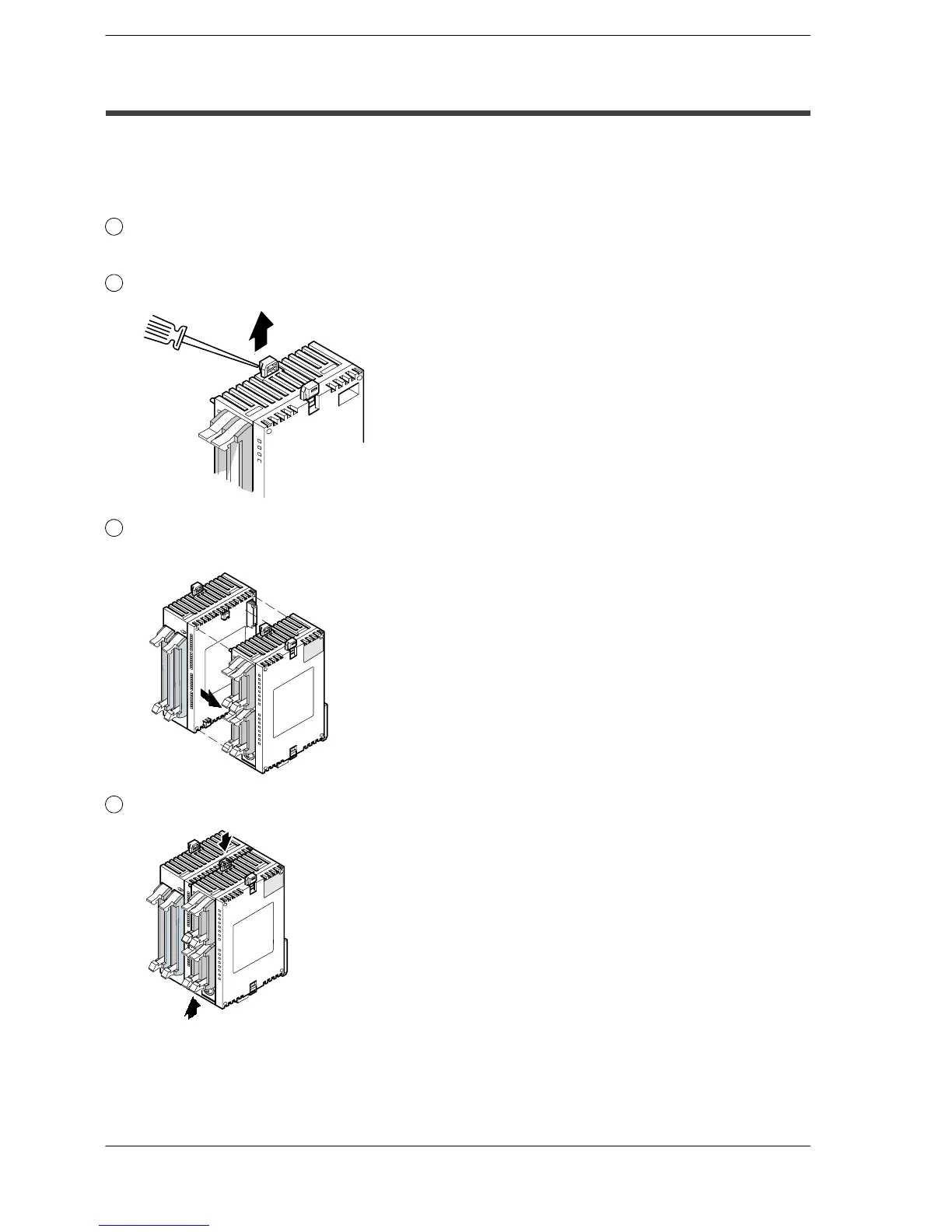

1
Remove the cover on the left side of the unit so that the internal left-side connector for
FPΣ expansion is exposed.
2
Raise the expansion hooks on the top and bottom sides of the unit with a screwdriver.
3
Align the pins and holes in the four corners of the control unit and expansion unit, and
insert the pins into the holes so that there is no gap between the units.
4
Press down the expansion hooks raised in step 2 to secure the unit.
