NAiS FP Series User Manual

FPΣ
Expansion
3-6
3.4 Specifications of FPΣ Expansion Unit
3.4.1 FPΣ Expansion I/O Unit

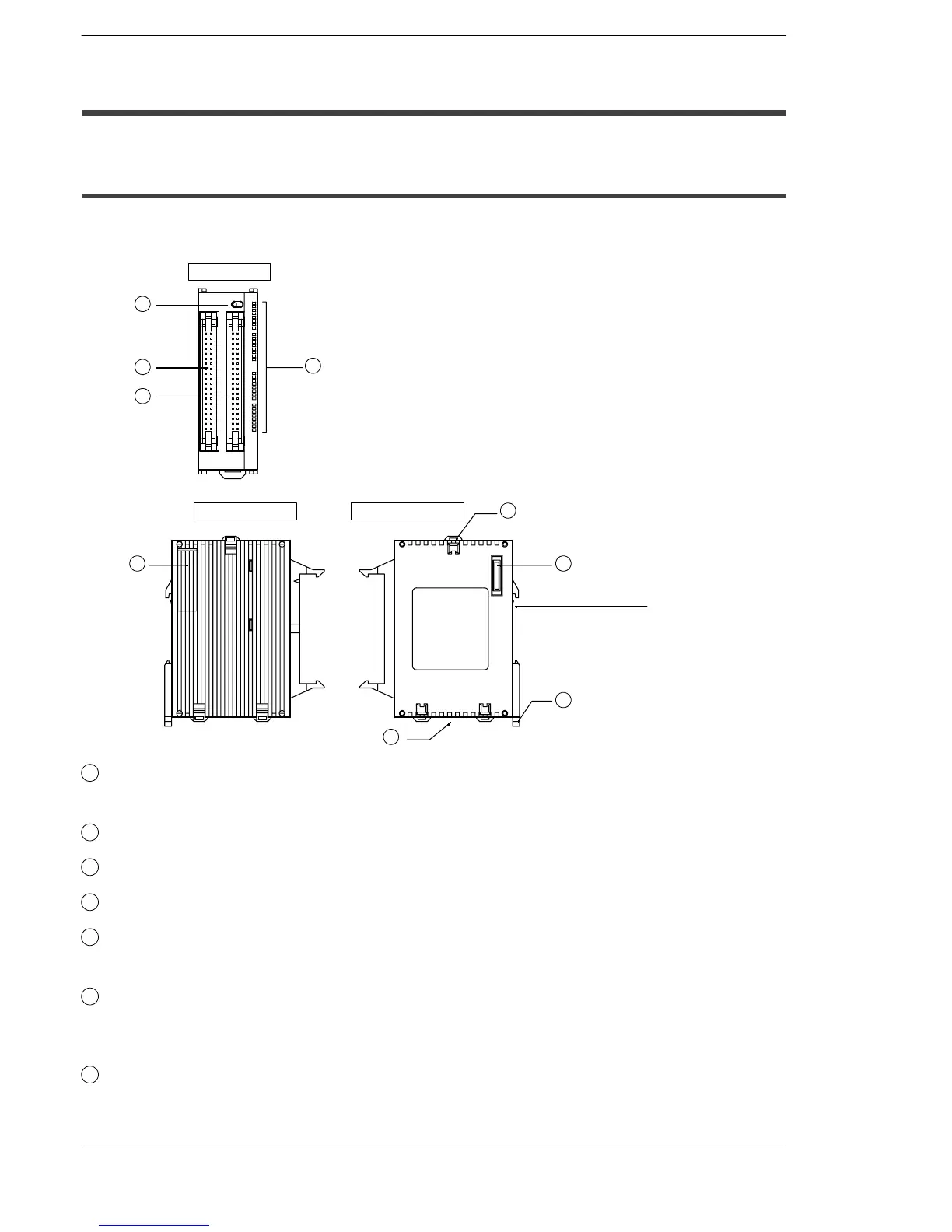

Parts and Functions
FPG-XY64D2T
(Input: 32 points / Transistor output: 32 points)
DIN standard
rail attachment
Front view
Left side view Right side view
1
2
3
4
5
6
5
7
6
1
LED display selection switch
Switches between the input (32 points) and output (32 points) of the LED display.
2
Input connector (40 pins)
3
Output connector (40 pins)
4
Input and Output indicator LEDs
5
FPΣ expansion connector
This expansion connector is used to connect the dedicated unit for FPΣ.
6
Expansion hook
This hook is used to secure expansion unit. The hook is also used for installation on FP0
mounting plate (flat type)(Part No.: AFP0804).
7
DIN rail attachment lever
The expansion unit enables attachment at a touch to a DIN rail. The lever is also used for
installation on FP0 mounting plate (slim 30 type)(Part No.: AFP0811).
