FPΣ
2.2 Input and Output Specifications
2-9

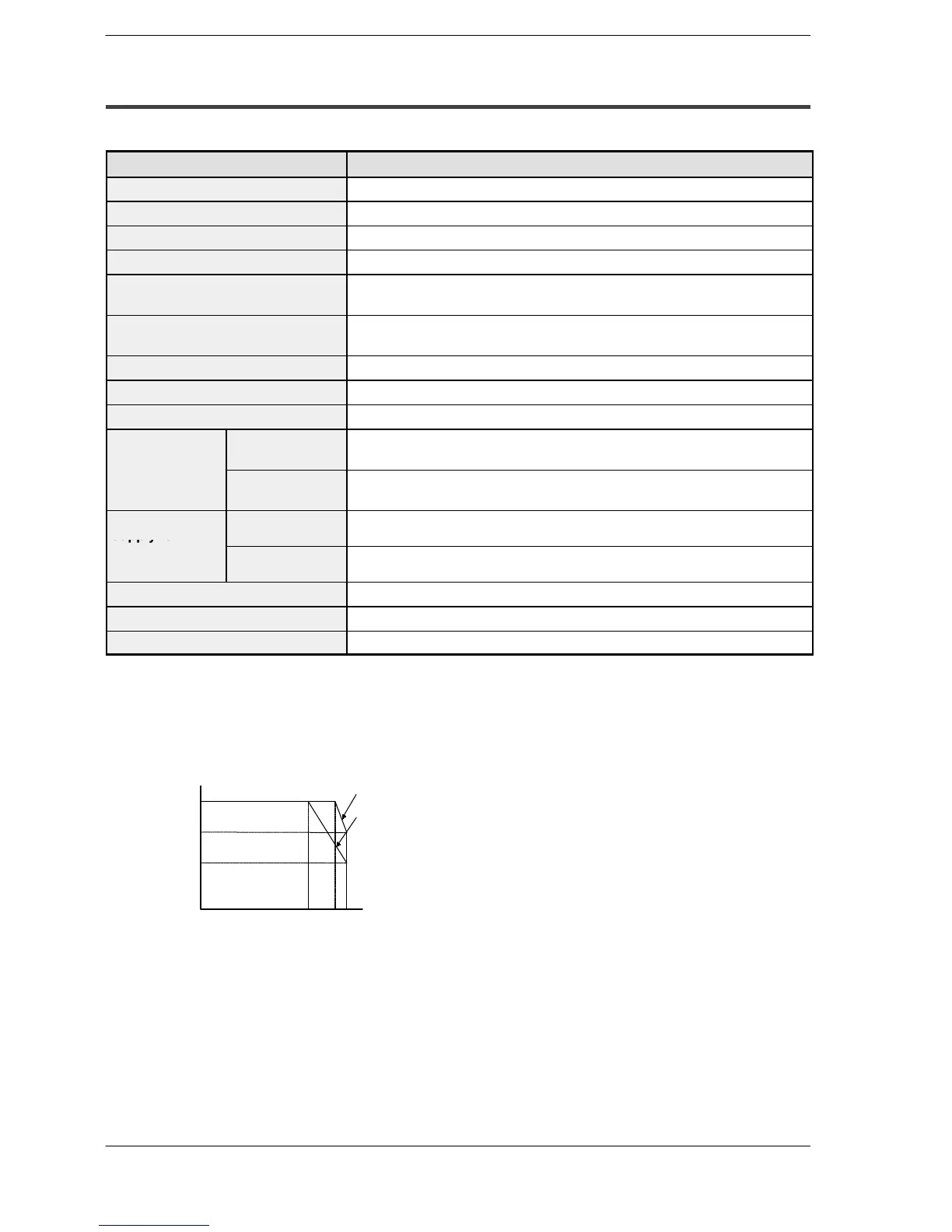

2.2.2 Output Specifications
Transistor output specifications (for C32T and C32T2)
Item Description
Insulation method Optical coupler
Output type Open collector (NPN)
Rated load voltage 5to24VDC
Operating load voltage range 4.75 to 26.4 V DC
Max. load current For Y0, Y1, Y3, Y4:0.3 A
For Y2, Y5 to YF: 0.1 A
Max. surge current For Y0, Y1, Y3, Y4:0.9 A
For Y2, Y5 to YF: 0.5 A
Output points per common 16 points/common
Off state leakage current 100 µA or less
On state voltage drop 0.5 V or less
Response time off → on For Y0, Y1, Y3, Y4 (at 15 mA or more): 2 µs or less
For Y2, Y5 to YF: 0.2 ms or less
on → off For Y0, Y1, Y3, Y4 (at 15 mA or more): 8 µs or less
For Y2, Y5 to YF: 0.5 ms or less
External power
supply for
driving internal
circuit
Current 70 mA or less
Surge absorber Zener diode
Operating mode indicator LED display
Phase fault protection Thermal protection for Y2, Y5 to YF
Limitations on number of simultaneous output on points
Keep the number of output points per common which are simultaneously on within the
following range as determined by the ambient temperature.
16
8
46/
107.8
52/
118.6
55/
124
[C32T]
at 24 V DC
at 26.4 V DC
12
Ambient temperature (°C/°F)
Number of
points per
common
which are si-
multaneous
on
Figure 14: FPΣ Limitations on number of simultaneous output on points
