Nikon Eclipse Ti-E User Manual

Chapter 1 Part Names
1.1 Ti-E, Ti-E/B
13
1.1 Ti-E, Ti-E/B

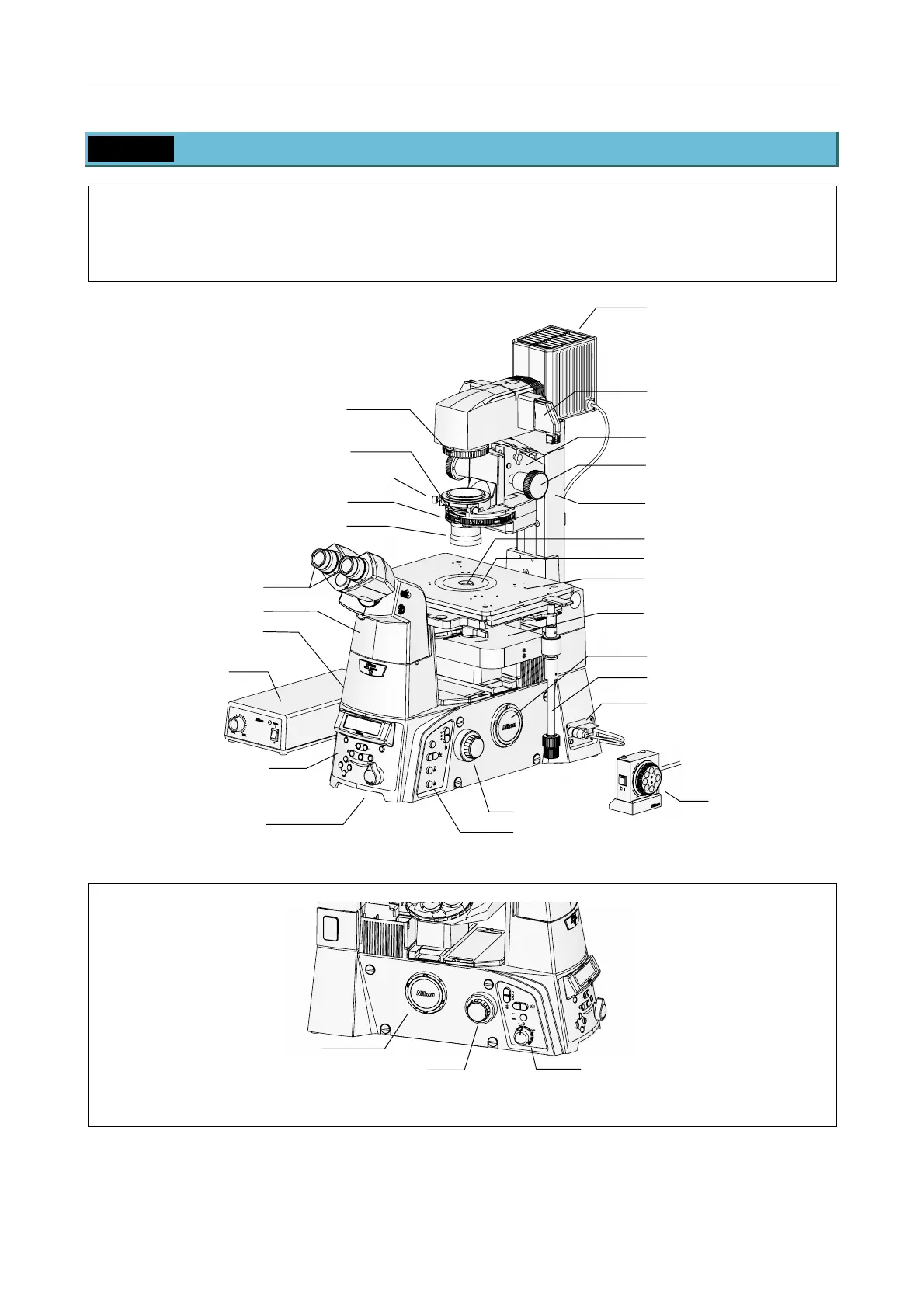

The illustrations below show the Ti-E microscope body with the following accessories:
TI-DH Dia Pillar Illuminator 100W, TI-C Condenser Turret, D-LH/LC Precentered Lamphouse LC, 12V
100W halogen lamp, TI-PS100W Power Supply, TI-SR Rectangular Mechanical Stage, TI-T-B Eyepiece
Base Unit, TI-TD Eyepiece Tube B, CFI 10x eyepieces, TI-ND6-PFS Perfect Focus Unit, objectives, etc.
B
Coarse
Fine
ExFine
Epi Shutter
FL Block
Refocus
Escape
PFS
OFFSET
OUT
DICHROIC MIRROR
IN
L80
EYE
MEMORY
DISPLAY
ON
Z
-
RESET
1X
1.5X
BRIGHTNESS
R100
L100
FOCUS
PFS
PFS
DOWN
UP
PFS
OFFSET
CONTROLLER
FINE
COARSE
Figure 1-1 Ti-E
ExFine
Fine
Coarse
Obj.
ON
OFF
6V30W
MAX.
12V100W
L80
EYE
DISPLAY
MEMORY
PFS
ON
RECALL
Z
-
RESET
BRIGHTNESS
R100
L100
FOCUS
Figure 1-2 Ti-E (left view)
* Attach a protective cap on the side port when the side port is not in use.
Left operation panel
Left side port *
Focus knob
Dia illumination lamphouse
(Figure: D-LH/LC)
Filter sliders
(
both sides
,
4 total
)
Dia pillar illuminator
(Figure: TI-DH)
Condenser mount
Nosepiece (Figure: TI-ND6-PFS)
Stage knob
Right side port *
Focus knob
PFS Offset Controller
Front operation panel
Power supply device
(Figure: TI-PS100W)
Eyepiece base unit
(Figure: TI-T-B)
Eyepiece tube (Figure: TI-TD)
Eyepieces (both sides)
Field diaphragm knob
Condenser lens
Condenser turret (Figure: TI-C)
Condenser centering knob
Aperture diaphragm open/close leve
r
Condenser focus knobs
(both sides)
Ob
j
ectives
Sta
g
e rin
g
(
concentric rin
g)
Right operation panel
Microscope base
(Figure: Ti-E)
Right connector panel
Stage (Figure: TI-SR)
