Nikon Eclipse Ti-E User Manual

Chapter 2 Microscopy

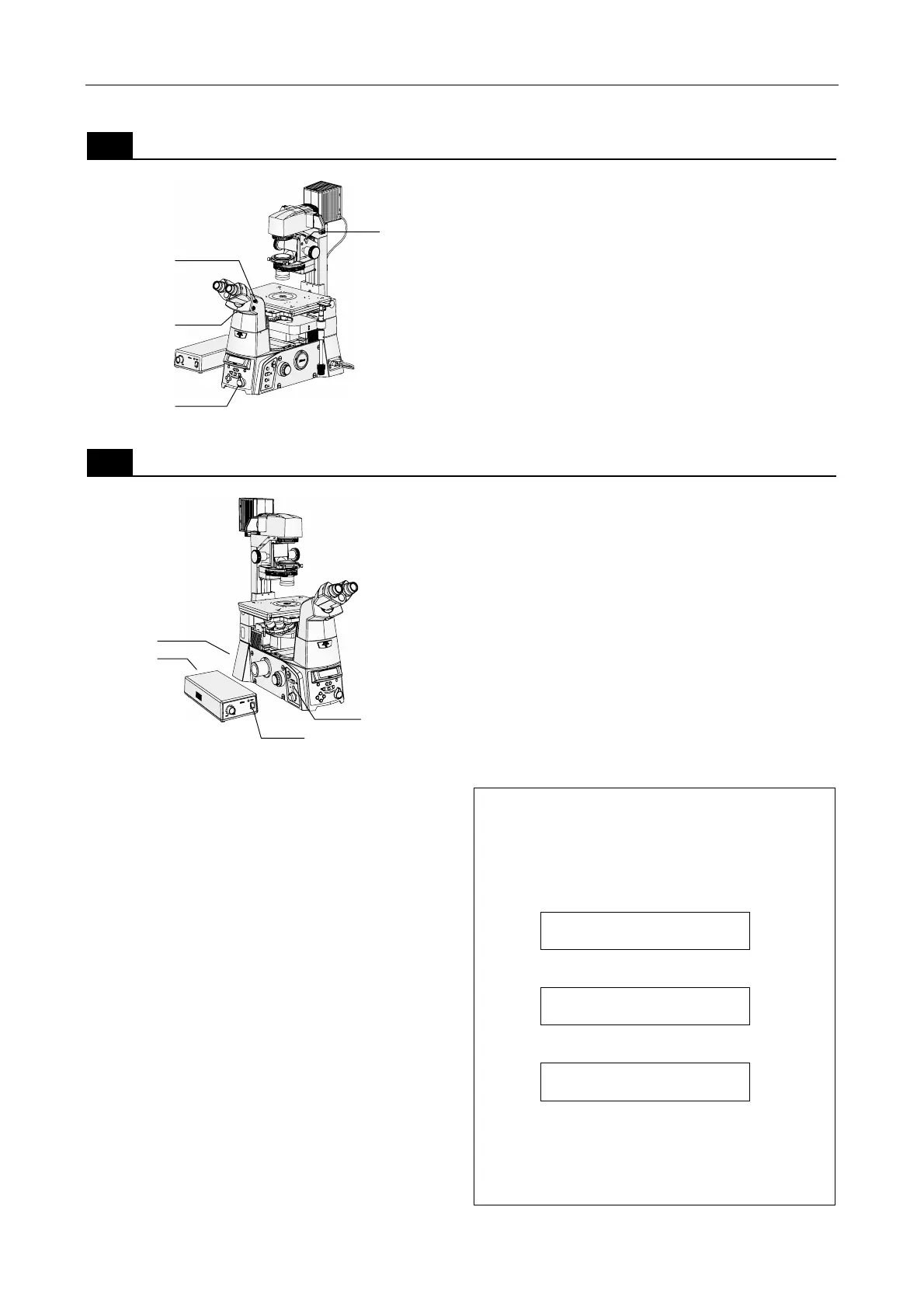

2.2 Bright-Field (BF) Microscopy
31
1
Reset convenient functions.
B
Coarse
Fin
e
ExFine
Epi Shutter
FL Block
Refocus
Escape
PFS
OFFSET
O
UT
DICHR
O
IC MI
R
ROR
I
N
L
8
0
E
Y
E
MEMORY
DI
S
PLAY
ON
Z
-
R
ESE
T
1X
1.5X
BR
IG
HTNES
S
R
100
L
100
FOCUS
P
F
S
1. Release the condenser refocusing clamp on
the dia pillar illuminator by rotating it
counterclockwise.
2. Open the shutter at the eyepiece by pushing
in the shutter operation lever on the right
side of the eyepiece tube.
3. Move the Bertrand lens out of the optical path
by moving the Bertrand lens operation lever
on the front of the eyepiece tube to position
“O”.
4. Rotate the intermediate magnification
selector dial on the front of the microscope
to the “1x” side.
2
Turn on the dia illuminator.
Coarse
Fine
ExFine
Obj.
ON
OFF
6V30W
MAX.
1
2
V
1
0
L80
EYE
DISPLAY
MEMORY
PFS
ON
RECALL
Z
-
RESET
BRIGHTNESS
R100
L100
FOCUS
1. Set the EXTERNAL switch on the back of the
power supply to “ON”.
2. Turn on the power supply by pressing the “I”
side of the POWER switch on the power
supply.
3. Turn on the Ti-E microscope by pressing the
“ON” side of the POWER switch on the back
of the microscope.
The Ti-E microscope is turned on, and the
current status is displayed on the status display
panel.
4 Turn on the lamp by pressing the dia
illumination lamp ON/OFF switch on the left
side of the microscope.
The display content of the status display panel
can be switched between the following three
screens by pressing the DISPLAY switch. Switch
the screen as necessary to display the
information required for the operation.
 Display content of the status display panel
Z:____0.000um
E100_ Coarse
• Upper: Z-axis position
• Lower: Optical path | Focus knob resolution
____________10x/0.25
E100_ Coarse__PFS:Out
• Upper: Objective data
• Lower: Optical path | Focus knob resolution | PFS
___10x_ Z:____0.000um
E100_ Coarse__PFS:Out
• Upper: Magnification | Z-axis position
• Lower: Optical path | Focus knob resolution | PFS
* Additional display patterns will become available when
using motorized option devices. For details of the display
content, refer to the instruction manual provided with Hub
Controller A.
1-1
1-2
1-3
1-4
2-2
2-1
2-4
2-3
