Chapter 1 Part Names

1.7 Condenser

1.7.1 TI-C Condenser Turret (System Condenser)

The TI-C Condenser Turret allows you to attach various optical elements to a turret and select them as

necessary for different microscopy methods. This type of condenser is referred to as a “system condenser”.

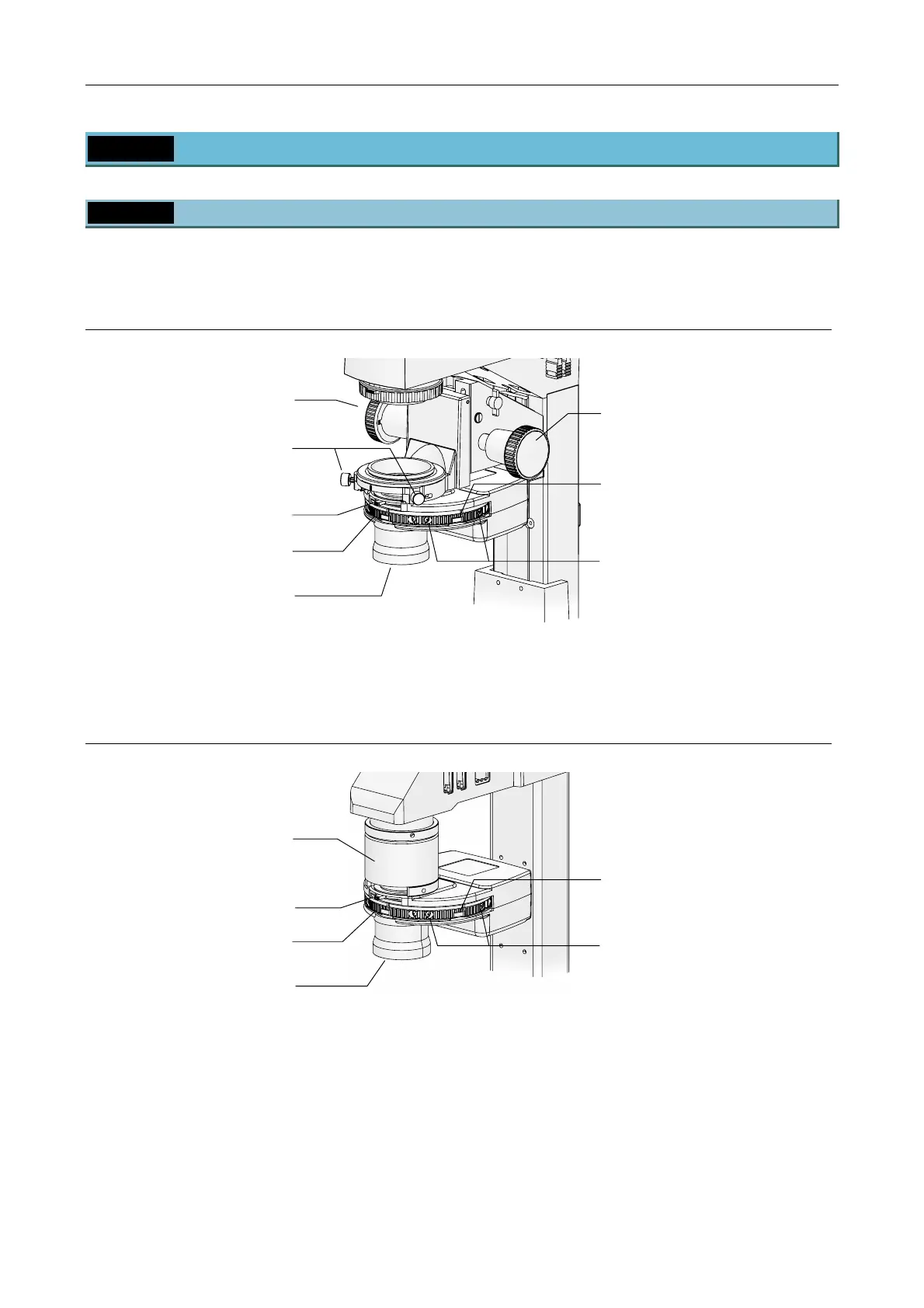

System condenser (mounted on TI-DH Dia Pillar Illuminator 100W)

Figure 1-23 TI-C Condenser Turret

(mounted on TI-DH Dia Pillar Illuminator 100W)

System condenser (mounted on TI-DS Dia Pillar Illuminator 30W)

Figure 1-24 TI-C Condenser Turret

(mounted on TI-DS Dia Pillar Illuminator 30W)

* The system condenser can be mounted on the TI-DS Dia Pillar Illuminator 30W for HMC observation only.

Condenser focus knob

Condenser centering knob

Condenser lens

(4 types: ELWD, LWD,

HMC, and CLWD)

Condenser cassette clamp screws

(both sides of cassette)

Condenser turret

Condenser cassettes

(Ph condenser cassettes have

phase contrast ring centering

screws on the sides.)

Aperture diaphragm

open/close leve

Condenser holde
