Chapter 1 Part Names
1.2 Microscope Base
15
1.2.2 Operation Panels
Front operation panel
L80
EYE
DISPLAY
MEMORY
PFS
ON RECALL
Z
-
RESETBRIGHTNESS
R100L100
FOCUS
1X
1.5X

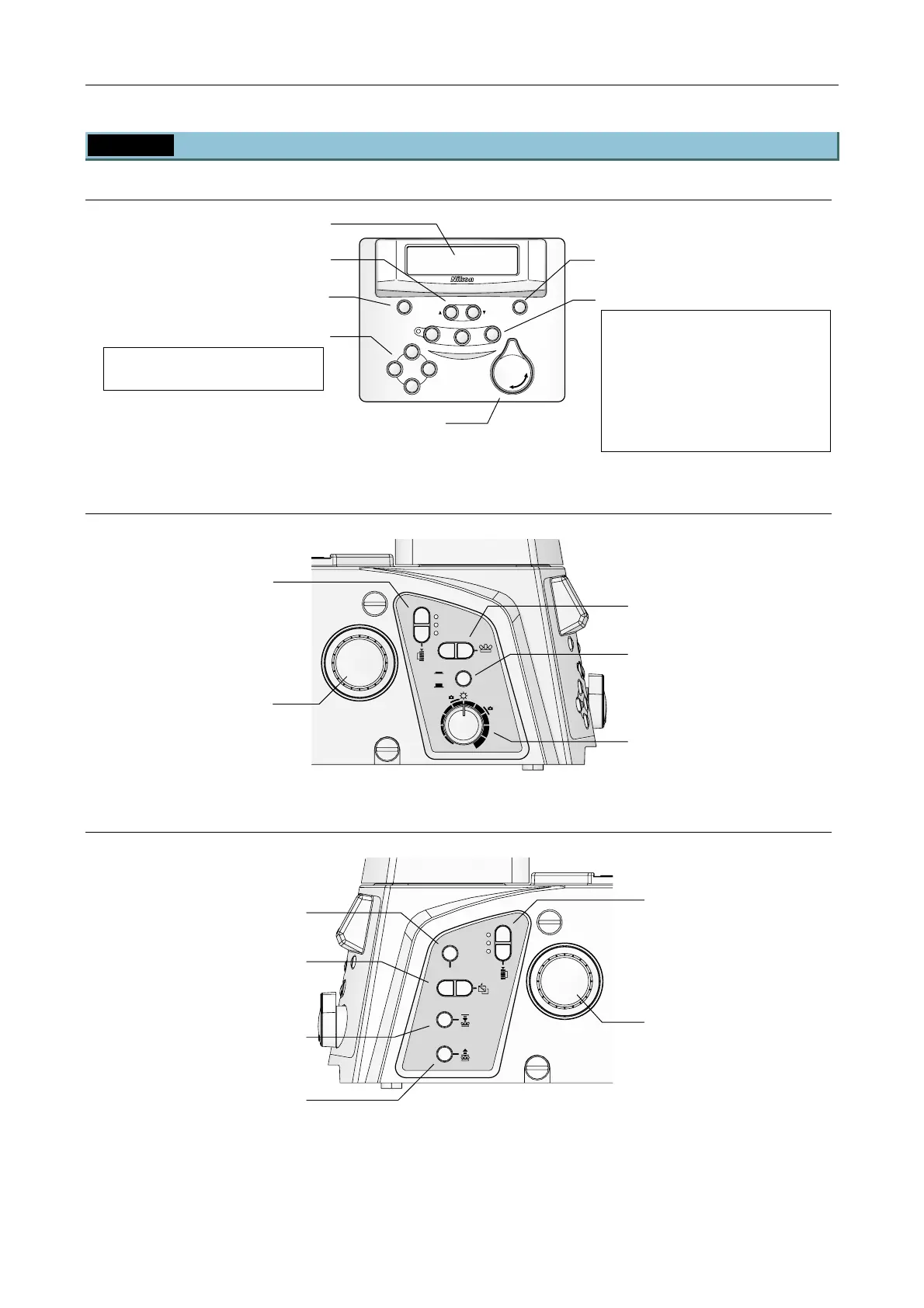

Figure 1-5 Front operation panel
Left operation panel
Coarse
Fine
ExFine
Obj.
ON
OFF
6V30W
MAX.MIN.
12V100W
Figure 1-6 Left operation panel
Right operation panel
Coarse
Fine
ExFine
Epi Shutter
FL Block
Refocus
Escape
Figure 1-7 Right operation panel
Z-RESET switch
(Z-axis position reset)
Intermediate magnification selector dial
(1.5X ↔ 1X）
Optical path selector switches/indicators
• Ti-E : EYE, L100, R100, L80
• Ti-E/B : EYE, L100, R100, B100
BRIGHTNESS switch
(display brightness selector)
Status display panel (20x2)
DISPLAY switches
(display item selector)
Obj. switch
(objective selector)
Coarse/Fine/ExFine
switch/indicato
r
(focus knob resolution
selector/indicator)
Dia illumination lamp
ON/OFF switch
Dia illumination lamp
brightness control knob
Focus knob
Epi Shutter switch
(epi illumination shutter operation)
Coarse/Fine/ExFine
switch/indicator
(focus knob resolution
selector/indicator)
Focus knob
FL Block switch
(filter block selector)
Refocus switch
(objective refocusing)
Escape switch
(objective retraction)
PFS control switches/indicators
• FOCUS indicator
(PFS function status)
• PFS-ON switch
(PFS ON/OFF selector/indicator)
• PFS-MEMORY switch
(offset memory/indicator)
• PFS-RECALL switch
(offset recall)
