Nikon Eclipse Ti-E User Manual

Chapter 4 Assembly
90
Required tools
• 2 mm hex screwdriver (x2) (included with product)
• 3 mm hex wrench (x1) (included with product)
• 4 mm hex screwdriver (x1) (included with product)
Installation conditions
Refer to the “Notes on Handling the Product” at the beginning of this manual and install the product in an
appropriate location.
Checking the power supply voltage
When using TE-PS30W Power Supply A or TE-PSE30 Power Supply A with the product, check that the input
voltage indicated on the power supply device matches the power voltage in your area. If the voltages do not
match, do not use the power supply, and contact Nikon. Use of a power supply with the incorrect voltage
rating may result in malfunctions, electric shock, or fire.

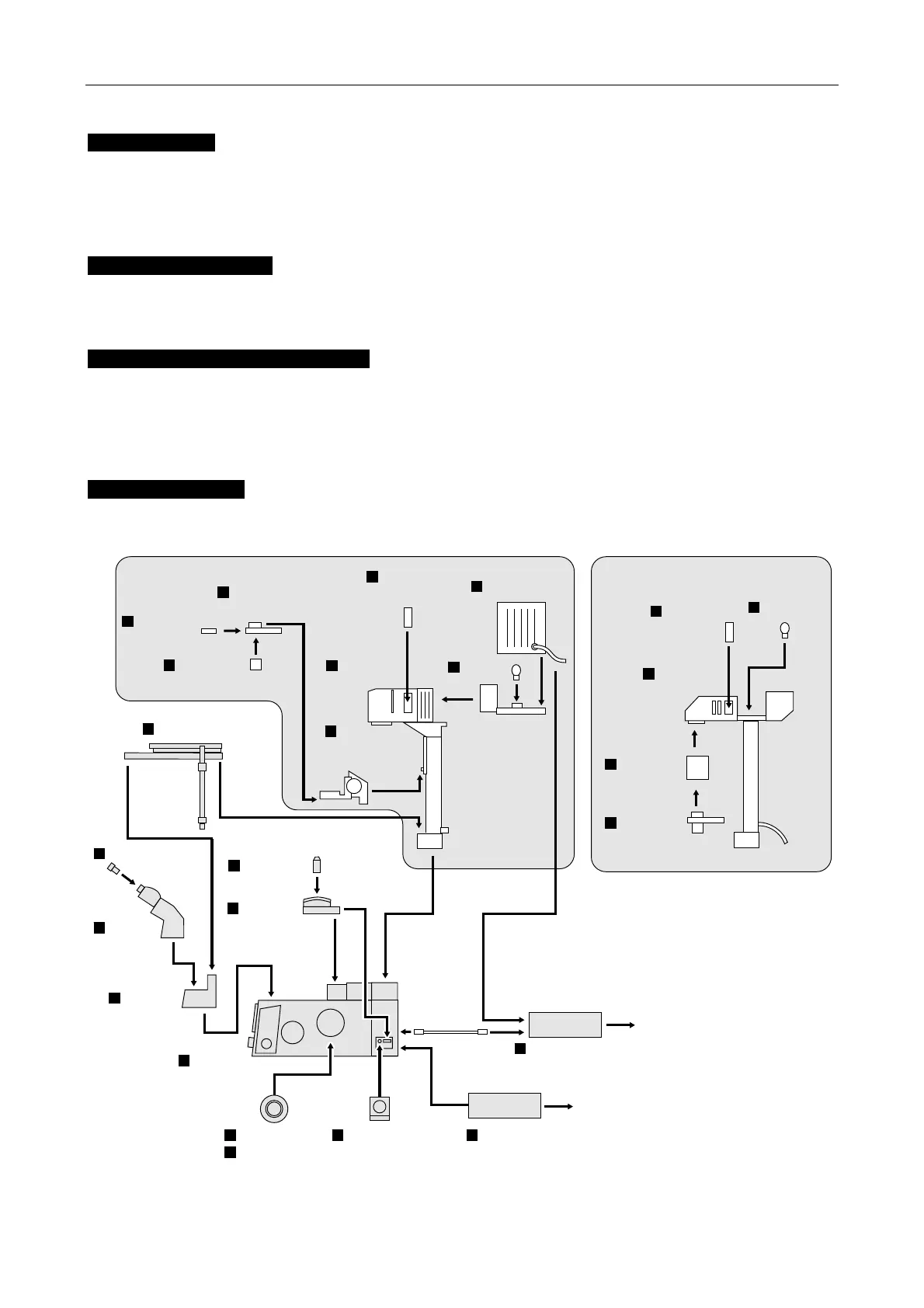

Assembly diagram
Stage
Eyepiece
tube
Eyepiece
base unit
Power supply device
To a wall outlet
To a wall outlet
Nosepiece
Objective
Eyepieces
Main body
(microscope base)
TI-DH Dia Pillar Illuminator 100W and
system condenser configuration
TI-DS Dia Pillar Illuminator 30W and
ELWD-S Condenser configuration
AC adapterPFS offset
controller
Side port
Bottom port
Condernser
Dia pillar
illuminator
Filter
slider
Condenser
holder
Lamp
Condenser
turret
Lamphouse
Dia pillar
illuminator
Condenser
cassette
Condenser
lens
Condenser
holder
Filter
slider
Lamp
1
5
5
2
3
3
4
5
10
10
10
5
6
6
7
8
9
9
10
10
11 14 15
13
12
Figure 4-1 Assembly diagram
