122Service Manual – SC6000 38 - Squeegee System
Removal and Installation

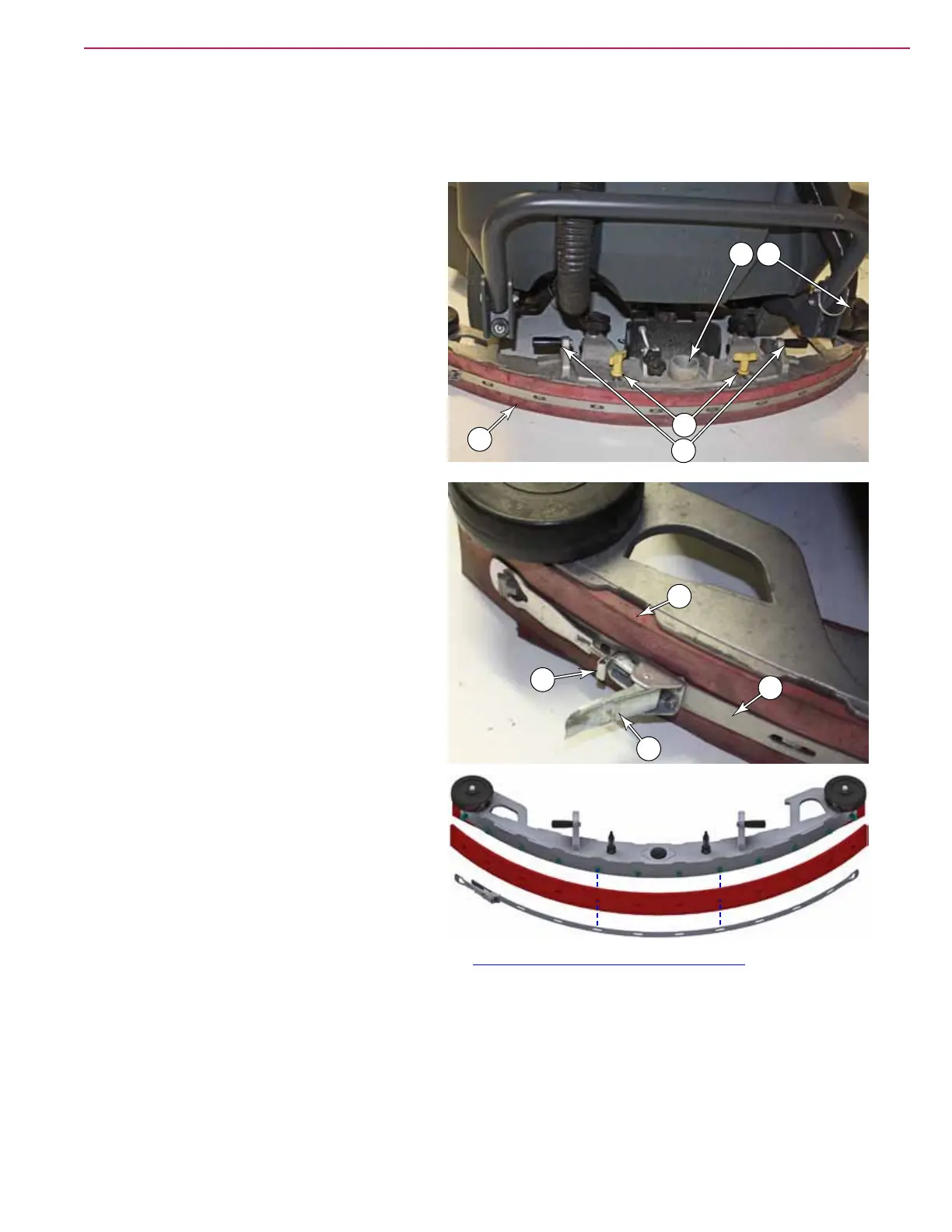

Rear (main) Squeegee Blade Reversal or Replacement
1. Remove the suction hose from the squeegee
body and move the hose off to the side (A).
2. Loosen the two thumbscrews (B) that secure
the squeegee assembly to the machine, and
remove the squeegee assembly.
3. Press forward on the latch release (B) and
lift up on the latch handle (A), and remove
the retaining strap (D).
4. Lift the rear squeegee blade (C) off the
squeegee body.
• The squeegee can be rotated and/or ipped
3 times to expose a new edge (4 edges total)
to the lower-front. If all 4 edges are worn,
replace the squeegee blade with a new one.
5. To replace the blade, align the slots in the
blade with the tabs on the squeegee body.
6. Replace the retaining strap and close the
latch.
7. Place the squeegee on a at surface and
examine the blade for gaps. Readjust the
blade as necessary.
8. Reinstall the squeegee assembly and perform the Squeegee Height and Tilt Adjustment described on
page 119.
A
A
B
C
D
B
A
C
D
