73Service Manual – SC6000 24 - Electrical System

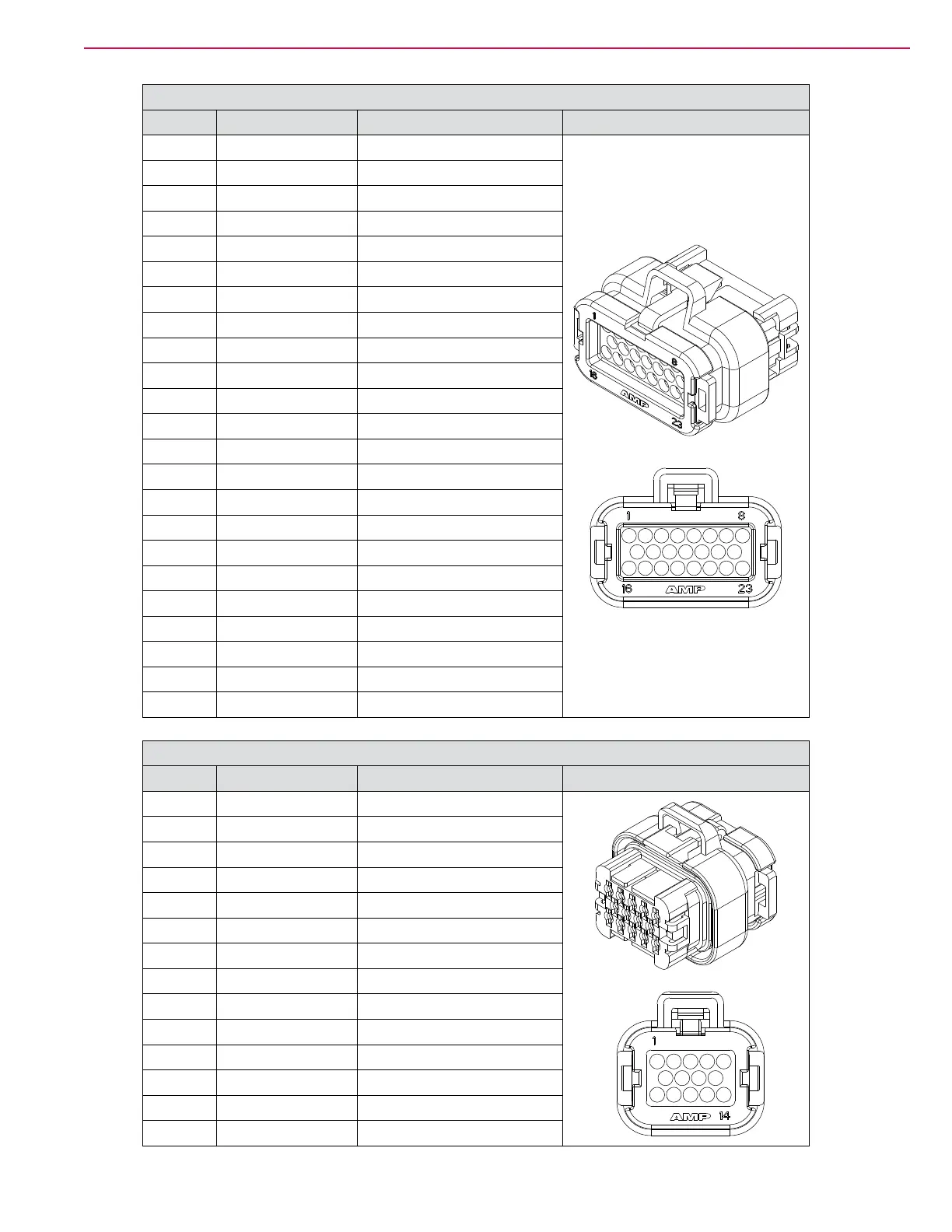

Main Control Board J2 Connector
Pin # Name Wire Color, ID
J2-1 Telemetry CAN-H YEL,W232 (twisted)
J2-2 Telemetry CAN-L GRN,W233 (twisted)
J2-3
J2-4 SmartKey GND BRN,W185
J2-5 SmartKey Signal WHT,W220
J2-6 Bat- BLK,W148
J2-7
J2-8 Float Switch Sensor WHT-ORN,W191
J2-9 Side Sweep Sensor BLU-BRN,W186
J2-10 Level 1 Sensor BLU,W187
J2-11 Main CAN-L GRN,W195 (W196/W197)
J2-12 Main CAN-H YEL,W192 (W193/W194)
J2-13 Level 2 Sensor WHT,W188
J2-14 Level 3 Sensor YEL,W189
J2-15 Level 4 Sensor RED,W190
J2-16 Horn Switch In YEL-RED,W199
J2-17 BoP Switch In ORN-RED,W198
J2-18 Solution Switch In TAN-WHT,W200
J2-19 USB VBUS RED,W204
J2-20 USB DM WHT,W203
J2-21 USB DP GRN,W202
J2-22
J2-23 USB GND BLK,W221
Power Module J3 Connector
Pin # Name Wire Color, ID
J3-1 Deck Actuator - ORN-GRA,W013
J3-2 K2 Coil Out BRN,W019
J3-3 CAN Bus-L GRN,W196
J3-4 CAN Bus-H YEL,W193
J3-5 Curtis Prog +15V ----
J3-6 Deck Actuator + BLU-GRA,W014
J3-7 Curtis Prog RX ----
J3-8 Curtis Prog TX ----
J3-9 KSI In BLU-RED,W247
J3-10 Opt. Pump + WHT-BLK,W225
J3-11 Opt. Pump - BLU-ORN,W170
J3-12 Bat- BLK,W122
J3-13 Squeegee Act. + TAN-BLU,W011
J3-14 Squeegee Act. - BLK-GRA,W010
