123Service Manual – SC6000 38 - Squeegee System

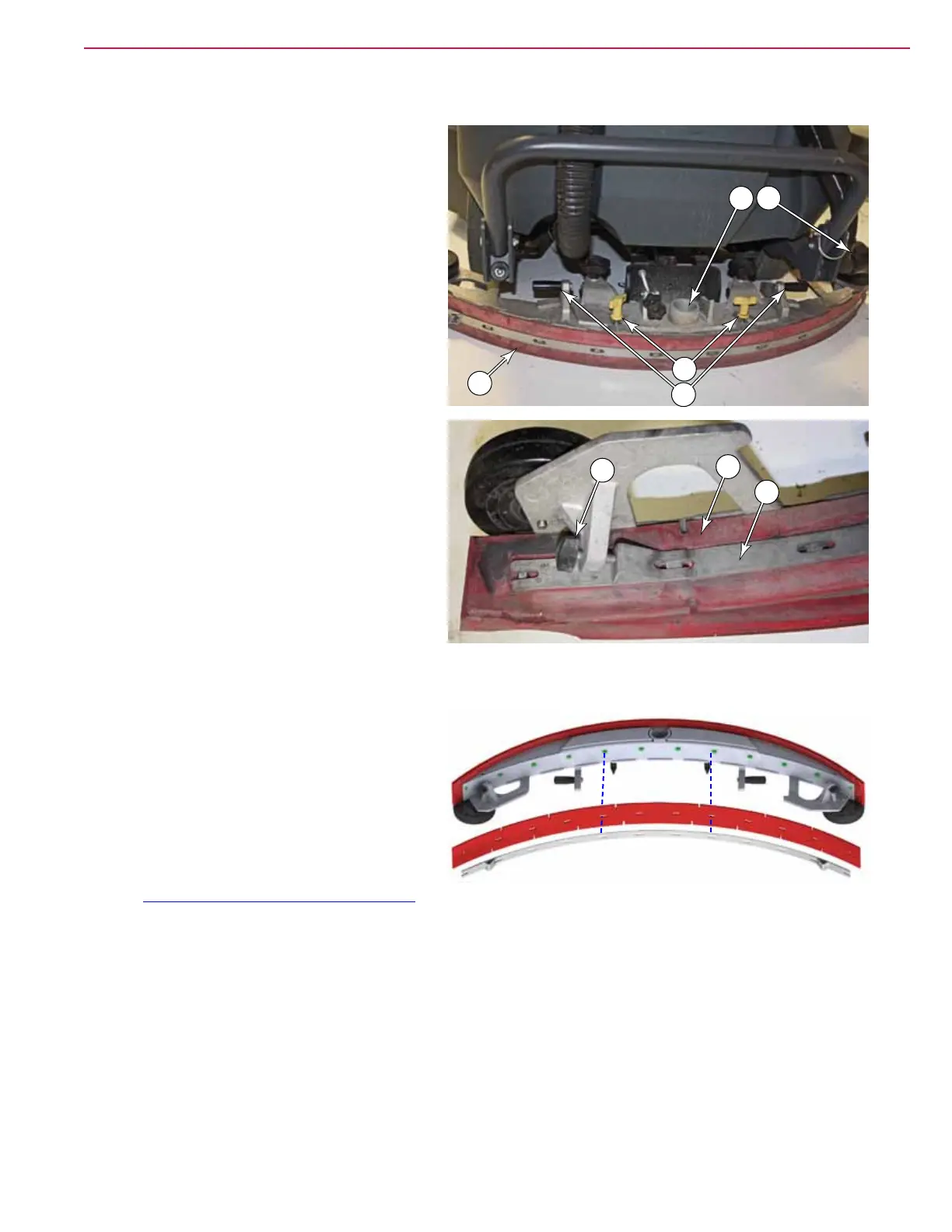

Front Squeegee Blade Reversal or Replacement
1. Remove the suction hose from the squeegee
body and move the hose off to the side (A).
2. Loosen the two thumbscrews (B) that secure
the squeegee assembly to the machine, and
remove the squeegee assembly.
3. Loosen the clamping thumbscrew (E) that
compresses the retaining strap (F) against
the squeegee blade (G)
and squeegee body.
4. Lift the center of the retaining strap (F)
away from the tabs on the squeegee body,
and slide it out from below.
5. Lift the front squeegee blade (G) off the
squeegee body.
• The squeegee can be rotated and/or ipped
3 times to expose a new edge (4 edges total)
to the lower-front. If all 4 edges are worn,
replace the squeegee blade with a new one.
6. To replace the blade, align the slots in the
blade with the tabs on the squeegee body.
7. Reinstall the retaining strap (F) in the
reverse process from removing it.
8. Tighten the thumbscrews (E) to press the
retainer against the squeegee blade.
9. Reinstall the squeegee assembly and perform
the Squeegee Height and Tilt Adjustment
described on page 119.
A
A
B
C
D
E
F
G
