124Service Manual – SC6000 38 - Squeegee System

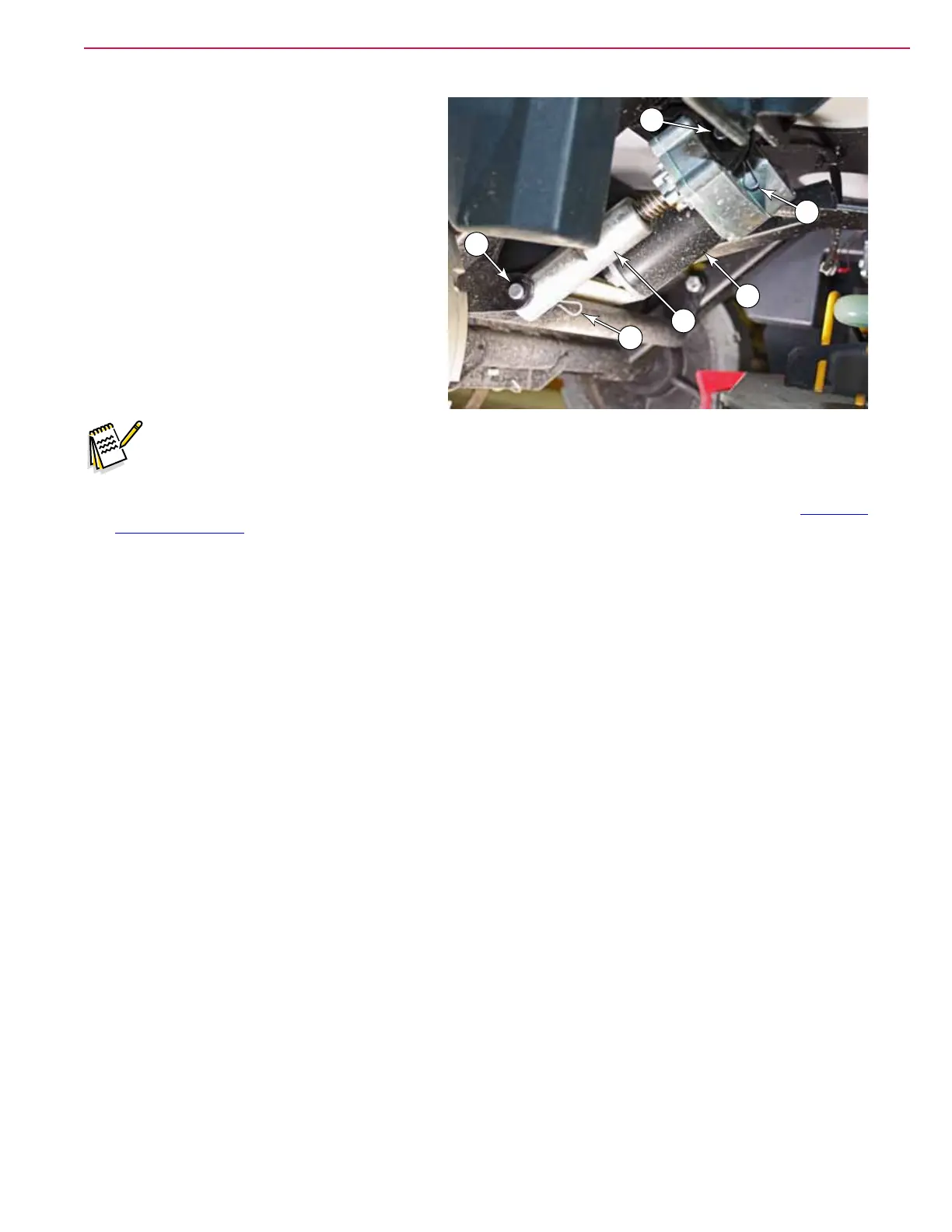

Squeegee Lift Actuator
1. Before turning off the machine,press the
vacuum switch to lower the squeegee to the
oor, then press the E-stop button to shut
down all motors.
2. With the E-stop active and without turning
the machine off, disconnect the battery
connector under the operator’s seat. This will
cause the squeegee to remain lowered.
3. Disconnect the actuator electrical connector.
4. Remove the two retaining clips (D) from the
pivot pins (C), and remove the pivot pins.
Note: If the actuator is being removed for a reason other than replacement, do not allow the
leadnut (B) to rotate with respect to the leadscrew. As long as the leadnut does not rotate,
you can reinstall the actuator without performing the limit adjustment.
5. For a new actuator or if the nut was repositioned with respect to the gear housing, perform the Actuator
Limit Adjustment described on page 120.
6. Reinstall the actuator on the machine by reversing the procedure steps.
D
C
D
C
A
B
