18Service Manual – SC6000 04 - Control System
Power Module
As the name suggests, the power module handles the high-power output functions for the machine. It
receives its commands from the main machine controller via the CAN Bus network. The power module
provides basic motor control and protection, but the main machine controller controls the actual operation
commands for the motors.
The power module receives its logic power from the KSI relay, which is controlled by the main machine
controller. The power module has control of its own high-power input from the K2 relay. Unlike the
drive module, the power module has no direct inhibit input signals (i.e. seat switch or E-stop), except by
commands on the CAN Bus.
The power module has 2 types of outputs. The higher power outputs are non-reversing PWM control. The
lower power outputs are reversing PWM control. The power module is capable of monitoring the output
amperage from each of the outputs, and reporting this information to the main machine controller via the
CAN Bus.

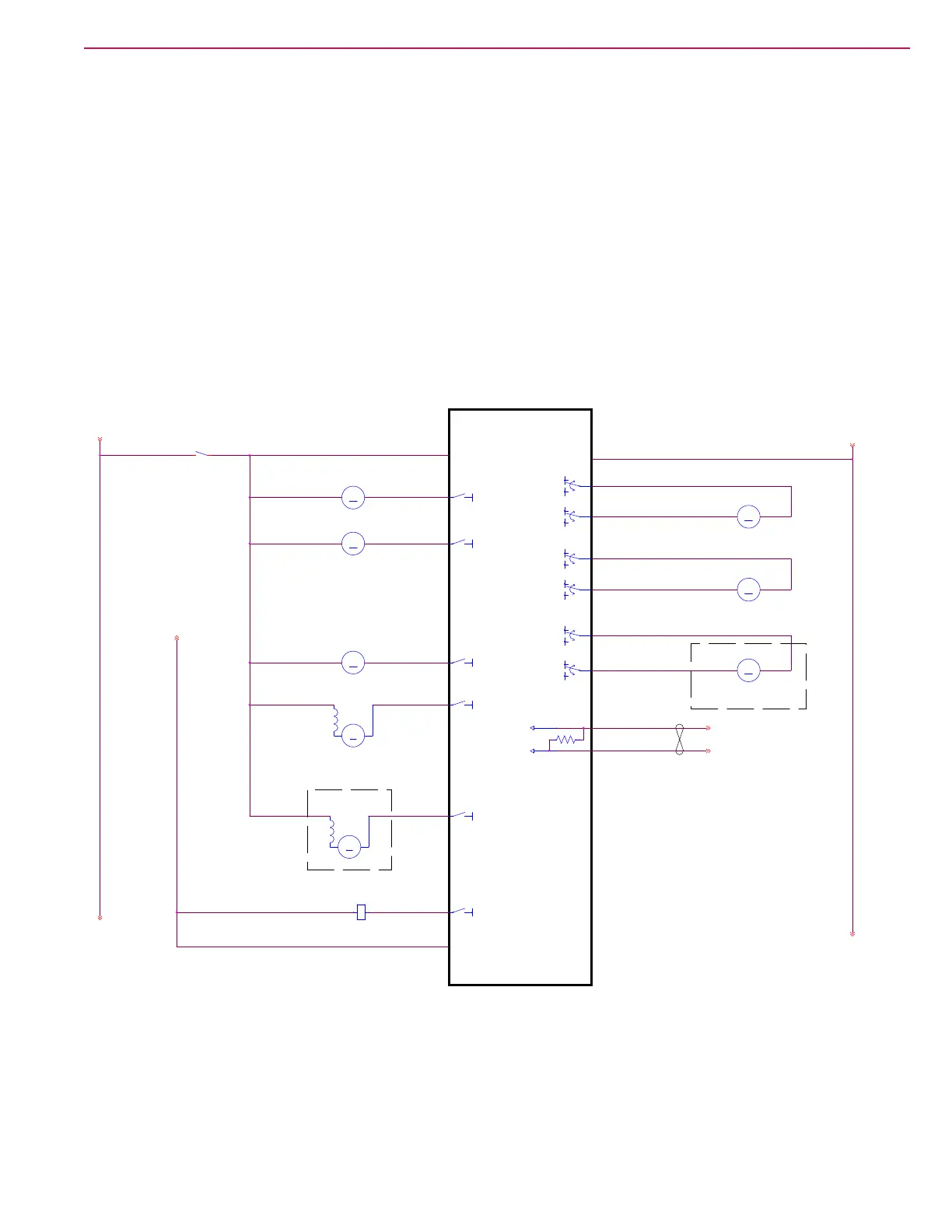

B-
J3-14
CAN1 H
CAN1 L
B+
J3-13
J3-4
J3-6
J3-3
J3-1
E3
POWER MODULE
OPTION
KSI
J3-10
J3-11
J3-2
RIGHT DECK BRUSH IS
REAR CYINDRICAL BRUSH
LEFT DECK BRUSH IS
FRONT CYLINDRICAL BRUSH
OPTION
J3-9
PWM
PWM
PWM
PWM
(B) TO 1B5
(C) TO 3B1
(I) TO 1B5
(D) TO 1E5
(E) TO 3F1
TO 2C5
PWM
TO 2B2
BLK
YEL
GRN
ORN/GRA
BLU/GRA
BLK
TAN/BRN
BLK/GRA
GRA/RED
ORN/BLU
RED
BLU/RED
WHT/VIO
BLU/GRA
ORN/RED
BRN
BLU/GRA
BLK/YEL
RED
BLU/GRA
BLU/RED
WHT/BLK
BLU/ORN
BLU/RED
BLU/GRA
BLU/GRA
BLU/GRA
B+
B-
B+
B-
KSI
(K) TO 1E2
(M) TO 1E2
B-
B+
B-
K2
POWER MODULE
2
1
M
M10
DUST GUARD PUMP/ WASH PUMP
-
+
M
M4
MOTOR, VACUUM 1
12
B-
B-
M
M2
MOTOR, LEFT BRUSH DISK
-+
M
M1
MOTOR, RIGHT BRUSH DISK
-+
B+
B-
B-
K2
COIL, POWER MODULE
3 4
B+
B-
M
M5
MOTOR, VACUUM 2
1
2
B+
B-
B-
120Ohm
M
M7
DECK ACTUATOR
- +
M
M3
SIDE SWEEP
-+
M
M6
SQUEEGEE ACTUATOR
- +
B-
B+
B-
B+
B-
