70Service Manual – SC6000 24 - Electrical System
Paddle Switches

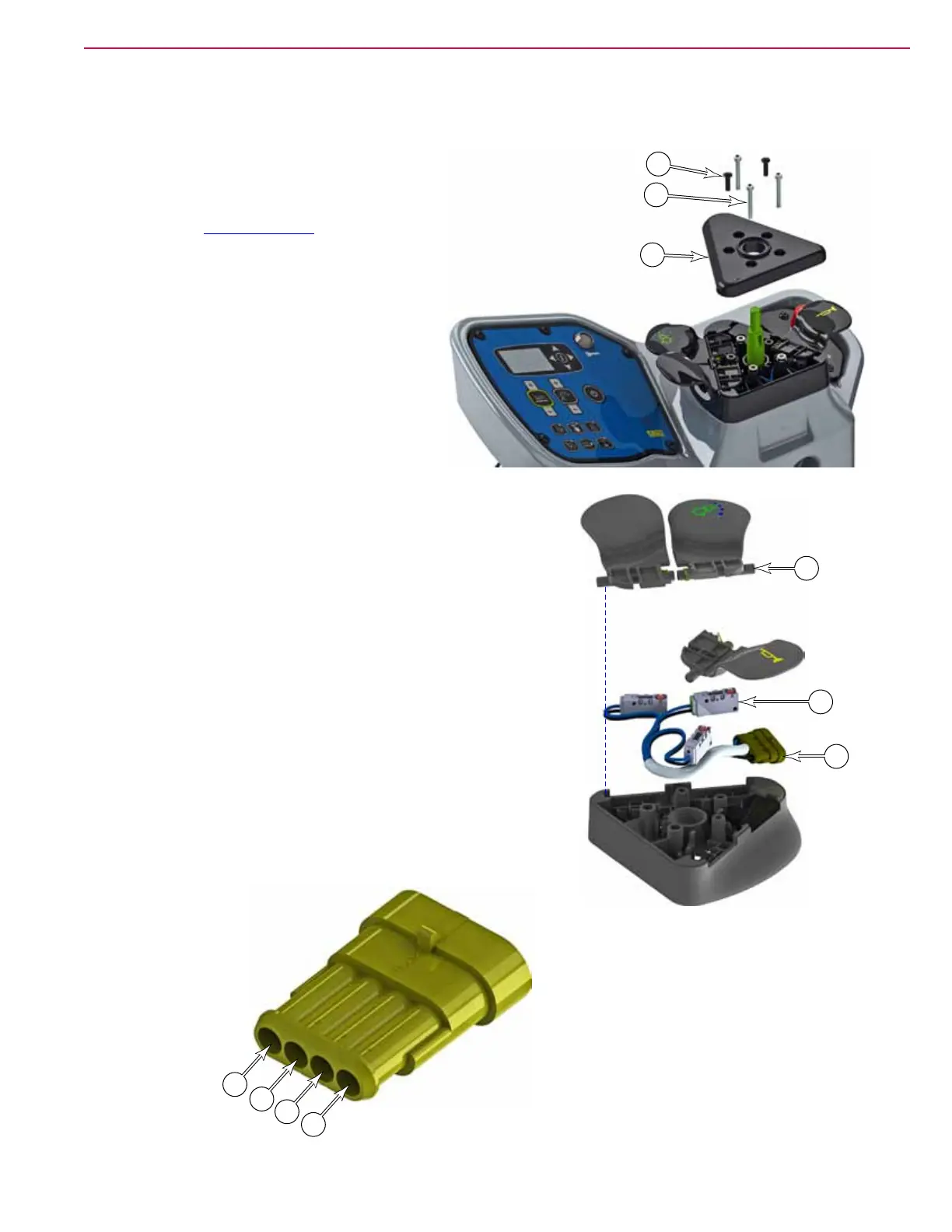

The paddle switches are located below the steering wheel and are connected together as a single harness
assembly.
1. Turn off the machine and disconnect the
main battery connector.
2. Remove the Steering Wheel described on
page 64.
3. Remove the 3 screws and washers (B) that
secure the paddle housing to the steering
column.
4. Lift the paddle housing up and disconnect
the electrical connector (D) below the
housing.
5. Remove the 2 screws (A) that secure the
housing cover (C) to the housing, and
remove the cover.
6. Taking care not to lose the springs, lift out each of the 3
paddles (E) from the housing. Make note of the spring
orientation for later replacement.
7. Lift the 3 switches out of the housing, and free up the wiring
harness to remove them.
8. During replacement, make sure to get the switches into the
correct locations. If necessary, trace the wires back to the
harness connector as described below: (The switches should
also be identied on the wiring harness.)
• 1 = Burst of Power Switch
• 2 = Horn Switch
• 3 = Solution Switch
• 4 = GND to all switches
A
B
C
E
D
F
1
2
3
4
