99Service Manual – SC6000 34 - Scrub System, Disc

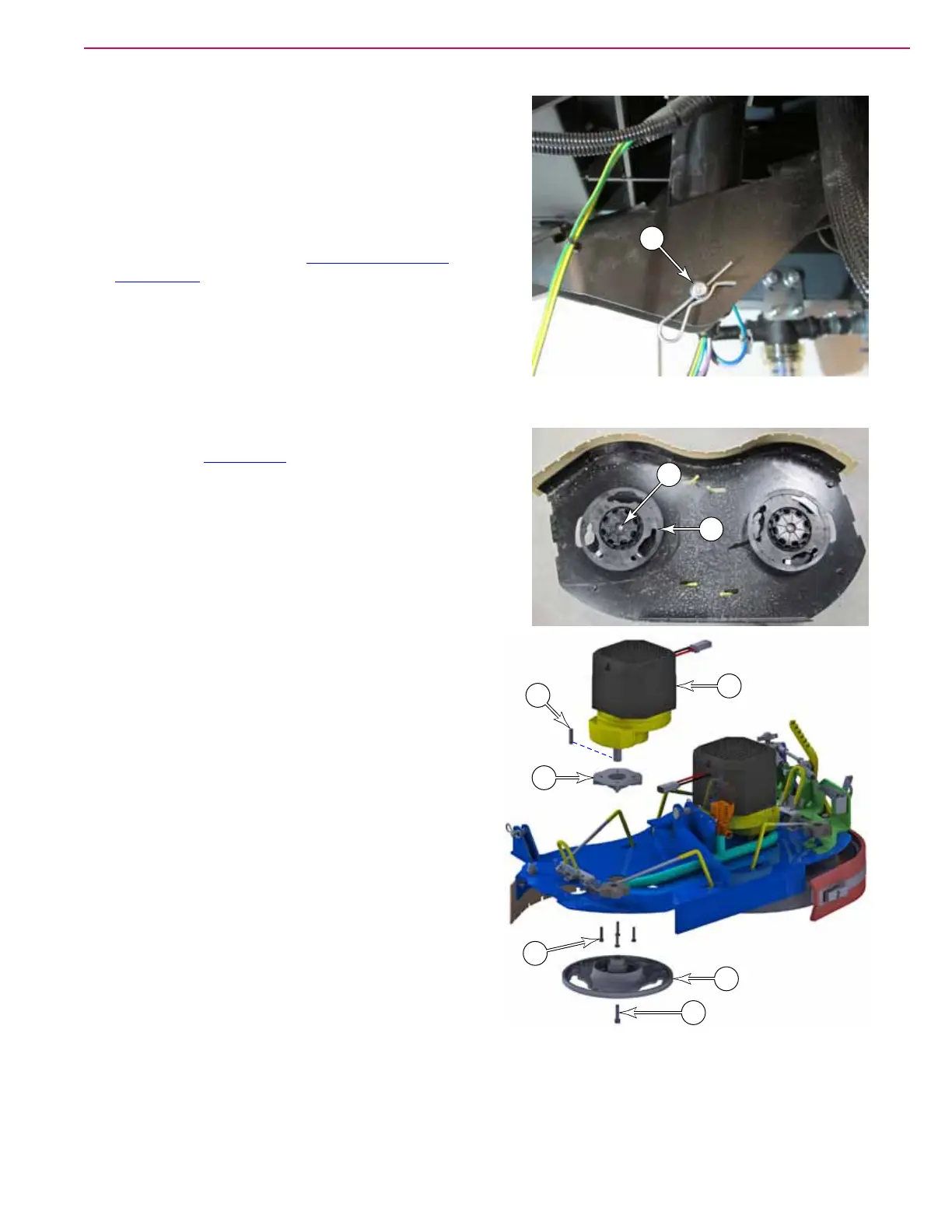

8. Remove the lower retaining clip and pin (F) from the
actuator.
9. Taking care to not rotate the leadnut with respect to the
actuator body, lift the actuator out from above. You may
need to rotate the whole assembly clockwise slightly to
clear the motor-side of the actuator from the battery bay
panel.
10. As necessary, perform the Lift Actuator Limit
Adjustment described on page 94.
Brush Motor
1. Remove the Scrub Deck described on page 97.
2. Remove the brushes or pad holders from the drive hub.
3. Remove the bolt (B) that secures the drive hub to the
motor shaft, and remove the hub (A). Take care not to
lose the key (E) that aligns the hub and shaft.
4. Remove the four bolts (C) that secure the motor to the
deck, and remove the motor (F) and spacer (D).
F
A
B
F
E
A
B
C
D
