68Service Manual – SC6000 24 - Electrical System
Maintenance and Adjustment
Setting Onboard Charger Battery Prole
The machine may be equipped with the optional onboard battery charger. If the charger is just being
installed, or the batteries have been replaced with a different type, it will be necessary to program the
charger to properly charge the batteries according to their type.
Batteries operate on chemical reactions that produce an electrical charge. Charging a battery reverses these
chemical reactions so they can produce power again. Because these chemical reactions are complex, their
reversal is also complex, at least from the standpoint of maintaining good health of the battery. This process
is referred to as a charging algorithm. During the charging algorithm, various stages of the charging process
are handled differently, depending on the chemical makeup of the battery.
Battery charging occurs in various phases, such as an initial charge, to a bulk charge, to an equalization or
gassing phase. During each of these phases, the method and rate of charge is varied to optimize the reverse
chemical reaction. Some may be constant-current, some constant-voltage, and some may be other methods.
The Delta-Q charger is an intelligent charger that incorporates these various charging algorithms for
multiple battery types.
Charging Proles
The Delta-Q charger contains
many charging proles, which are
identied by number. The table to
the right lists those proles that
are applicable to SC6000 battery
system options.
The Delta-Q instruction manual
explains how to set these proles.
There are two options for
programming this information
into the charger.
One option uses a laptop, QuiQ
software, and a special USB
interface connector kit. This method is the easiest, but it does require obtaining the QuiQ Program Kit (Pn
56315732). The QuiQ Program kit will contain instructions for use.
The second option, although more complex, doesn’t require any special tools. It communicates to the charger
by disconnecting the battery terminal and “tapping” the terminal back to the battery to signify which
numerical algorithm code to use. These instructions are included with the charger.

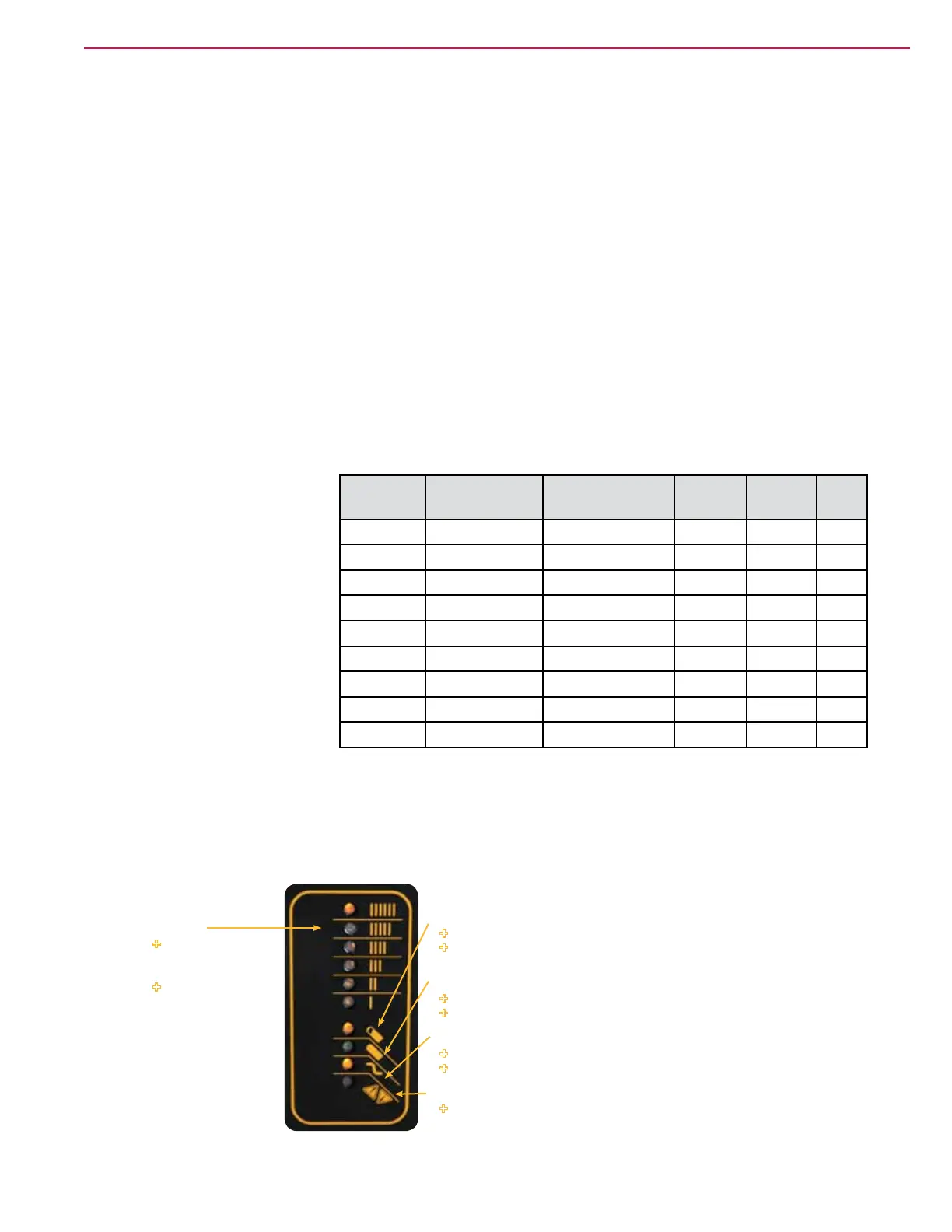

Fault Indicator (Red Light)
Charger error.
If solid: AC power is present.
If ashing: Low AC voltage. Check electrical source and cord length.
AC Indicator
Bulk Charge Indicator
If solid: Bulk charge phase complete (80% charged); in absorption phase.
If ashing: Displays charge prole number if no battery is connected.
Displays charge proles 7 and above.
Charge Completion Indicator (Green Light)
If solid: Charging complete and maintenance mode is active.
If ashing: Absorption phase complete, in nishing phase.
If solid: Displays
scale of output
during bulk phase.
If ashing: Output
has been reduced
due to high internal
charger temperature.
Displays charge
proles 1-6 for 11
seconds if no battery
is connected.
Ammeter
Nilsk
Part No.
Manufacturer Model
Charge
Prole
Voltage
Amp
Hour
56112546 Discover EV305A-A 43 6 312
56112546 Fullriver DC335-6 141 6 335
56388582 Discover EVL16A-A 43 6 390
56388582 US Battery L16HC 73 6 415
56391391 Trojan J-305G 7 6 285
56391391 US Battery US-305 72 6 305
80564000 Exide DF 06V-180A 51 6 180
80564100 Exide DF 06 240 V 12 6 240
80565000 Exide FF 06 255 21 6 255
