72Service Manual – SC6000 24 - Electrical System
Specications
Connector Pinouts

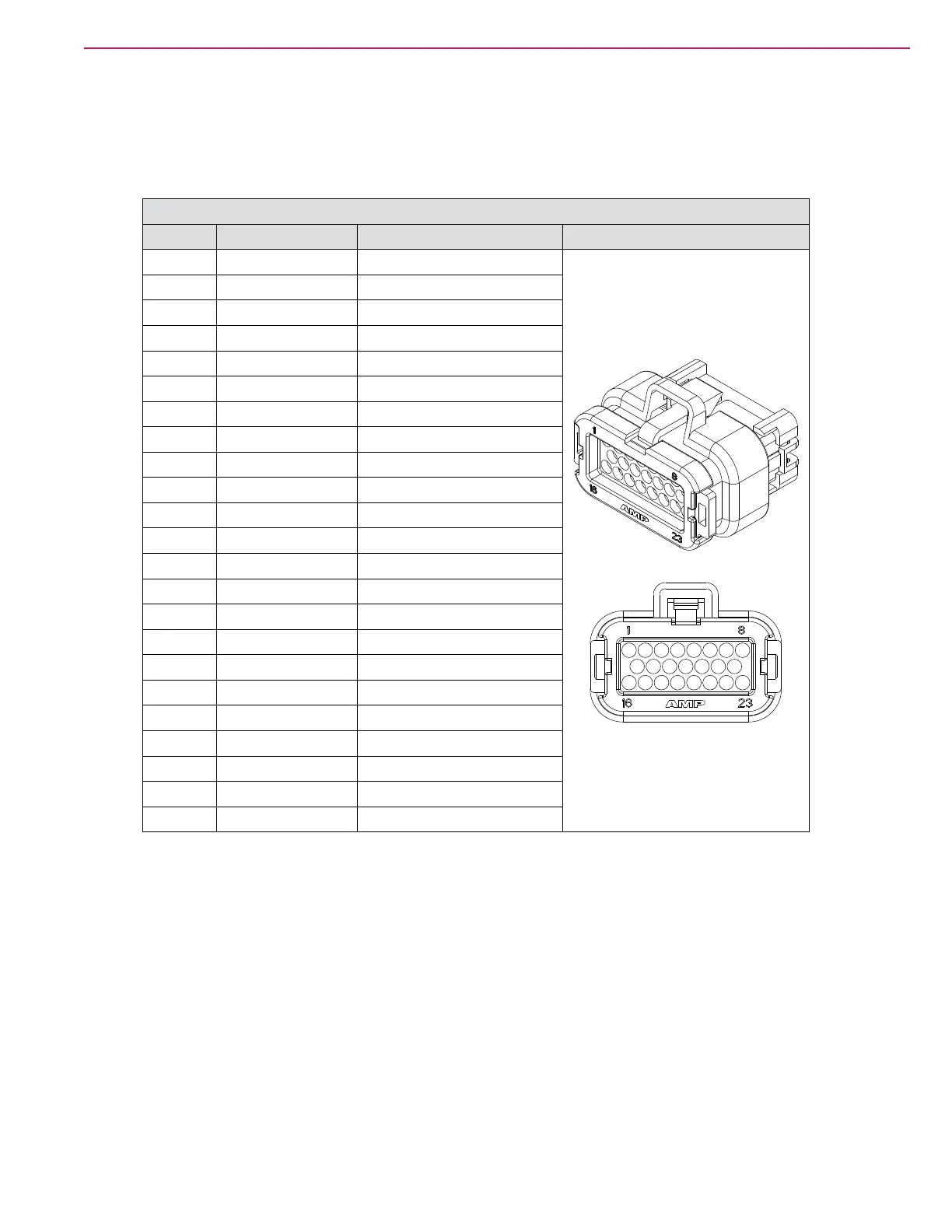

Main Control Board J1 Connector
Pin # Name Wire Color, ID
J1-1 Bat+ YEL-BRN,W159
J1-2 Bat+ YEL-BRN,W160
J1-3 KSI Coil Out ORN-BRN,W162
J1-4 Solution Solenoid GRY-BLK,W163
J1-5 Bat- BLK, W147
J1-6 Bat- BLK, W146
J1-7 --- ---
J1-8 --- ---
J1-9 Headlights BLK, W142
J1-10 E-Stop In ORN,W178
J1-11 Charger Interlock GRN,W245
J1-12 Seat Switch GRN-BLU,W175
J1-13 Dust Guard Sol. YEL-WHT,W164
J1-14 Backup Alarm GRN-BRN,W165
J1-15 --- ---
J1-16 Detergent Pump 1+ GRN-RED,W171
J1-17 Detergent Pump 1- ORN-GRY,W172
J1-18 Detergent Pump 2+ BLU-YEL,W173
J1-19 Detergent Pump 2- RED-WHT,W174
J1-20 KSI In GRY,W167
J1-21 KSI In GRY,W168
J1-22 Horn VIO-BRN,18,W166
J1-23 --- ---
