Combination Fire/Security Applications
$SSOLFDWLRQV
AFP-300/AFP-400 Installation PN 50253:C1 05/22/97 5-9
&RPELQDWLRQ)LUH6HFXULW\$SSOLFDWLRQV
2YHUYLHZ
You can use the control panel as a combination Fire/Security and Security system when
operated according to the instructions in this section.
*HQHUDO2
HUDWLRQ
For security applications, program one or more MMX modules with the Security ALA
type code, and wire as shown in Figure 5-10. Activating this type of MMX module
lights the Security LED, and displays a security alarm condition on the control panel
LCD. The panel sounder will soun
d until you press <Acknowledge>. Y
o
u can also
program additional sounders or output devices to activate with the security alarm
initiating device. The Security ALA type circuit is designed to indicate an alarm as
follows: (a) on an open or short circuit; or (b) on a ±50% change in resistance value
from the end-of-line resistor value.
A tamper switch installed in the cabinet door will indicate a Door Tamper condition
whenever the door is open. If the control panel indicates a Security ALA condition,
you can acknowledge, silence, or reset the condition from the control panel.
When the system resets, a 30-second exit timer starts. During this time the tamper
switch and all SECURITY ALA type alarms are ignored. There is no entrance delay
timer.
For bypass of security zones, use the DISABLE routine (covered in the
Status Change
section of the AFP-300/AFP-400 Operations Manual) for Security ALA type devices.
,QVWDOOLQ
D6HFXULW
7DP
HU6ZLWFK
Wire the cabinet with a security tamper switch kit (Figure 5-8). CAB-400AA cabinets
require tamper switch model STS-200; CAB-X3 cabinets require model STS-1.
,QVWDOOLQJ D 6HFXULW\
7DPSHU 6ZLWFK LQWR WKH
&$%$$

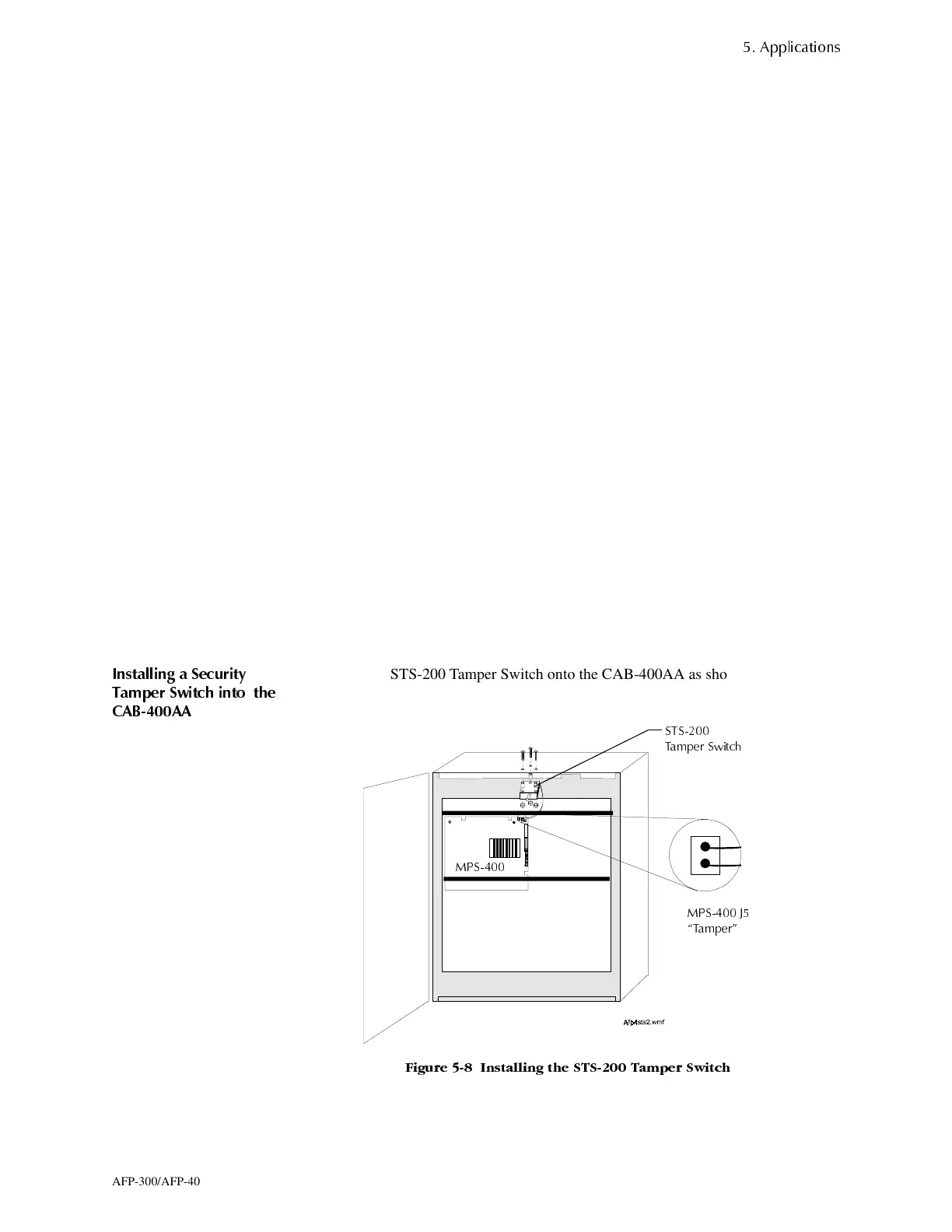

1. Install the STS-200 Tamper Switch onto the CAB-400AA as shown in Figure 5-8.
2. Connect the STS-200 connector to J5 (‘Tamper”) on the MPS-400.
)LJXUH ,QVWDOOLQJ WKH 676 7DPSHU 6ZLWFK
036 -
´7DPSHUµ
036
676
7DPSHU 6ZLWFK
