6\VWHP 2YHUYLHZ
System Components
1-10 AFP-300/AFP-400 Installation PN 50253:C1 05/22/97
$XGLR$PSOLILHUV
The control panel uses three types of audio amplifiers with an installed Voice Alarm
System: the AA-30, the AA-100, and the AA-120.
• AA-30 – The AA-30 Audio Amplifier provides up to 30 watts of audio power for
driving 25 Vrms speaker circuits.
• AA-100 – The AA-100 Audio Amplifier provides 100 watts of audio power for
driving 70 Vrms speakers.
• AA-120 – The AA-120 Audio Amplifier provides 120 watts of audio power for
driving 25 Vrms speakers.
Each AA amplifies the audio signal coming in from an Audio Message Generator
(AMG-1) or Audio Tone Generator (ATG-2).
7UDQVIRUPHU$VVHPEO\DQG0363&$

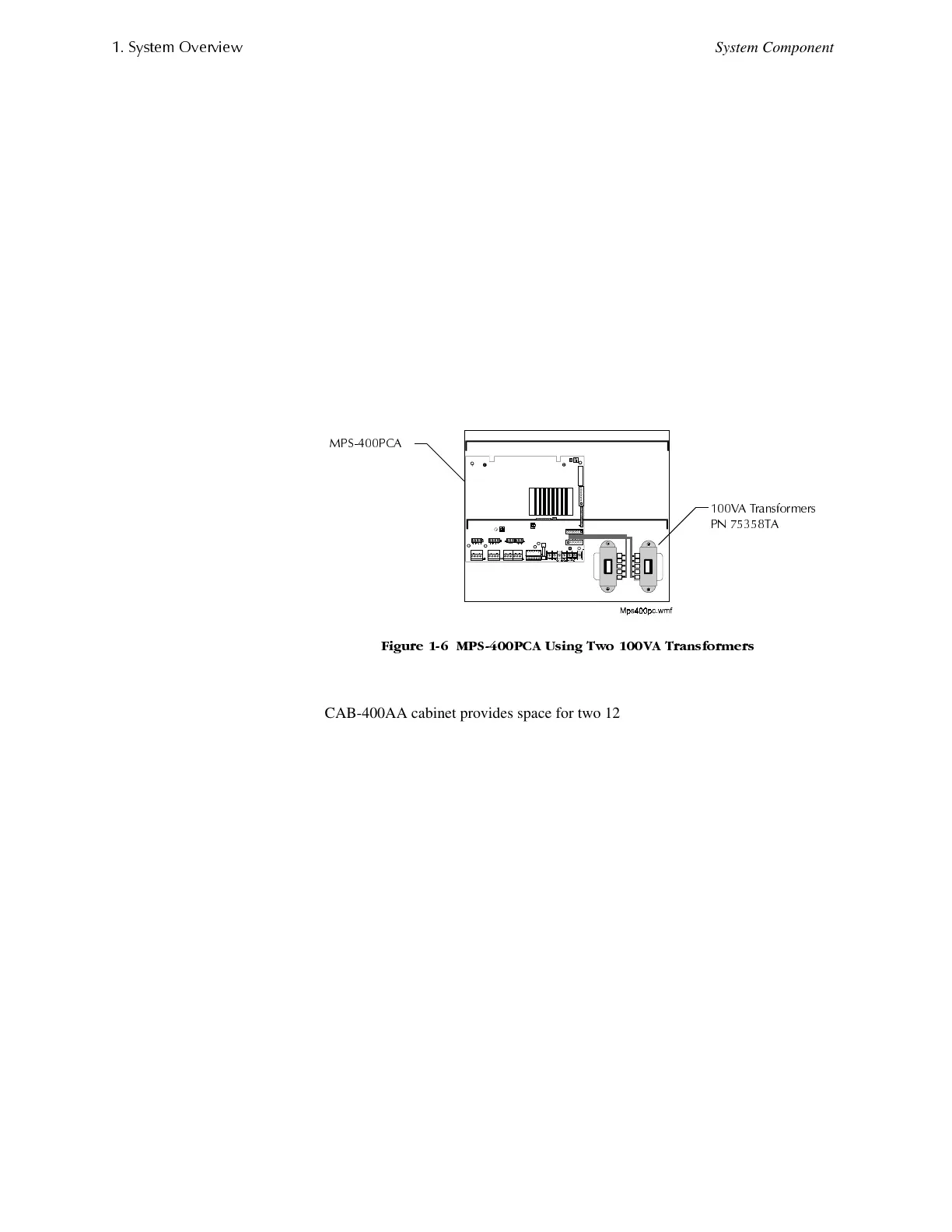

Two 100VA transformers and connectors are used with the MPS-400PCA in the
CAB-400AA.
)LJXUH 0363&$ 8VLQJ 7ZR 9$ 7UDQVIRUPHUV
%DWWHU\%R[HV
The CAB-400AA cabinet provides space for two 12 ampere-hour (AH) batteries.
CAB-X3 cabinets provide space for two 25 AH (or smaller) batteries. Use external
battery boxes if your installation requires larger capacity batteries. Battery boxes
mount directly below the main cabinet. Models of battery boxes are:
• BB-17 battery box – for batteries up to 17 AH.
• BB-55 battery box – for batteries up to 55 AH.
0363&$
9$ 7UDQVIRUPHUV
31 7$
