Notifier AFP-400 Installation Manual

Cabinet Hardware  6\VWHP 2YHUYLHZ
AFP-300/AFP-400 Installation PN 50253:C1 05/22/97 1-21
&$%;6HULHV&DELQHWV
2YHUYLHZ
This section contains mounting information for CAB-X3 Series Cabinets. Each cabinet
assembly includes a door and backbox. The following lists each CAB-X3 Series
cabinet assembly:
• CAB-A3 – one mounting tier
• CAB-B3 – two mounting tiers
• CAB-C3 – three mounting tiers
• CAB-D3 – four mounting tiers
&$%$
An optional TR-A3 trim ring is available for use with an A-size cabinet (24-1/8"W by
22-5/16"H). Replacement parts: DR-A3 door; SBB-A3 backbox.

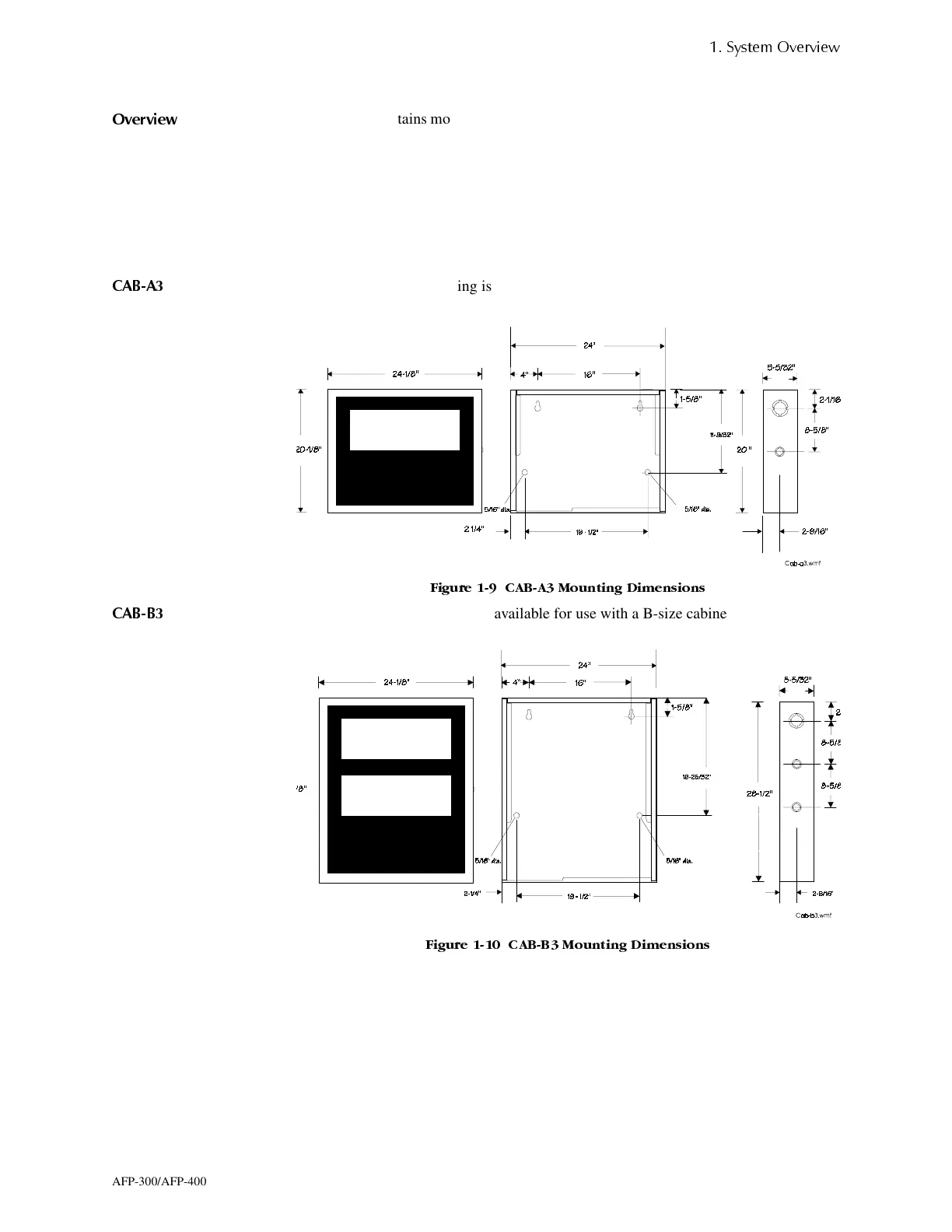

)LJXUH  &$%$ 0RXQWLQJ 'LPHQVLRQV
&$%%
An optional TR-B3 trim ring is available for use with a B-size cabinet (24-1/8"W by
30-13/16"H). Replacement parts: DR-B3 door; SBB-B3 backbox.
)LJXUH  &$%% 0RXQWLQJ 'LPHQVLRQV
