Annunciation Modules
6\VWHP 2YHUYLHZ
AFP-300/AFP-400 Installation PN 50253:C1 05/22/97 1-15
$QQXQFLDWLRQ0RG XOHV
2YHUYLHZ
This section contains brief descriptions and the model numbers of annunciator modules
that can be connected to the control panel. Communication between the control panel
and annunciators takes place over a two-wire serial interface connected to an EIA-485
connector (TB4) on the CPU. For detailed wiring requirements, refer to the
appropriate Annunciator manuals.
$QQXQFLDWRU&RQWURO0RGXOH5$&05

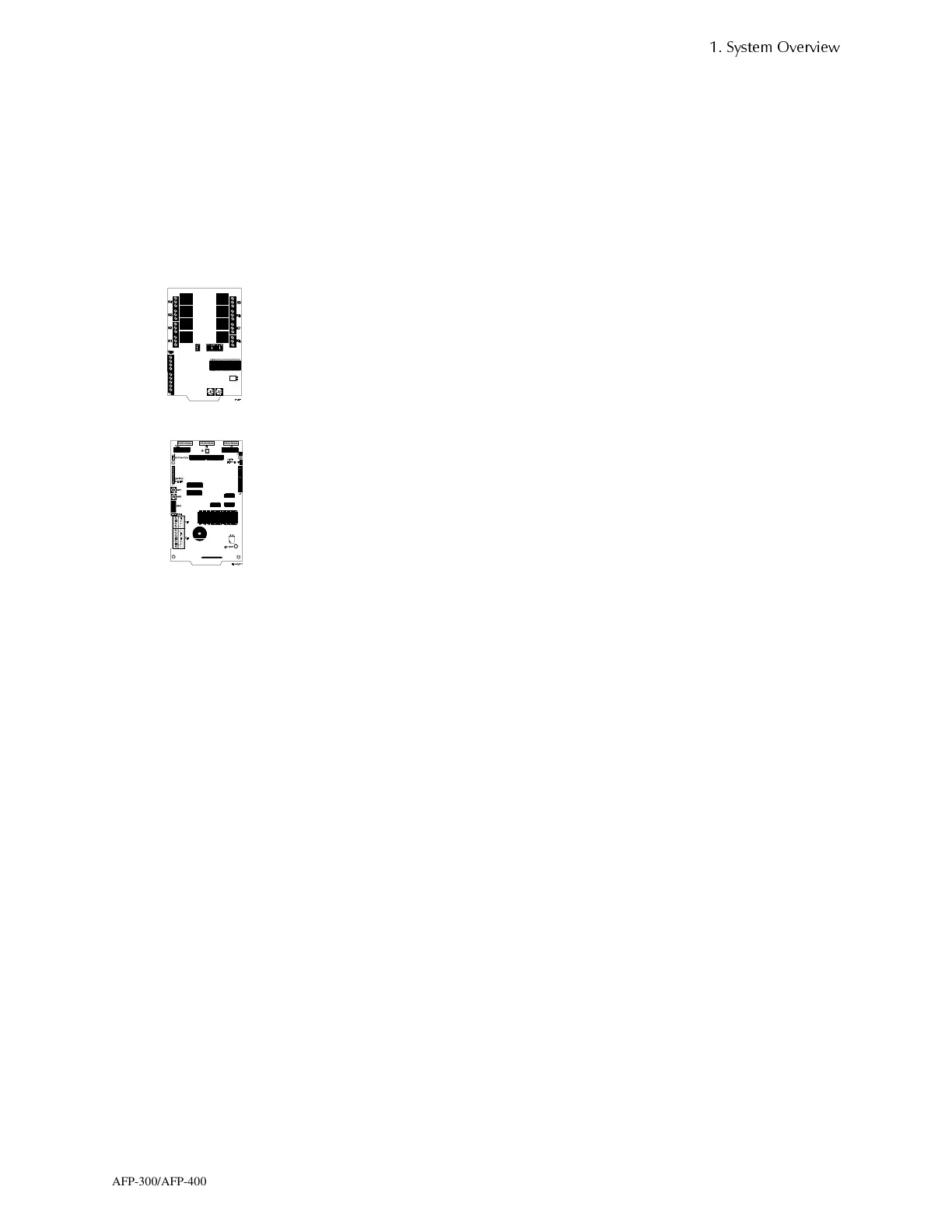

The ACM-8R provides the AFP-300 and AFP-400 with a mappable relay control
module. ACM-8R relays can be selected for mapping anywhere in the system memory
map (in groups of eight). Features of the ACM-8R include the following:
• Provides eight Form-C relays with 5 A contacts.
• Tracks any group of eight zones within the system.
/'06HULHV/DP
'ULYHU0RGXOHV
The LDM-32 Lamp Driver Annunciator Module provides 32 alarm lamp driver outputs
for connection to a custom graphic annunciator. You can also set the LDM-32 with a
DIP switch for 16 alarm, 16 trouble and 16 switch inputs for control of such system
functions as Signal Silence and System Reset.
• Lamp Driver Annunciator Expander Module (LDM-E32) – Expands the LDM-32
by 32 system points, to a maximum of 64 points.
• Relay Expander Module (LDM-R32) – Provides the LDM-32 or LDM-E32 with
32 dry Form-A (normally open) contacts.
