Peripheral Displays and Printers
6\VWHP 2YHUYLHZ
AFP-300/AFP-400 Installation PN 50253:C1 05/22/97 1-17
3HULSKHUDO'LVSOD\VDQG3ULQWHUV
2YHUYLHZ

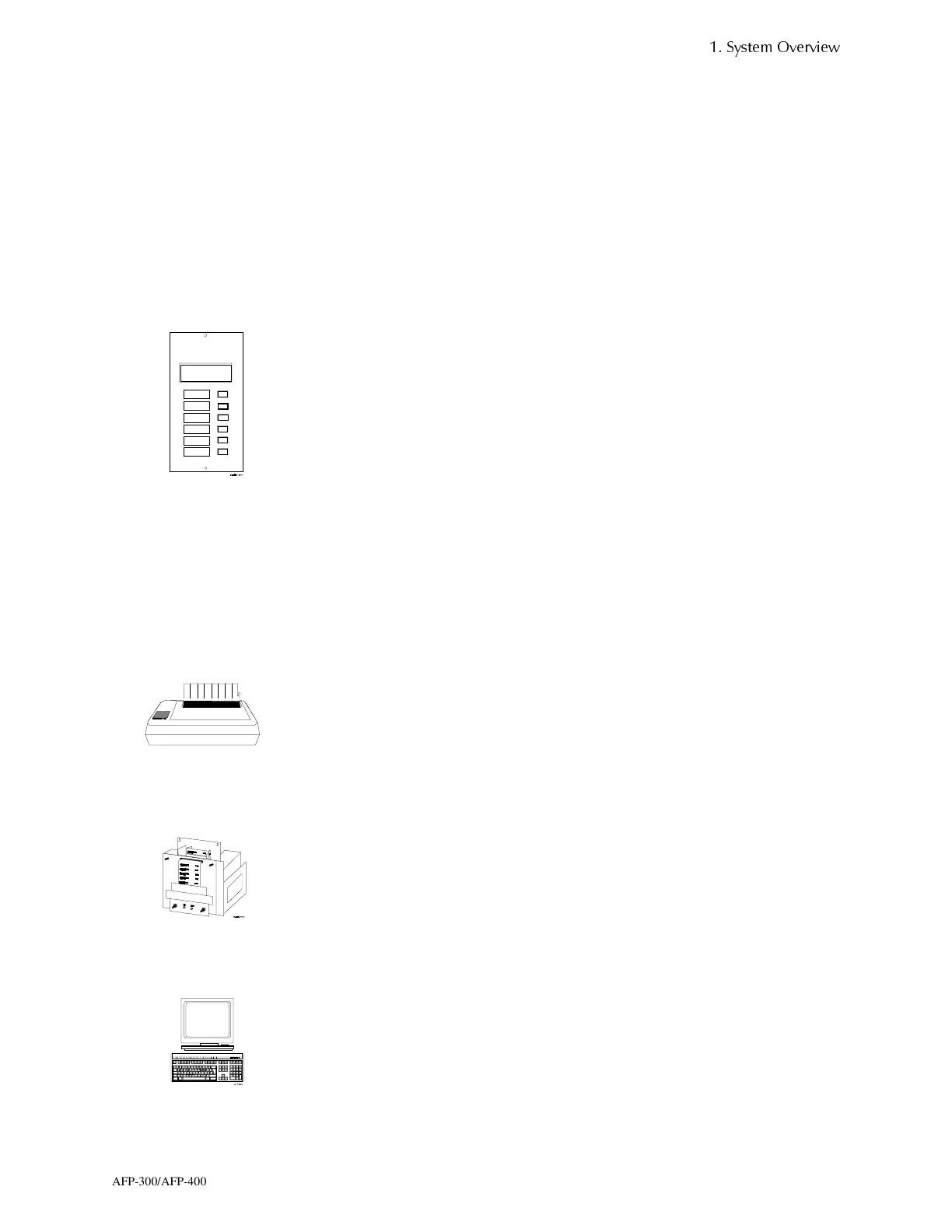

The control panel is compatible with the following printers and display devices:
• LCD-80 display
• PRN-4 printer
• Keltron Remote Printer
• CRT-2 Display Terminal
For installation instructions for these devices, refer to Section 2.
/&''LV
OD
The LCD-80 alphanumeric display module is an AFP-300/400 ancillary device that
provides two modes of operation:
Terminal
, where it acts as a display repeater; and
ACS
, where it acts as an alphanumeric annunciator. The LCD-80 features the
following:
• 80-character LCD display that backlights under normal and alarm conditions.
• Control switches for Acknowledge, Signal Silence, and System Reset, all made
operational by an optional AKS-1 switch.
• Time/date display field.
• Annunciator backbox ABF-1 package with optional AKS-1 key switch and phone
jack options.
• Remote operation (mounts up to 6,000 feet from the control panel).
• Local panel sounder with alarm/trouble resound.
3515HPRWH3ULQWHU
The PRN-4 is an optional printer that connects directly to the control panel through
TB1 on the CPU and can be located up to 50 feet from the control panel. It features the
following:
• Provides a printed record (80 columns of data on standard 9" x 11" tractor-feed
paper) of all system events (alarm, trouble) and status changes within the system.
• Time-stamps the printout with the current time-of-day and date.
.HOWURQ5HPRWH3ULQWHU0RGHO 96
The VS4095 is a two-color (red/black), 40-column 24 VDC that can print 50 messages
in 90 seconds. This printer connects to the control panel through TB1 on the CPU and
mounts in a separate cabinet next to the control panel. The VS4095 meets UL fire and
security requirements for an ancillary device. For more information on the Keltron
printer, contact the manufacturer (Keltron Corp., Waltham, MA). Refer to Section 2 for
installation instructions.
&577HUPLQDO
The optional CRT-2 terminal connects to the control panel via the EIA-485 serial
interface TB2. The CRT-2—can control and view events, points and history reports,
control the system (Acknowledge, Alarm Silence, and System Reset). With a CRT-2
installed, you can also change important system operating parameters, such as enable/
disable of addressable points, change alarm and pre-alarm sensitivities, clear
verification counters, clear history, and set the pre-alarm action level. A CRT-2
displays 26 lines by 80 columns and can be located up to 50 feet from the control panel.
