CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
 Conditions for Communications Applications
You can use the explicit message communications service over the Internet under the following con-
ditions.
• A device such as a personal computer (a CIP application including the Network Configurator) can
connect online and communicate over the Internet with an EtherNet/IP Unit that has a global
address.
• The TCP port number (44818) or UDP port number (44818) that is used for EtherNet/IP cannot be
used because it is prohibited by a firewall in the communications path.
Precautions for Correct UsePrecautions for Correct Use
Network Security and Firewalls
To set a global IP address for an EtherNet/IP Unit involves network security considerations. It is
recommended that the user contract with a communications company for a dedicated line, rather
than for a general line such as a broadband line. Also, be sure to consult with a network special-
ist and consider security measures such as a firewall. After a firewall has been set up by a com-
munications technician, there may be some applications that cannot be used. Be sure to check
first with the communications technician.

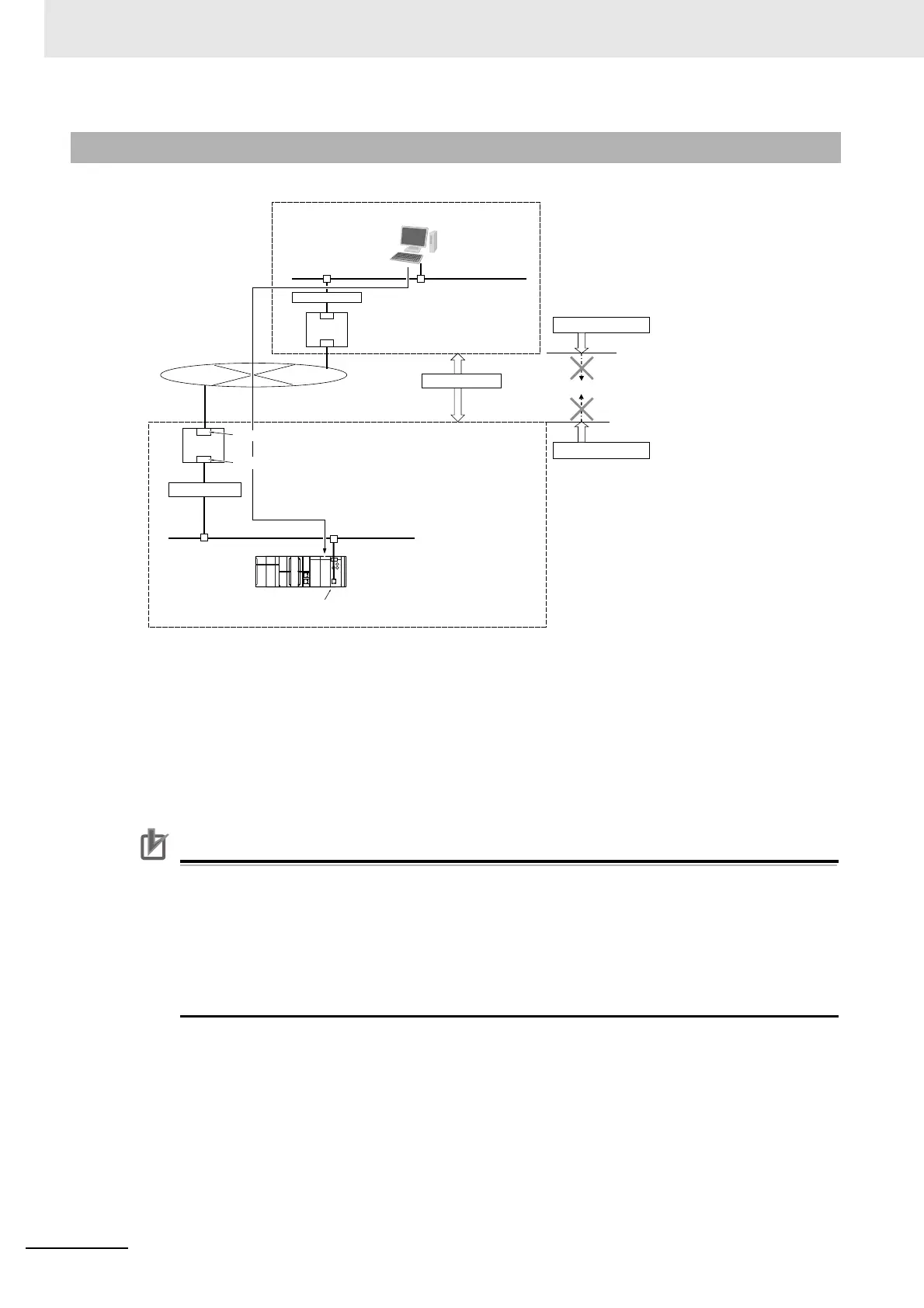

4-3-3 Using a Global Address for the EtherNet/IP Unit
Communications
over Internet
Firewall
Ethernet (EtherNet/IP)
Firewall
IP router
Communications
in intranet
EtherNet/IP Unit: Global address
Private address
Global address
Private address
Cannot connect to Internet
Cannot connect to Internet
Global address
● Internet
● Intranet
Private address
IP router
CIP client on a computer,
such as Network
Configurator
● Intranet
Ethernet (EtherNet/IP)
Controller
(required)
