Omron CJ1W-EIP21 User Manual

8-19
8 Message Communications
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
8-2 Using CIP Message Communications
8

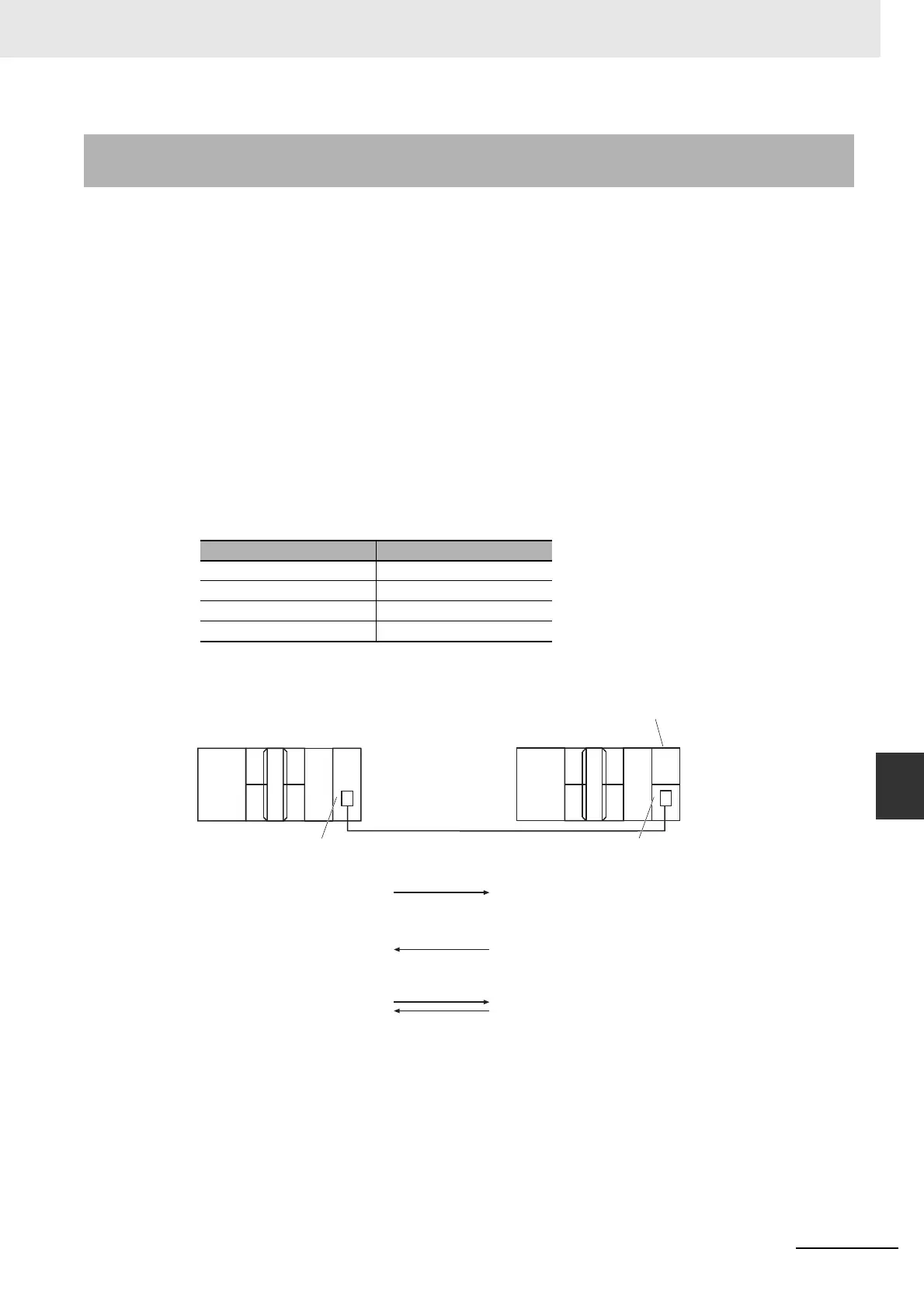

8-2-7 Sample Programming for CIP Connection (Class 3) Message Communications
This sample uses CIP class 3 messages to write a variable, read a variable, and send a message. The
Controllers are connected to an EtherNet/IP network. The IP address of the remote node is
192.168.250.2. The following procedure is used.
1 The CIPOpen instruction is used to open a class 3 connection. The timeout time is 2 s.
2 The CIPWrite instruction is used to write the value of a variable at a remote node. The variable
name at the remote node is WritingDat and the contents of the WriteDat is written to it. Writing-
Dat must be defined as a global variable at the remote node and the Network Publish attribute
must be set.
3 The CIPRead instruction is used to read the value of a variable at a remote node. The value of
the variable OriginalDat at the other node is read and the read value is stored in the ReadDat
variable. OriginalDat must be defined as a global variable at the remote node and the Network
Publish attribute must be set.
4 The CIPSend instruction is used to send an explicit message to a remote node. The contents of
the message is to read identity information (product name). The class ID, instance ID, attribute
ID, and service code are as follows: The response data is stored in the RespDat variable.
5 The CIPClose instruction is used to close the class 3 connection.
8-2-7 Sample Programming for CIP Connection (Class 3) Message
Communications
Item Value
Class ID 1
Instance ID 1
Attribute ID 7
Service code 16#0E
EtherNet/IP Unit
IP address: 192.168.250.2
Message sent to read identity
information (product name).
Response
RespDat
Value of variable read.
ReadDat
Variable name: OriginalDat
Global variable
Network Publish attribute
Value of variable written.
WriteDat
Variable name: WritingDat
Global variable
Network Publish attribute
Unit number: 0 Unit number: 1
EtherNet/IP Unit
