Omron CJ1W-EIP21 User Manual

5-13
5 Sysmac Studio Settings for the EtherNet/IP Unit
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)

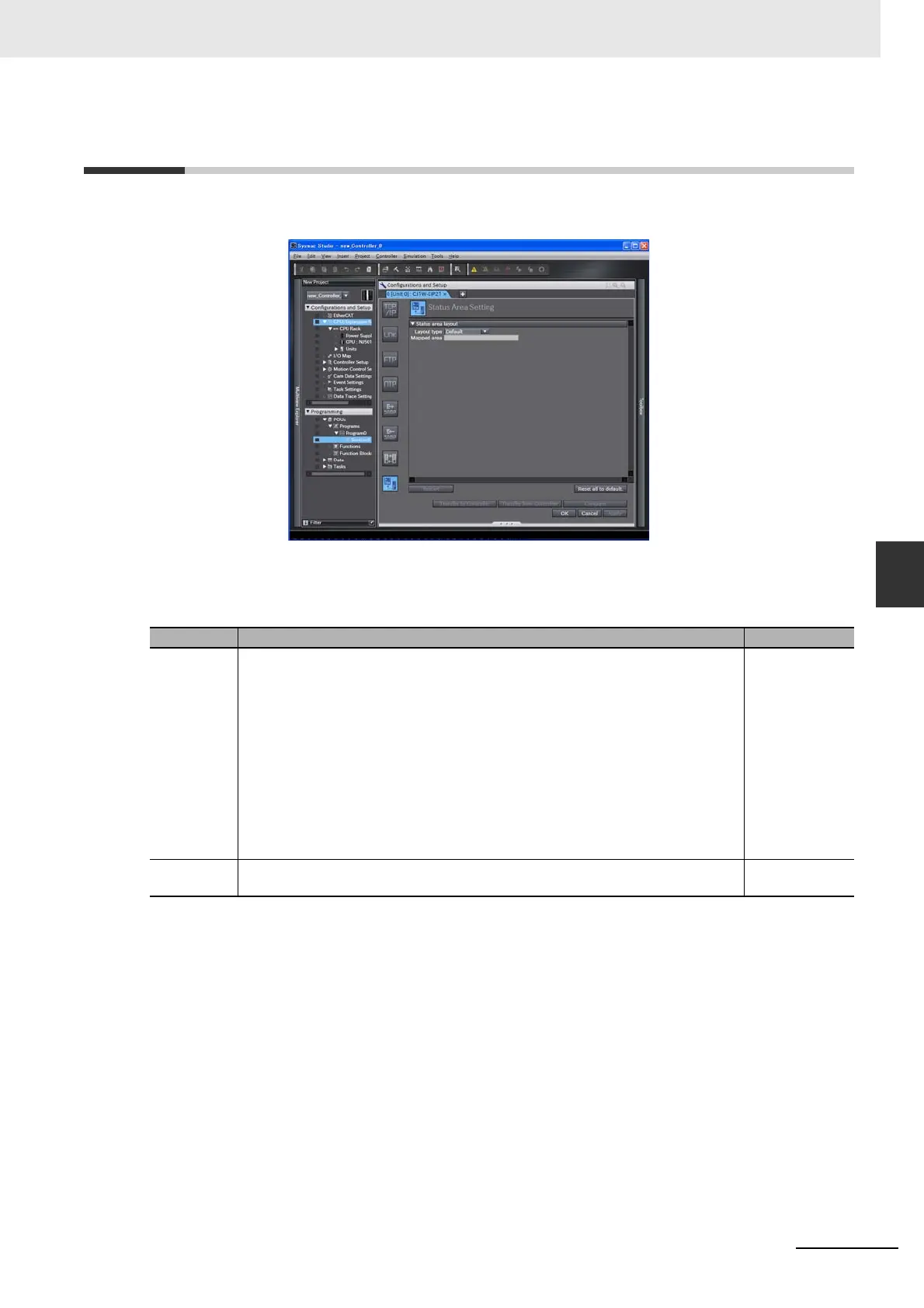

5-8 Status Area Settings Display
5
5-8 Status Area Settings Display
 Status Area Layout
Setting Description Default
Layout Type Select the variables in which to store the status information on the target nodes
that are connected to the EtherNet/IP Unit when the EtherNet/IP Unit is the orig-
inator.
• Default
The following device variables for the CJ-series Unit are used.
• *_TargetPLCMdSta (Target Node PLC Operating Flags)
• *_TargetPLCErrSta (Target Node PLC Error Flags)
• *_RegTargetSta (Registered Target Node Table)
• *_EstbTargetSta (Normal Target Node Table)
• User Setting
Select this setting to store the status information in a user-defined variable.
Default
Mapped
area
If the Layout Type is set to User Definition, enter the name of the user-defined
variable in which to store the status information on the target nodes.
None
