2-3
2 Installing Ethernet Networks
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
2-2 Mounting the Unit to the CPU Rack or
Expansion Rack
2
2-2 Mounting the Unit to the CPU Rack or
Expansion Rack

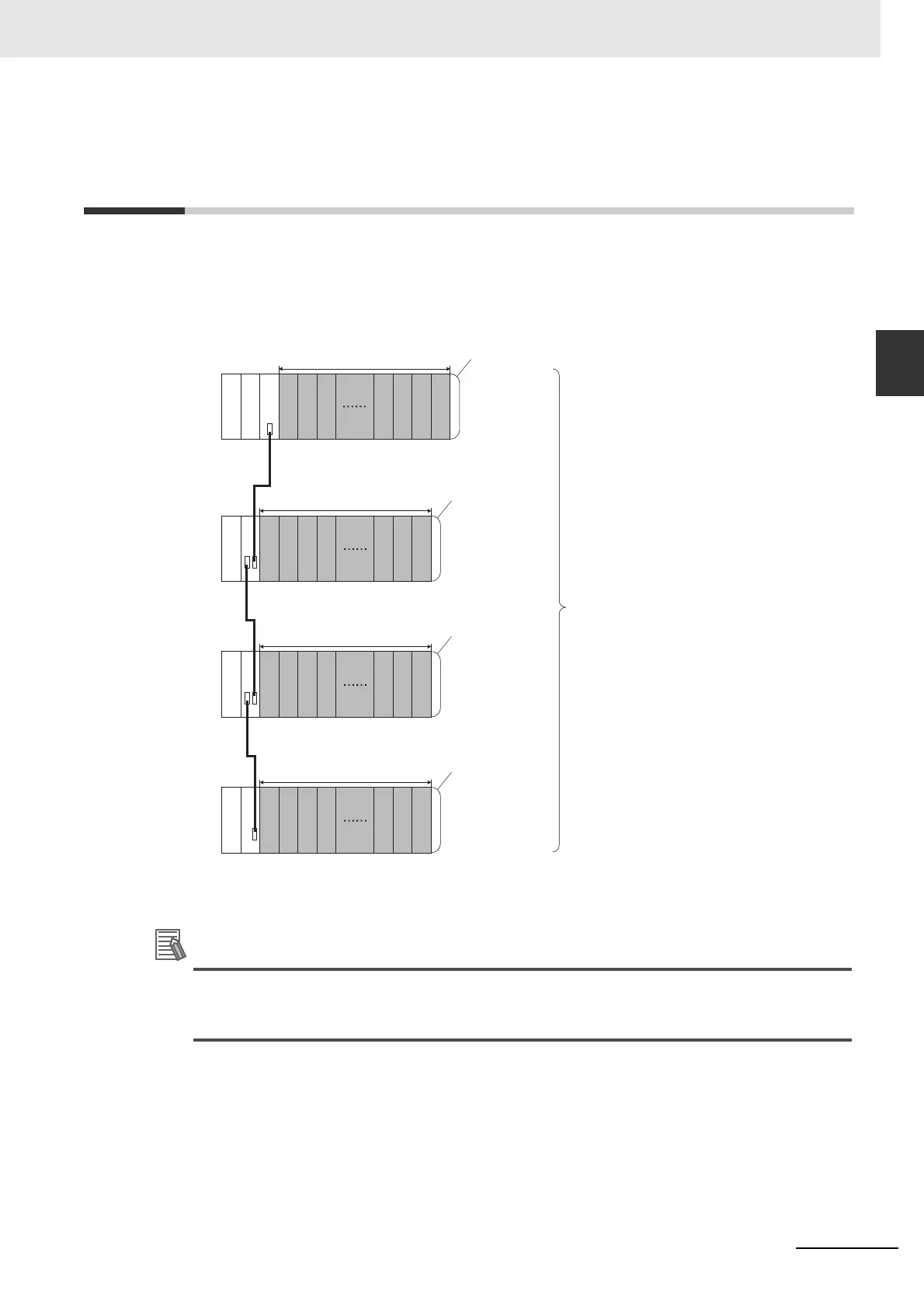

You can mount EtherNet/IP Units to an NJ-series CPU Rack or a CJ-series Expansion Rack. Mount an
EtherNet/IP Unit in any of the positions shown below using the sliders on the top and bottom of the Unit.
You can mount a maximum of four EtherNet/IP Units in a single Controller. If EtherNet/IP Units are
mounted in combination with other CPU Bus Units, the maximum total number of CPU Bus Units that
can be mounted is 16.
Additional Information
The CJ1W-EIP21 EtherNet/IP Unit's maximum current consumption is 410 mA. Be sure that the
total current consumption of all the Units that are mounted to the same CPU Rack or Expansion
Rack does not exceed the output capacity of the Power Supply Unit.
C
P
U
P
S
I
C
P
S
I
I
P
S
I
I
P
S
I
I
CPU Rack
10 Units max.
End cover
10 Units max.
End cover
Expansion Rack
10 Units max.
End cover
Expansion Rack
10 Units max.
End cover
Expansion Rack
Up to four EtherNet/IP
Units can be mounted.
PS: Power Supply Unit
CPU: CPU Unit
IC: I/O Control Unit
II: I/O Interface Unit
