7-31
7 Tag Data Link Functions
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
7-2 Setting Tag Data Links
7
7-2-5 Connection Settings

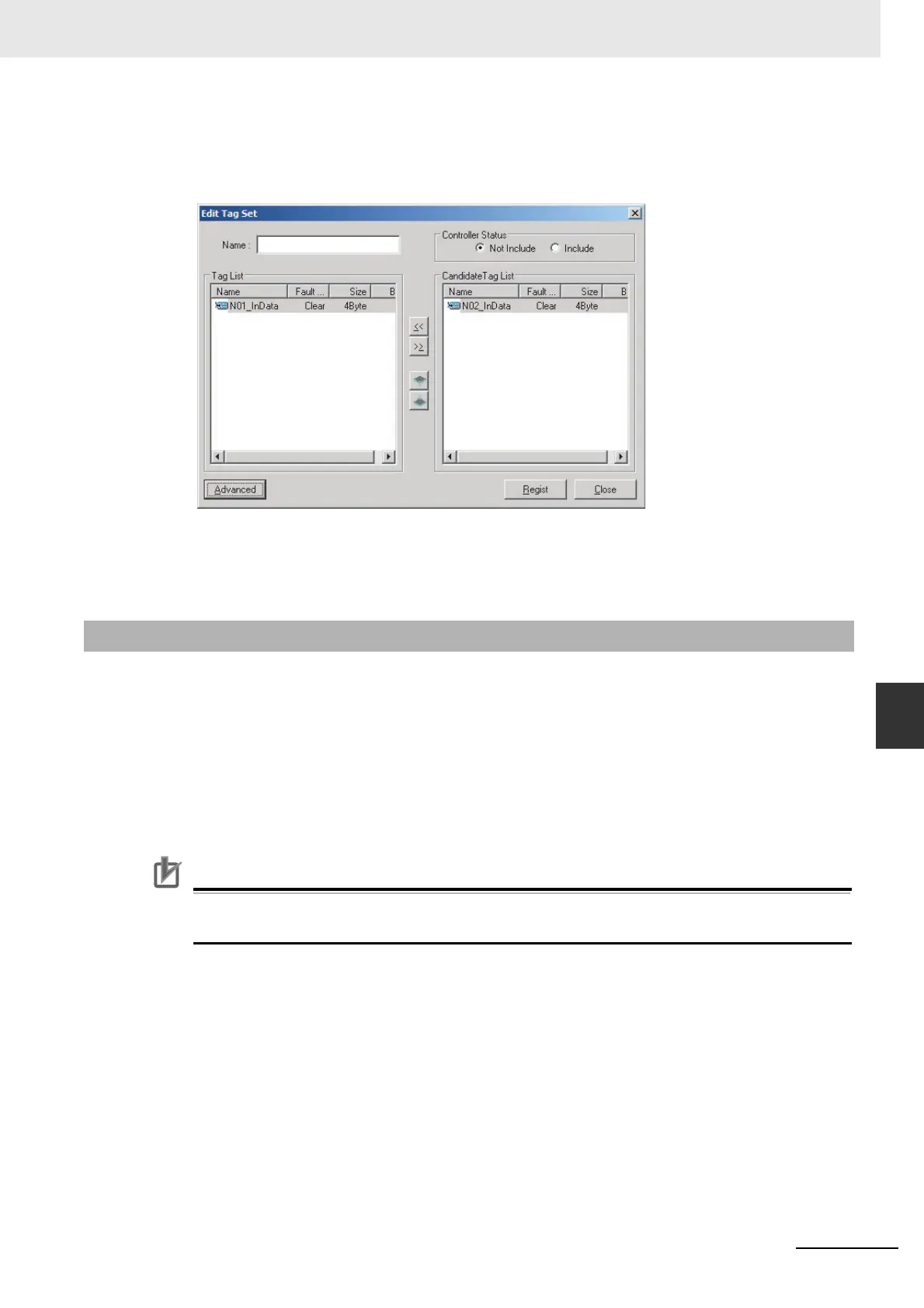

Click the New Button to create a new tag set. To place more than one tag in an existing tag set,
double-click the tag set, or select it and click the Edit Button. The Edit Tag Set Dialog Box is dis-
played. Imported tags that are not registered in another tag set are displayed in the Candidate
Tag List on the right. Click the Button to add tags individually.
3 You can change tag set names in this dialog box. To confirm a change, click the Regist Button in
the Edit Tag Set Dialog Box.
4 Perform steps 1 to 3 for all the devices to import variables and to create tag sets.
After you create the tag sets, click the Connections Tab at the top of the Edit Device Parameters Dialog
Box, and set the following connection information.
• The target devices with which connections are opened
• The connection type (multi-cast or unicast)
• The length of the packet intervals (RPI)
• Connection name (optional)
Make the connections settings in the originator only. The connections settings are not necessary in the
target device.
Precautions for Correct UsePrecautions for Correct Use
Make the connections settings after you create tag sets for all of the devices involved in tag data
links.
7-2-5 Connection Settings
