7 Tag Data Link Functions
7-20
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
You must create the tag sets and set member tags required to create connections for a registered Eth-
erNet/IP Unit. You can set the network variables used in control programs for tags. This section first
describes the basic procedure to create tags and tag sets (1, below). Then it explains how to import
variables with a Network Publish attribute from the Sysmac Studio to the Network Configurator (2,
below).
Then it explains how to effectively use network variables for tags.
(1) Creating Tags and Tag Sets with the Network Configurator’s Device Parameter Edit-
ing Function
(2) Importing Variables with a Network Publish Attribute Created in the Sysmac Studio
to the Network Configurator
 Creating a Tag Set

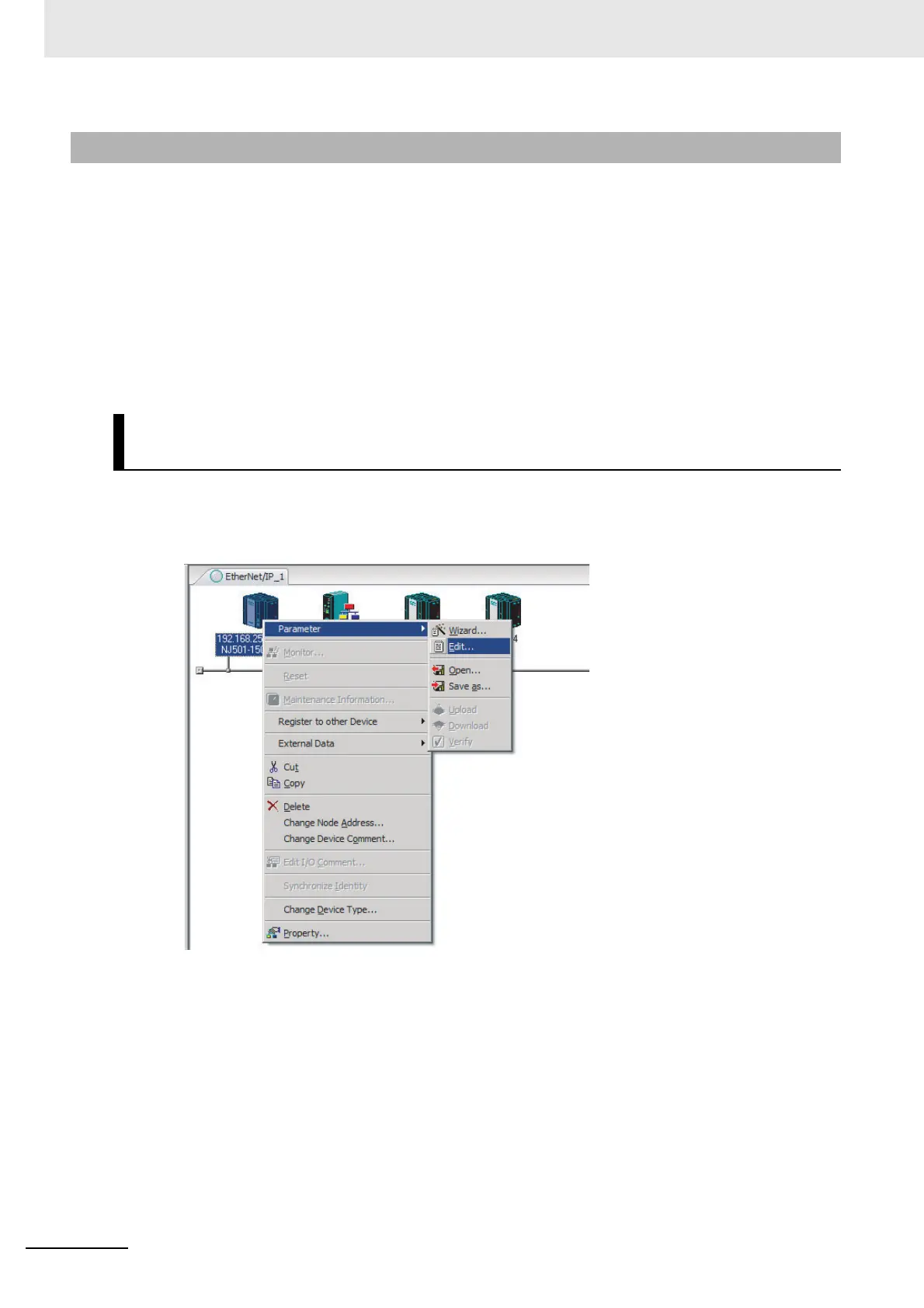

1 Double-click the icon of the device for which to create a tag set to display the Edit Device Param-
eters Dialog Box. Right-click the icon to display the pop-up menu, and select Parameter – Edit.
7-2-4 Creating Tags and Tag Sets
(1) Creating Tags and Tag Sets with the Network Configurator’s
Device Parameter Editing Function
