7-41
7 Tag Data Link Functions
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
7-2 Setting Tag Data Links
7

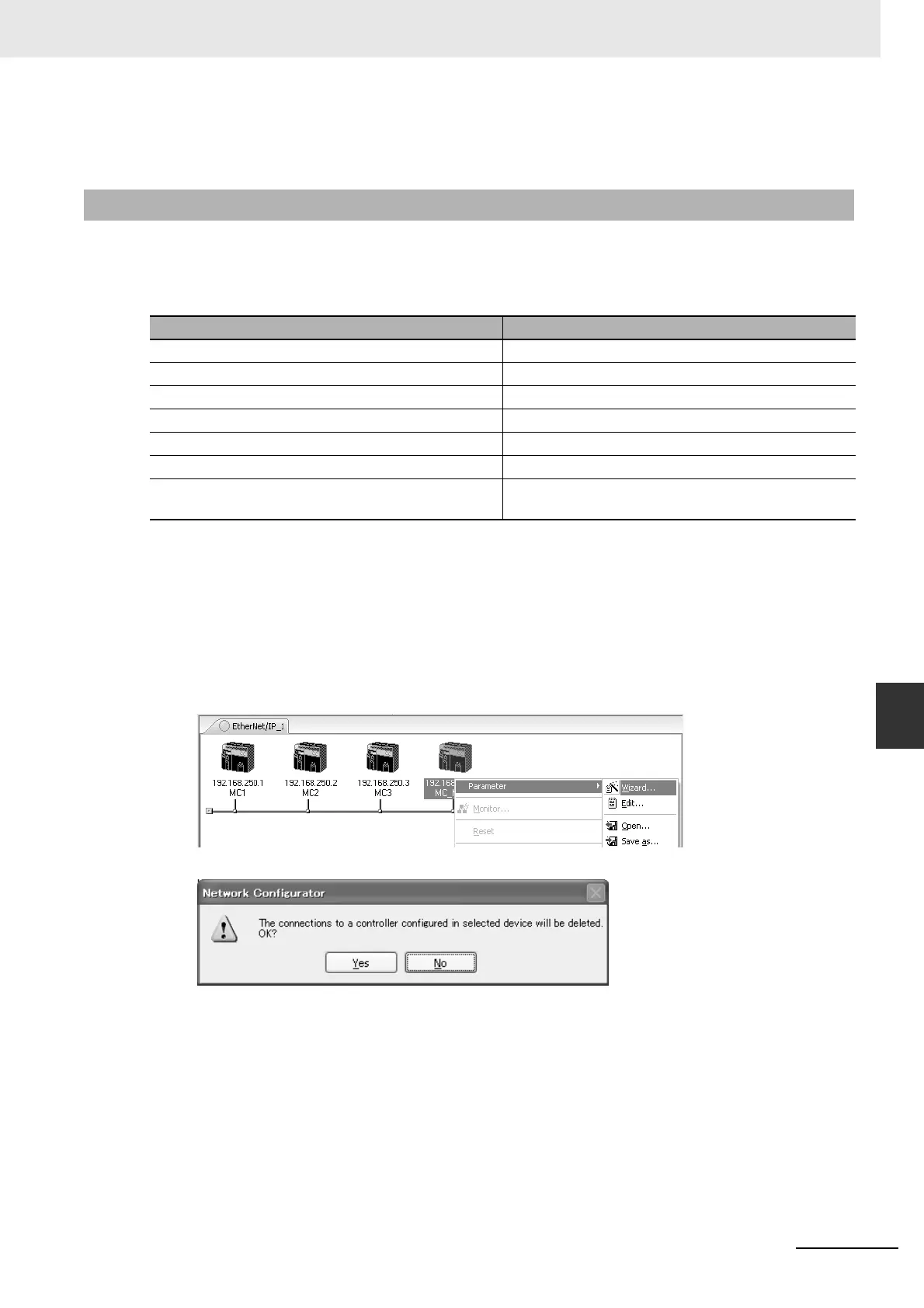

7-2-6 Creating Connections Using the Wizard
• The Edit Device Parameters Dialog Box is displayed if you select a connection and click the Edit But-
ton. You can edit the connections in this dialog box.
You can use the Network Configurator's Wizard to easily create connections between OMRON PLCs
following the instructions provided by the Wizard.
Note The Wizard can be used only with the following OMRON EtherNet/IP devices.
Use the following procedure to create connections (i.e., data links) with the Wizard.
1
Set tags and tag sets for all devices before starting the Wizard. Refer to 7-2-4 Creating Tags and
Tag Sets for the setting procedure.
2
For tag data links between OMRON PLCs, a connection is created in the PLC (i.e., the origina-
tor device) that receives data as input data.
First, select the registered device for which you want to create a connection in the Network Con-
figuration Window of the Network Configurator, and then select Device - Parameters - Wizard
from the menus.
The following dialog box will be displayed before the Wizard starts.
Click the Yes Button to delete the connections that have been set with OMRON PLCs before
starting the Wizard.
7-2-6 Creating Connections Using the Wizard
Device name Remarks
CJ1W-EIP21(NJ) CJ1W-EIP21 mounted to NJ-series CPU Unit
CJ1W-EIP21 CJ1W-EIP21 mounted to CJ1 CPU Unit
CJ1W-EIP21(CJ2) CJ1W-EIP21 mounted to CJ2 CPU Unit
CJ2B-EIP21 Built-in EtherNet/IP port in CJ2H CPU Unit
CJ2M-EIP21 Built-in EtherNet/IP port in CJ2M CPU Unit
CS1W-EIP21 CJ1W-EIP21 mounted to CS1 CPU Unit
NJ301-@@@@
NJ501-@@@@
Built-in EtherNet/IP port on the NJ-series CPU Unit
To Next Page
