Parameter
No.
Function name Data
Default da-
ta
Unit
E125
1st 2-step Acceleration/ Decelera-
tion switching Condition Selection
0: Switching by 2CH terminal (159:
2-step acceleration/deceleration)
1: Switching by setting
2: Forward and reverse
3: Switching by RT1, RT2 terminals
0
-
E126
2nd 2-step Acceleration/Decelera-
tion Switching Condition Selection
*1
E127
1st 2-step Acceleration Switching
Frequency
0.00 to 590.0 0.00 Hz
E128
2nd 2-step Acceleration Switching
Frequency
*1
E129
1st 2-step Deceleration Switching
Frequency
E130
2nd 2-step Deceleration Frequen-
cy
*1
d86 Acc/Dec Output Frequency Filter 0.000 to 5.000 0.000 s
Related functions F07, E10, F08, E11, E01 to E05, E98, E99
*1. To enable switching to the 1st and 2nd control, allocate “12: SET (2nd control)” to either of input terminal
[DI1] to [DI7].

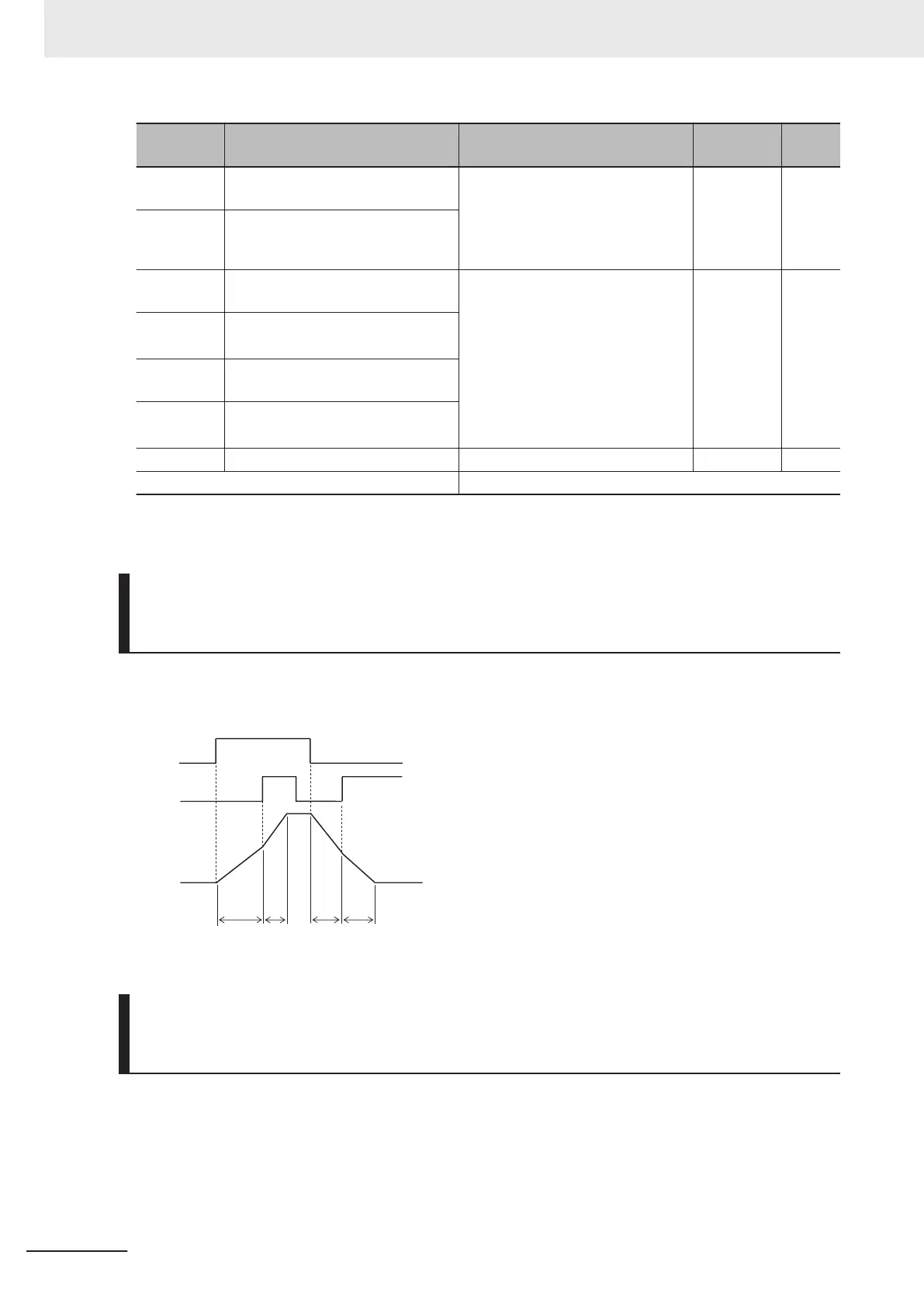

2-step Acceleration/Deceleration Switching Condition Selection
(E125/E126 = “0: Switching by 2CH terminal (159: 2-step Accelera-
tion/Deceleration)” (Example 1)
• When 2CH terminal is ON, acceleration/deceleration is performed at acceleration time 2 (E12/E14)
or deceleration time 2 (E13/E15). When the terminal is OFF, acceleration/deceleration is performed
at acceleration time 1 (F07/E10) or deceleration time 1 (F08/E11).
F07/E10
E12/
E14
F08/
E11
E13/E15
FW
2CH
Output frequency
1st Acceleration
Time 1 / 2nd
Acceleration
Time 1
1st
Acceler-
ation
Time 2 /
2nd
Acceler-
ation
Time 2
1st
Decelera-
tion Time 1
/ 2nd
Decelera-
tion Time 1
1st
Deceleration
Time 1 / 2nd
Deceleration
Time 2
2-step Acceleration/Deceleration Switching Condition Selection
(E125/E126 = “2: Switching only at forward/reverse switching” (Ex-
ample 2)
• During forward rotation, acceleration is performed at acceleration time 1 (F07/E10) from output fre-
quency 0 Hz up to 2-step Acceleration Switching Frequency (E127/E129). Acceleration is performed
at acceleration time 2 (E12/E14) from 2-step Acceleration Switching Frequency (E127/E129) up to
the maximum output frequency.
• During reverse rotation, deceleration is performed at deceleration time 1 (F08/E11) from output fre-
quency 0 Hz up to 2-step Deceleration Switching Frequency (E129/E130). Deceleration is
5 Basic Settings
5-44
M1 Series Standard Type User's Manual (I669)
