6-3SectionOperation Modes and the System Menu
108
6-3-3 Operations with the System Menu
This
section describes
how to use the menus, including how to call the System
Menu, how to call the System Installer mode, and how to select menu items.
The System Menu can be displayed by either of the following two methods.
• Touching the corners of the touch panel
• Pressing a touch switch that displays the System Menu
Reference: S If
display of the System Menu is prohibited by the setting made in the System
Installer
mode, the System Menu cannot be displayed (this
does not apply if an
error has occurred).
S At
the same as the System Menu is displayed, the operation of the NT21 stops
and the RUN Indicator goes OFF.
Touching the Corners of the Touch Panel

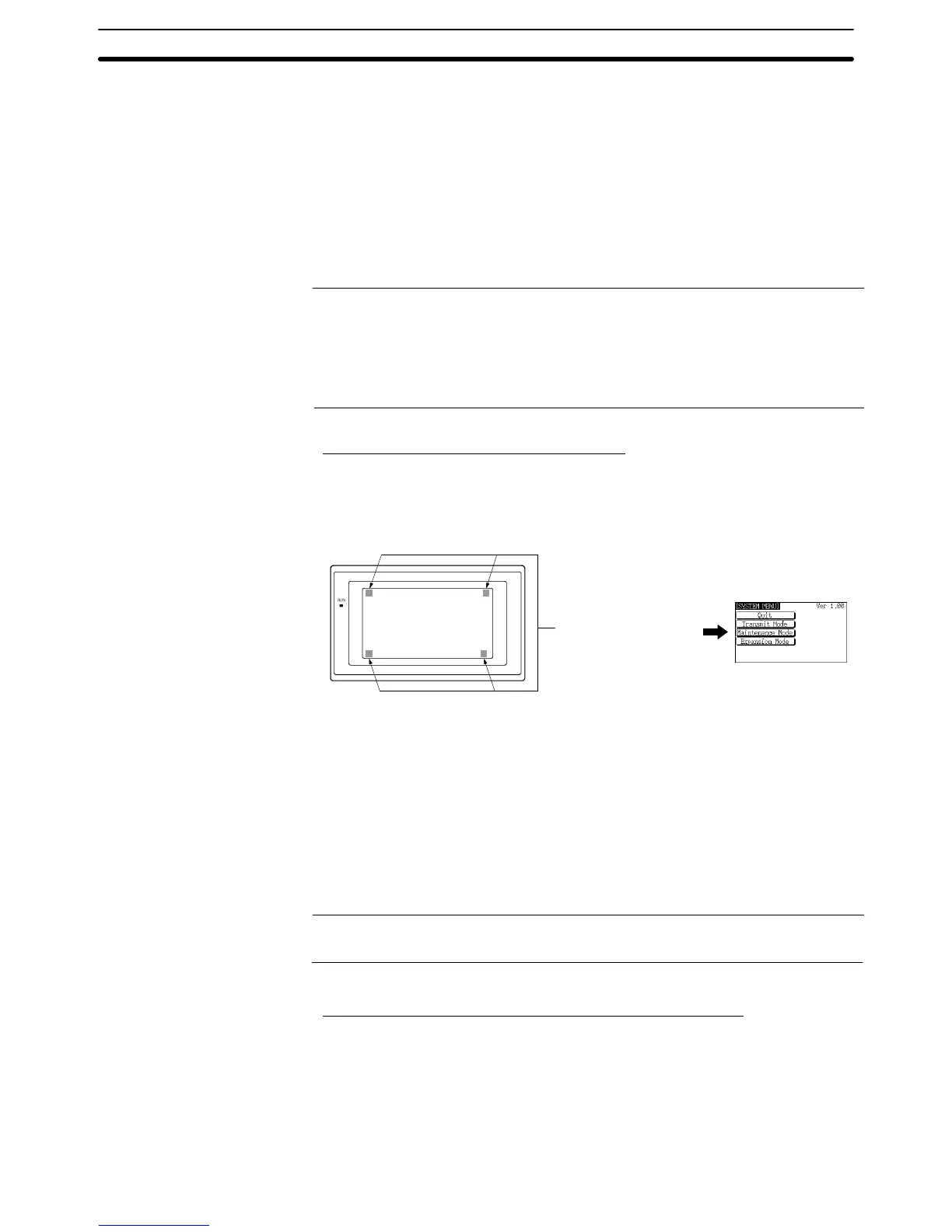

When two of the four corners of the touch panel (see the figure below) are
touched simultaneously, the System Menu is displayed.
Press
any two of the four
corners at the same time.
RUN mode
Note that the touch switches used to call the System Menu
are
not displayed at
corners
on the screen. If a touch switch displayed in a corner is pressed first, the
touch
switch will
function and the System Menu will not be displayed. In particu
-
lar, when the touch switch has switch screen function, as a result of screen
switch
over
,
it means the corner is not pressed even if it is kept pressing. T
o suc
-
cessfully
call
the System Menu, first press a corner where no touch switch is dis
-
played,
and then press any other corner regardless of the presence of a touch
switch.
Reference: With
the NT21, the System Menu can be displayed even
if the screen has touch
switches registered at all four corners.
Pressing a Touch Switch That Displays the System Menu
There is a control key that has the function of displaying the System Menu.
By
registering a touch switch for the System Menu display ([MENU]) on a screen
when creating it, the System Menu can be displayed just by pressing this switch.
The menu items in the System Menu are displayed on the NT21 screen as touch
switches. Menu items can be selected simply by pressing them.
Calling the System Menu
Selecting Menu Items
To Next Page
