6-8SectionStarting Operation
133

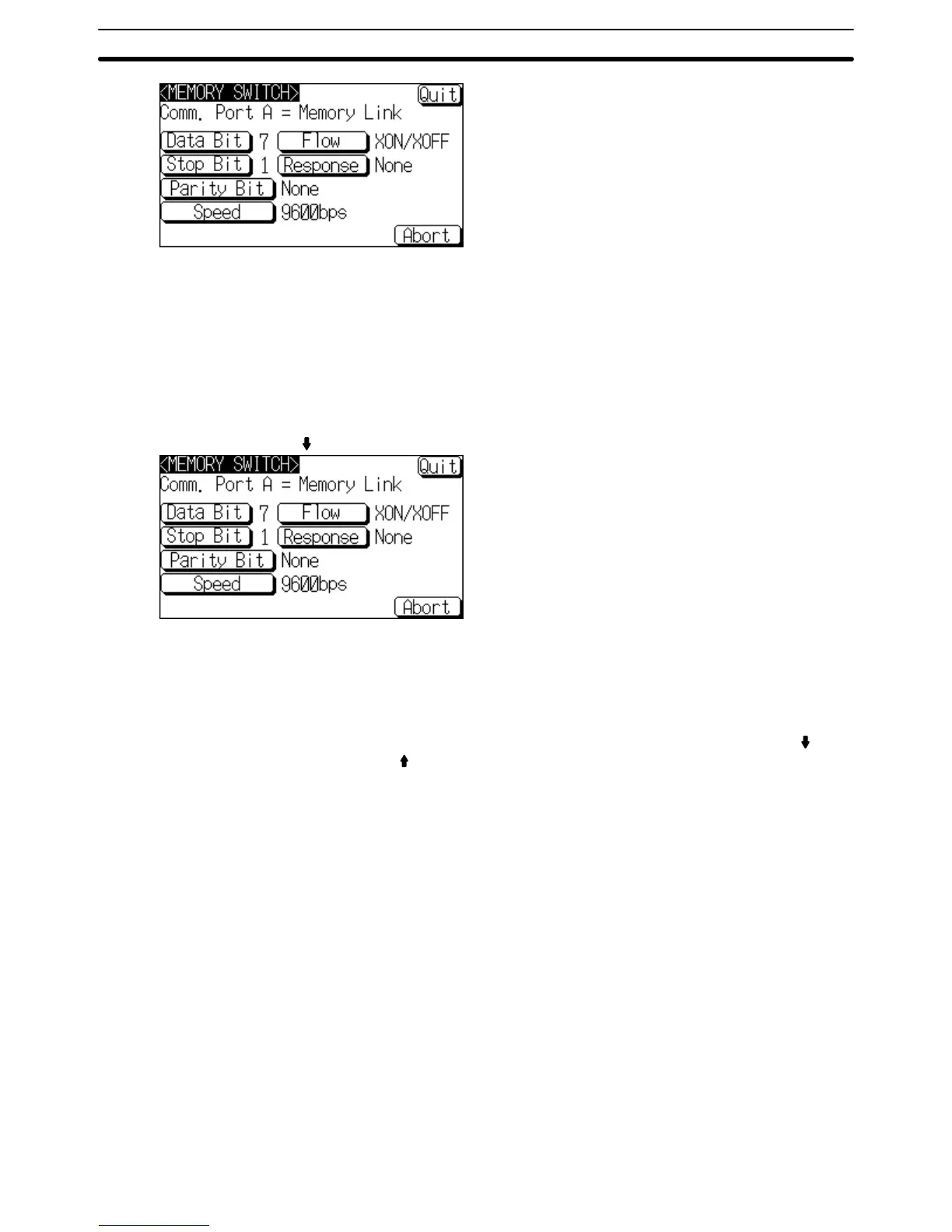

Display the data bits to be set (7 bits or 8 bits)
by pressing the Data Bit Length touch switch.
Display the stop bits to be set (1 bit or 2 bits)
by pressing the Stop Bit Length touch switch.
Display the parity to be set (None, even, odd)
by pressing the Parity Bit touch switch.
Display the baud rate to be set (1200, 2400,
4800, 9600, 19200, 38400 bps.) by pressing
the Comm. Speed touch switch.
Display
the condition of the flow control to be
set (None, RS/CS, XON/XOFF) by pressing
Flow Control touch switch.
Display
presence or absence of the response
by pressing the Response touch switch.
The setting option changes each time the
touch switch is pressed.
In this example, serial port A is used.
Press the Quit touch switch.
• To quit the baud rate setting screen without setting the baud rate, press the
Abort touch switch. The NT21 returns to the memory switch setting screen
(4/4) and the previous baud rate remains in effect.
On
completion of baud rate setting, the NT21 returns to the memory switch set -
ting screen (4/4).
To set other memory switches, select the relevant screen using the [
] (next
screen) or [
] (previous screen) touch switch, then make the setting.
• To confirm
the settings and quit the memory switch setting screen, press the
Quit touch switch. The settings made last will be set and the NT21 will return to
the MAINTENANCE MODE MENU screen.
If
the combination of settings for serial port A and serial port B is not allowed, an
error message (indicating that the protocol settings are incorrect) will be dis-
played
when the Quit touch switch is pressed. In this case, correct the settings
to a combination that is allowed.
• To
quit the memory switch setting screen without confirming the settings, press
the Abort touch switch. The NT21 will return to the MAINTENANCE MODE
MENU screen with the previous settings still in effect.
6-8 Starting Operation
After completing screen data transmission and setting the communication
conditions, connect the NT21 to the host and start operation.
Note Check
the operation of all screen data and host programs carefully before using
them. If incorrect, the system may operate unpredictably.
Press the Quit touch switch on the System Menu screen or other screen. The
NT21 switches to the RUN mode and starts operation.
Switching to the RUN
Mode and Starting
Operation
