193
Appendix B

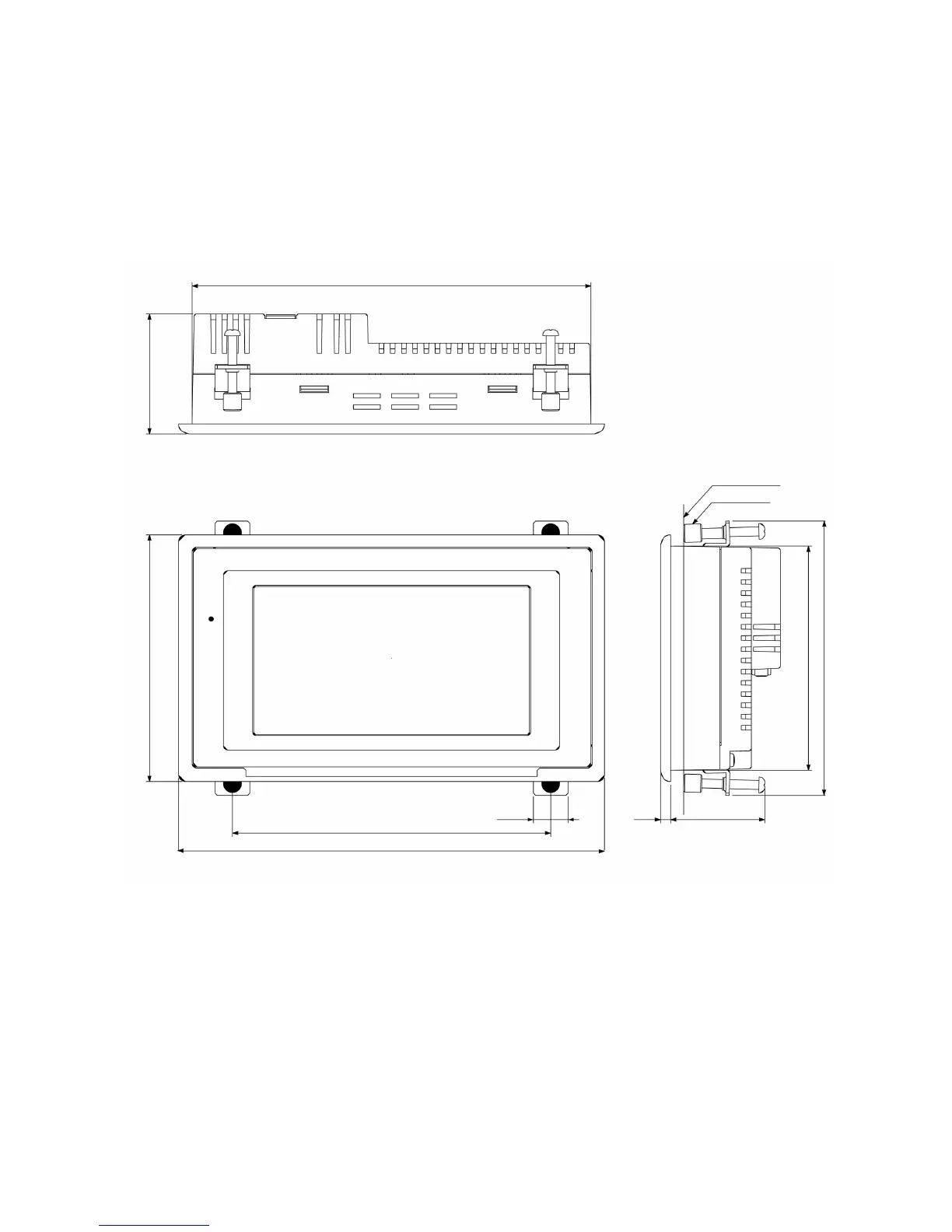

External Dimensions and Mounting
Dimensions
PTs
Units:
mm (inch)
Mounting panel
Mounting fixture
178 (7.01)
53.5 (2.1
1)
1
10 (4.33)
142 (5.59)
190 (7.48)
15.5
(0.61)
4.5
(0.18)
100 (3.94)
122 (4.80)
