6-11SectionSystem Maintenance
149
6-11-2 Checking the PT Setting Status
The
direct connection settings of the NT21 screen data, and the settings for seri
-
al port A and serial port B, can be checked.

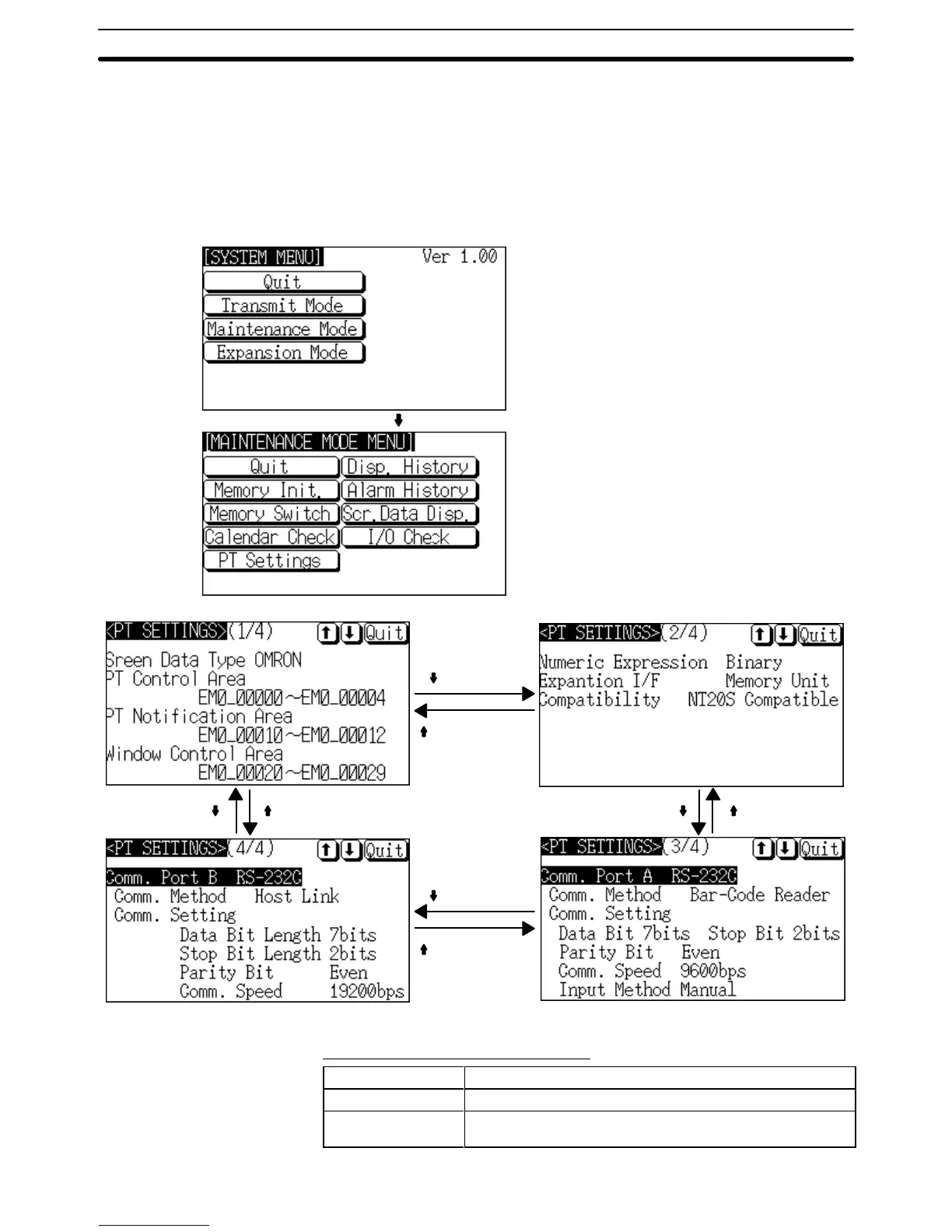

Screen Configuration and Display Contents
There
are four dif
ferent screens that show the PT setting status. Select the Down
Arrow
or Up Arrow as shown below to go to the next or to
the previous screen.
The display methods and contents are shown below.
Select Maintenance Mode.
Select PT Settings.
[ ] (next screen)
(next screen) [ ] [ ] (previous screen)
[ ] (previous screen)
(next screen) [ ] [ ] (previous screen)
[ ] (next screen)
[ ] (previous screen)
The Maintenance Mode Menu will be returned to when Quit is selected.
Display Contents of the First Screen
Item Meaning
Screen Data Type The host type set for the screen data
PT Control Area Word at the host to which the PT Status Control Area is allo-
cated
