Time and Personnel
2-12 StorageTek SL8500 Library Guide

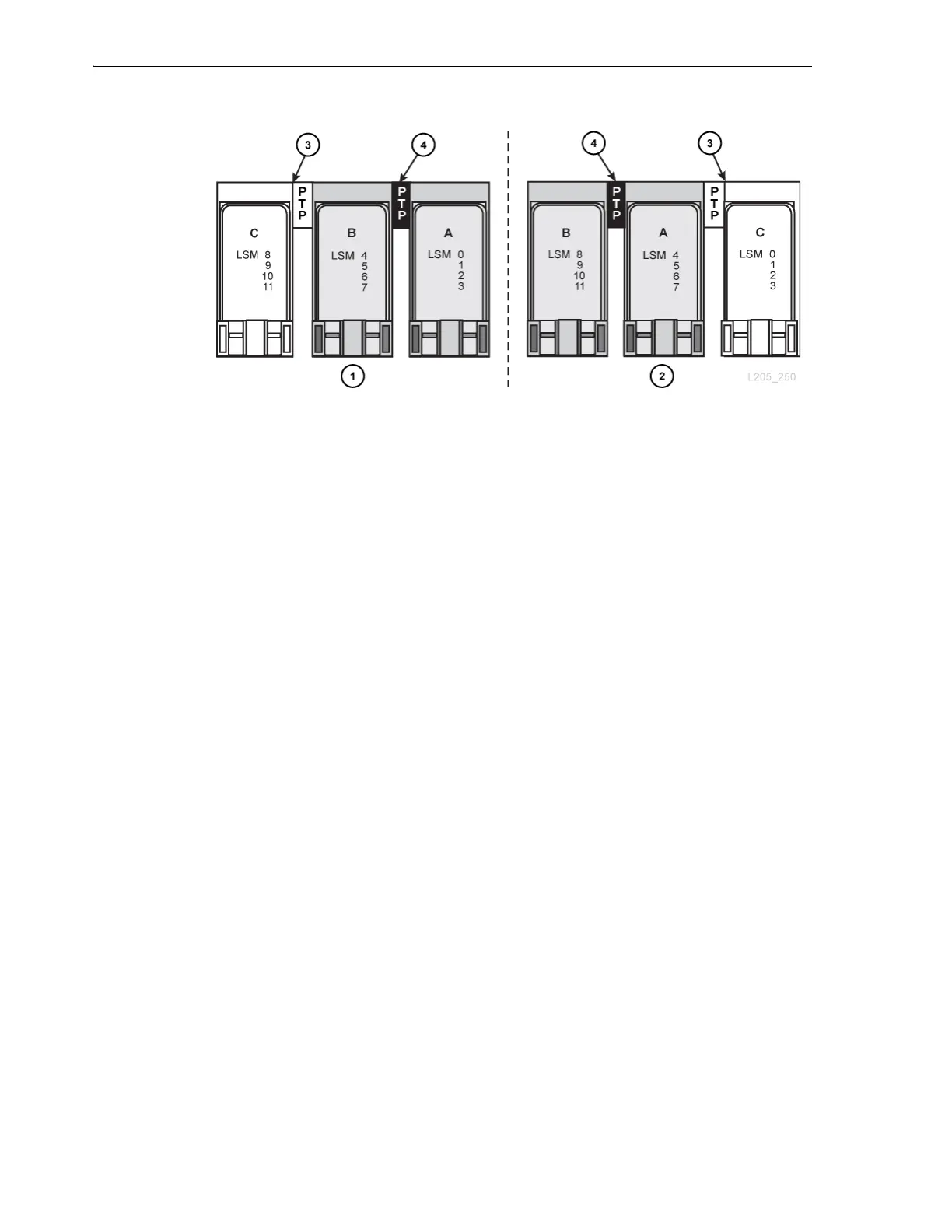

Figure 2–5 Pass-thru Port Planning Example
Figure Legend:
1. Preferred, non-disruptive method of installation
2. Disruptive method of installation
3. New library and PTP
4. PTP connecting existing libraries
Time and Personnel
When preparing for an SL8500 installation, it is important to consider personnel
requirements, which include safe lifting and time.
Lifting
The upper drive bay and robotic rail modules must be manually lifted for installation.
These modules weigh approximately 40 kg (85 lb) and are raised a height of 1.7 m (5.5
ft). There are two methods for installing the upper module. Be aware that one of the
methods requires four people to complete. For more information about the upper
module installation methods, see "Ceiling Requirements" on page 2-6.
Time
The estimated time to physically install a library is about 24 hours. This is based on
three qualified people working approximately eight hours each. For initial planning,
allow for two days to completely install the library. This provides time to ensure a
quality installation and allows for training. Time factors to consider include:
■ Guiding the pallets from the dock to the installation site
■ Removing packaging material when floor space is limited
■ Lifting requirements of 40 kg (85 lb) to attach upper frame assemblies
■ Configuring the library and up to 64 drives with switches and cables
Installation Tools
The table below lists the tools contained in the installation kit (part number 24100250).
The installation kit is currently not available for order. There are sufficient kits in the
field to support installation needs. Oracle service representatives should obtain a kit
from their local area and ensure that the following tools are in the kit.
