Installation and commissioning
8 - 3
-
8.01.03 Connecting the plug-in connections and earth cable
● Connect all plugs as labelled in the control box.
● Screw the earth cable from the machine and from the main switch to earth point A.
● Connect earth points A and B with an earth cable.
● Screw the earth cable of plug 1 to earth point B.
The serial interface 2 is used for data communication between PC and the
machine control unit (e.g. for software updates, work with the programs SAM
and OSCA).

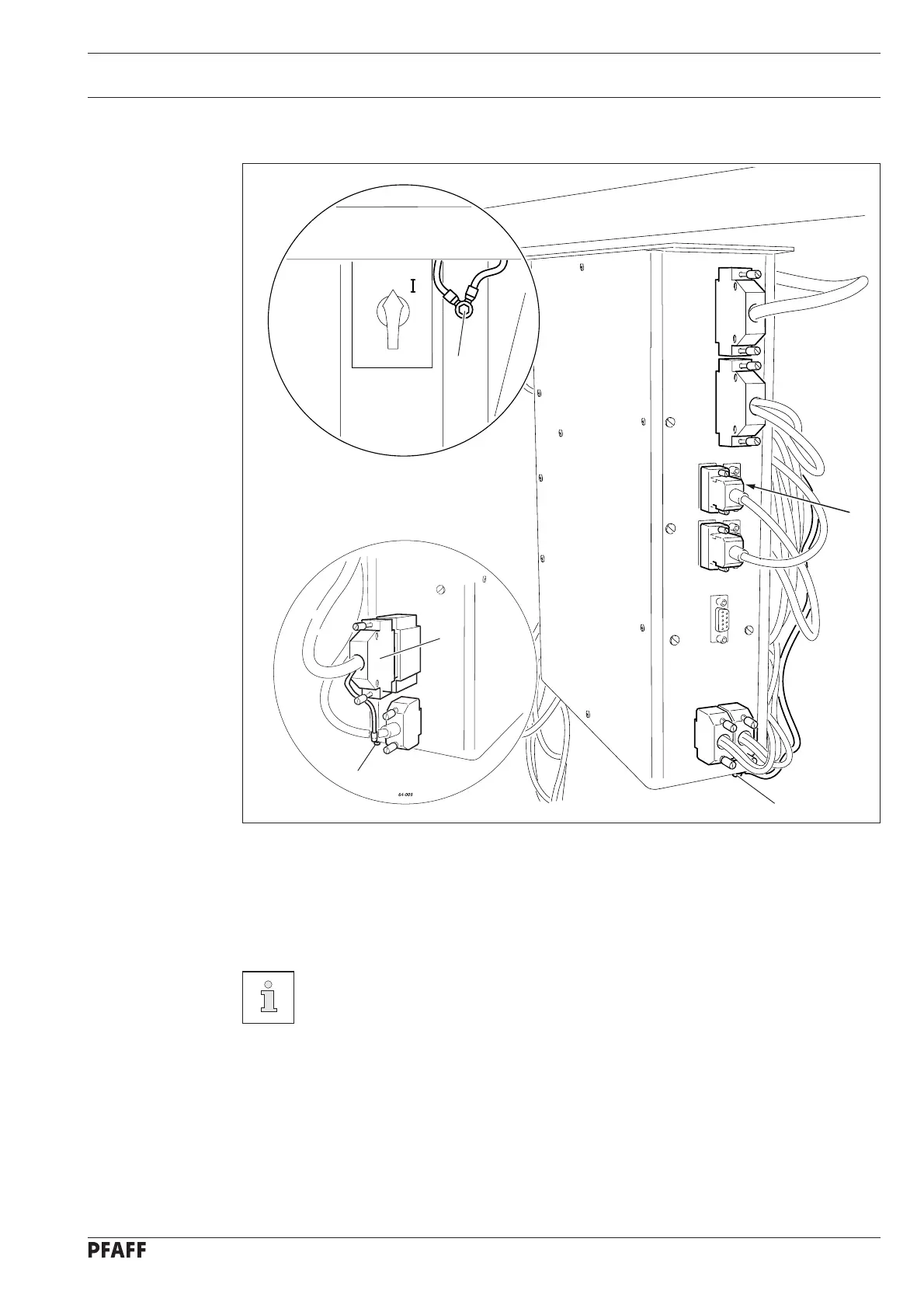

Fig. 8 - 03
0
64-118
1
3
4
2
5
