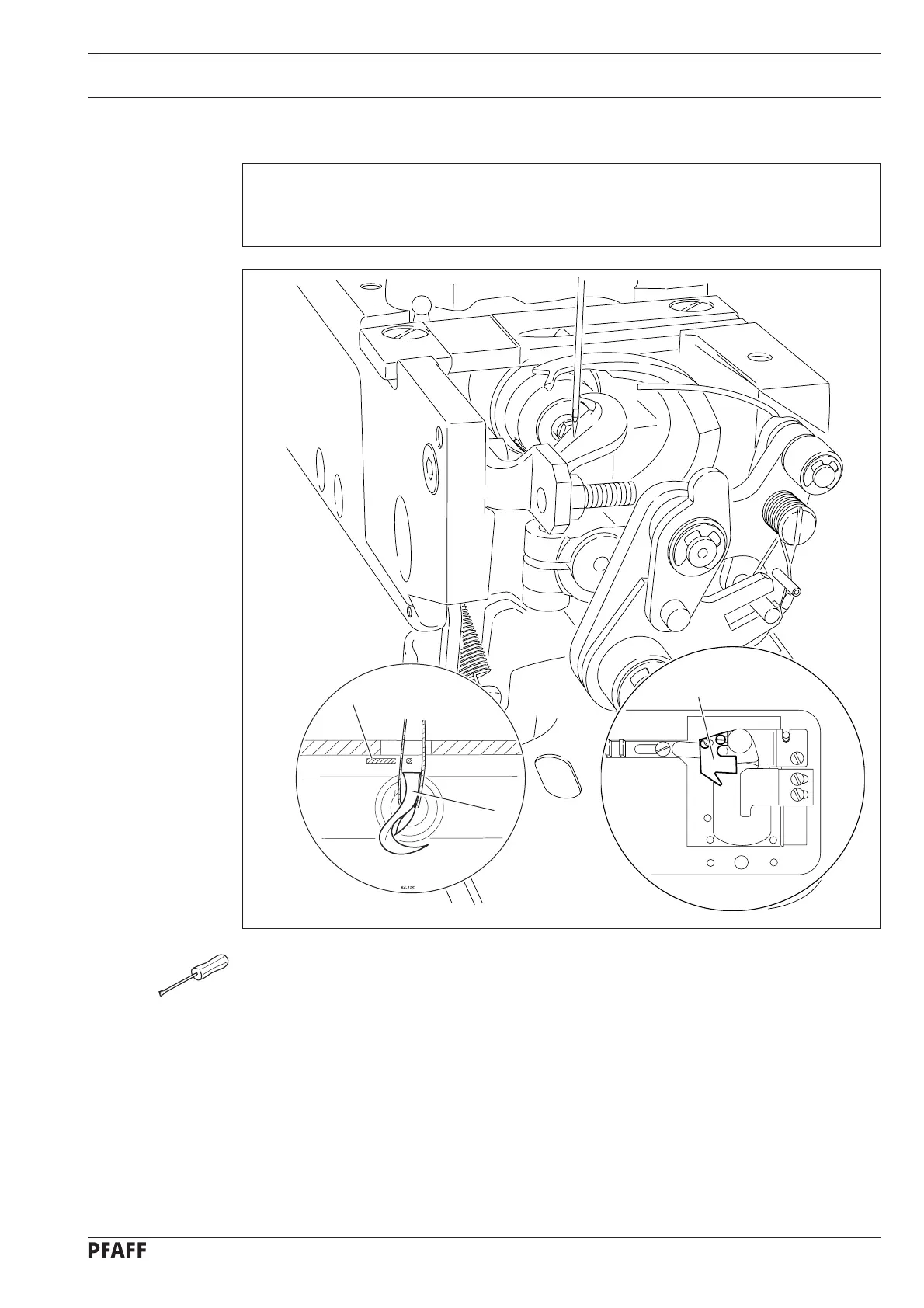

13.19 Adjusting the thread catcher
Requirement
In the cutting position the hook 3 should be vertical and the thread catcher 1 should grip
reliably in the stitch triangle.
● Switch on the machine and set parameter "403" at the maximum value.
● Select the sewing mode and carry out a sewing operation.
● Switch the machine off in the cutting position at the on/off switch and disconnect it from
the pneumatic power supply.
● Carry out the cutting operation manually, checking the requirement while doing so.
● If necessary, switch on the machine and with the parameters "614" and "615" set the
thread catcher 1 in accordance with the requirement.
● If the hook 3 is not vertical in the cutting position, check the setting in accordance with
Chapter 13.05 Top needle bar position (reference position).
● Switch off the machine and check the cutting operation.
● Switch on the machine, reset parameter "402" to its initial value and switch off the
machine.
