Adjustment
13 - 29

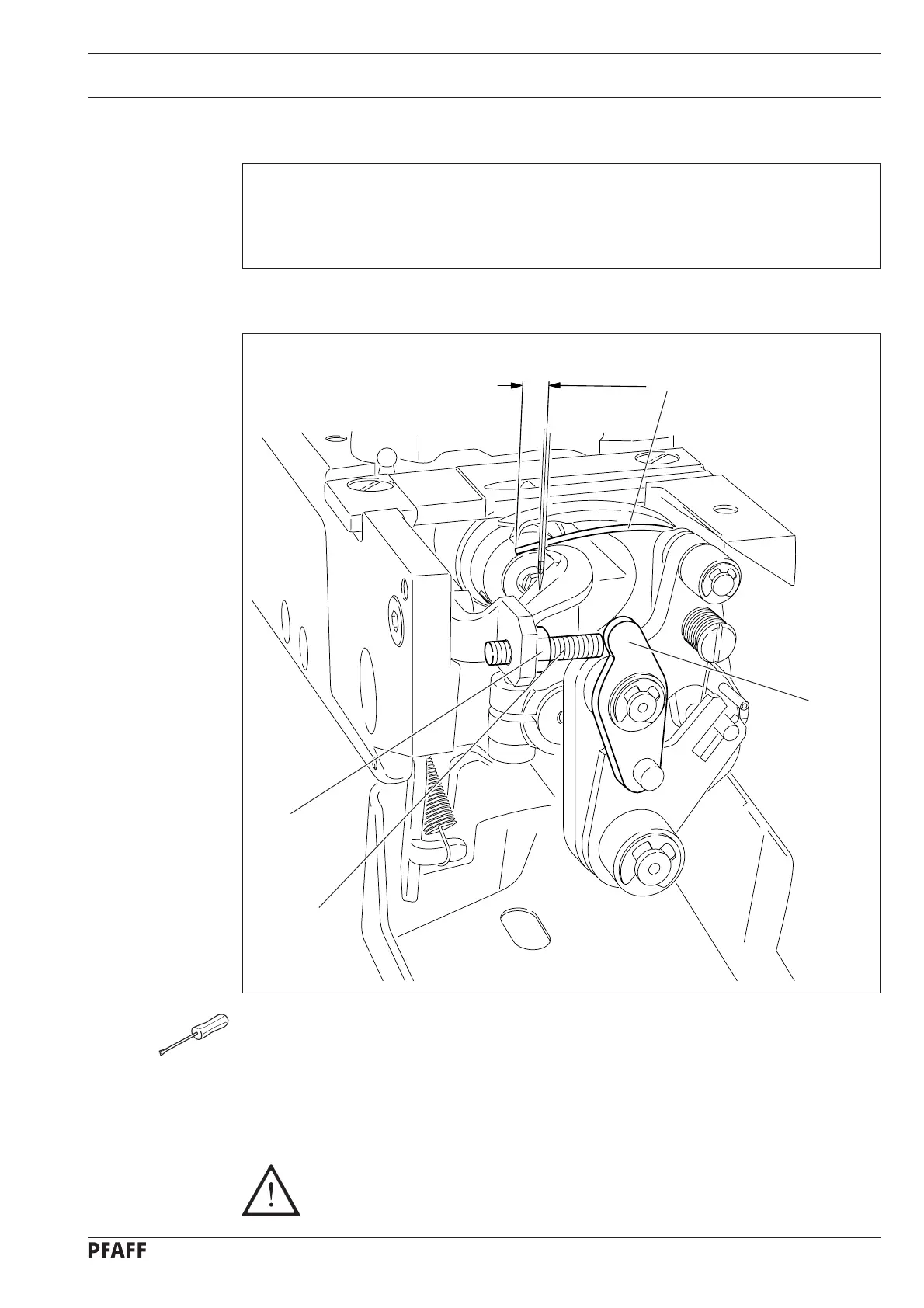

Fig. 13 - 27
4
1
3
2
5 mm
13.29 Adjusting the lifting lever of the end knotting equipment
Requirement
When parameter "610" is set at "1" and the machine is in the needle rise position, the
retaining finger 1 should be positioned 5 mm behind the centre of the needle and the
lifting lever 4 should be touching screw 2.
● Switch on the machine, set parameter "610" at "1" and bring the needle bar into the
needle rise position.
● Disconnect the machine from the pneumatic power supply.
● Position the retaining finger 1 by hand.
● Turn screw 2 (nut 3) in accordance with the requirement.
Make sure that the retaining finger 1 does not touch the loop spreader.
