Adjustment
13 - 16
1
2
Fig. 13 - 14
2,4 mm
1
1,6 mm

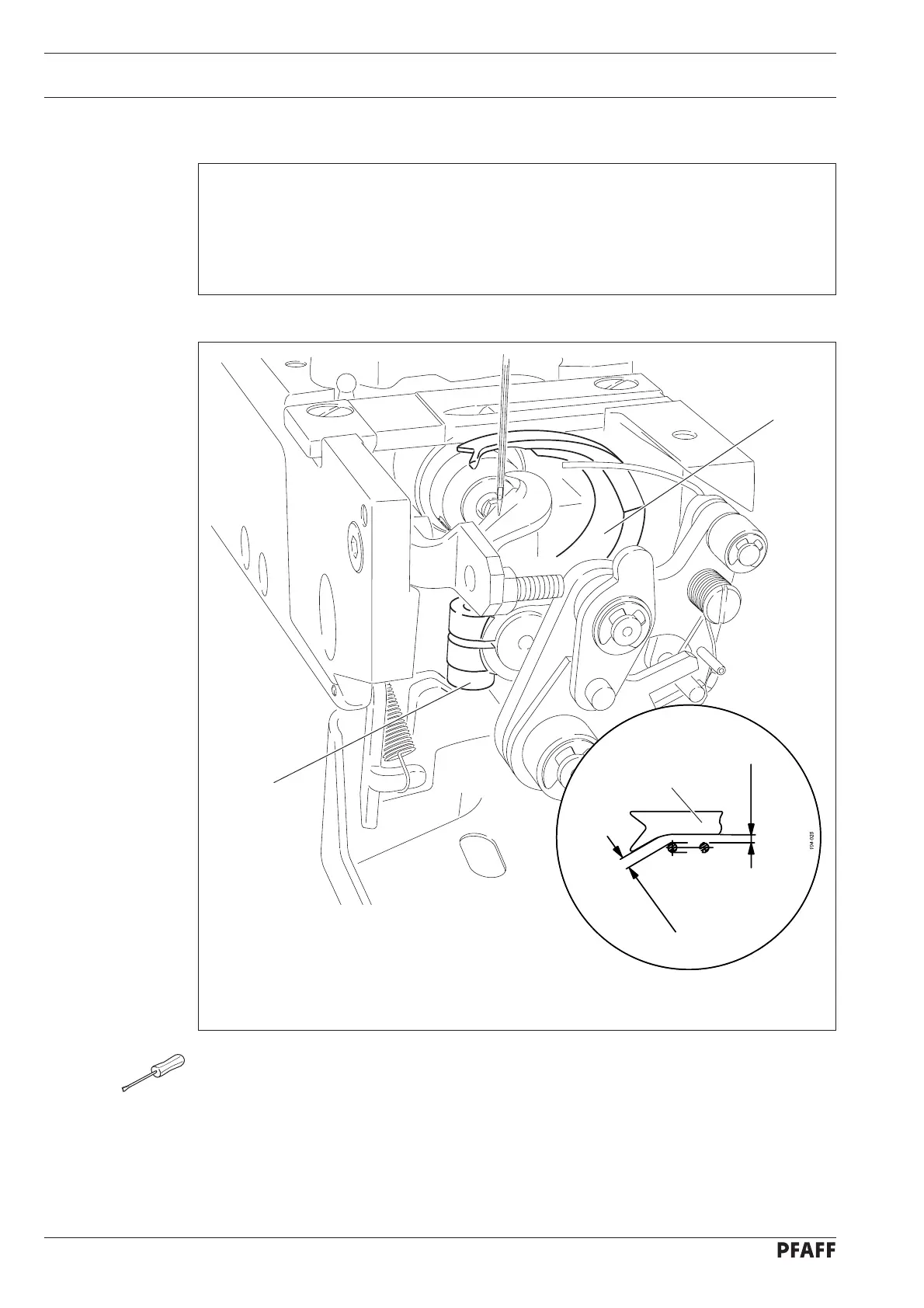

13.16 Position of the loop spreader to the needle
Requirement
When the needle bar is positioned at b.d.c. and parameter "610" is set at "3"
1. There should be a distance of 2.4 mm between the front edge of the loop spreader 1
and the needle.
2. There should be a distance of approx. 1.6 mm between loop spreader 1 and the needle.
● Switch on the machine and set parameter "610" at "3".
● Position the needle at its b.d.c. by turning the balance wheel.
● Adjust loop spreader 1 (screw 2) in accordance with requirements 1 and 2.
● Switch off the machine.
