Pfaff 3307-1 SERIES User Manual

Adjustment
13 - 36
13.36 Adjusting the button holding cylinder (only on subclass -5/..)
Requirement
The button holding cylinder 1 should be at the same level as button seat 3, and without a
button inserted it should extend approx. 1 mm further than with a button inserted.
● Adjust the button holding cylinder 1 (nuts 2) in accordance with the requirement.

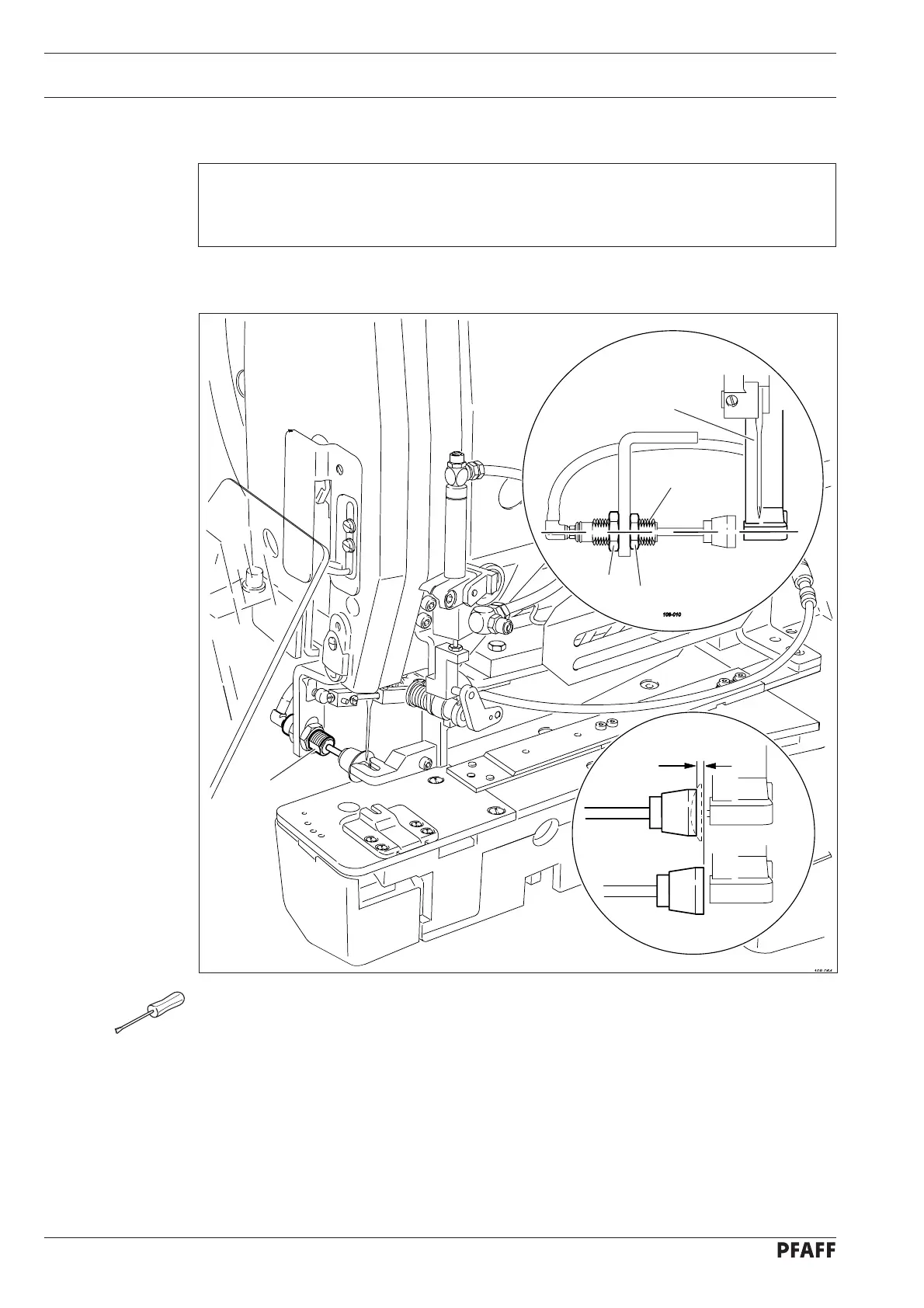

Fig. 13 - 34
2
2
1
3
1
108-040
1 mm
