8.01.04 Fitting the reel stand

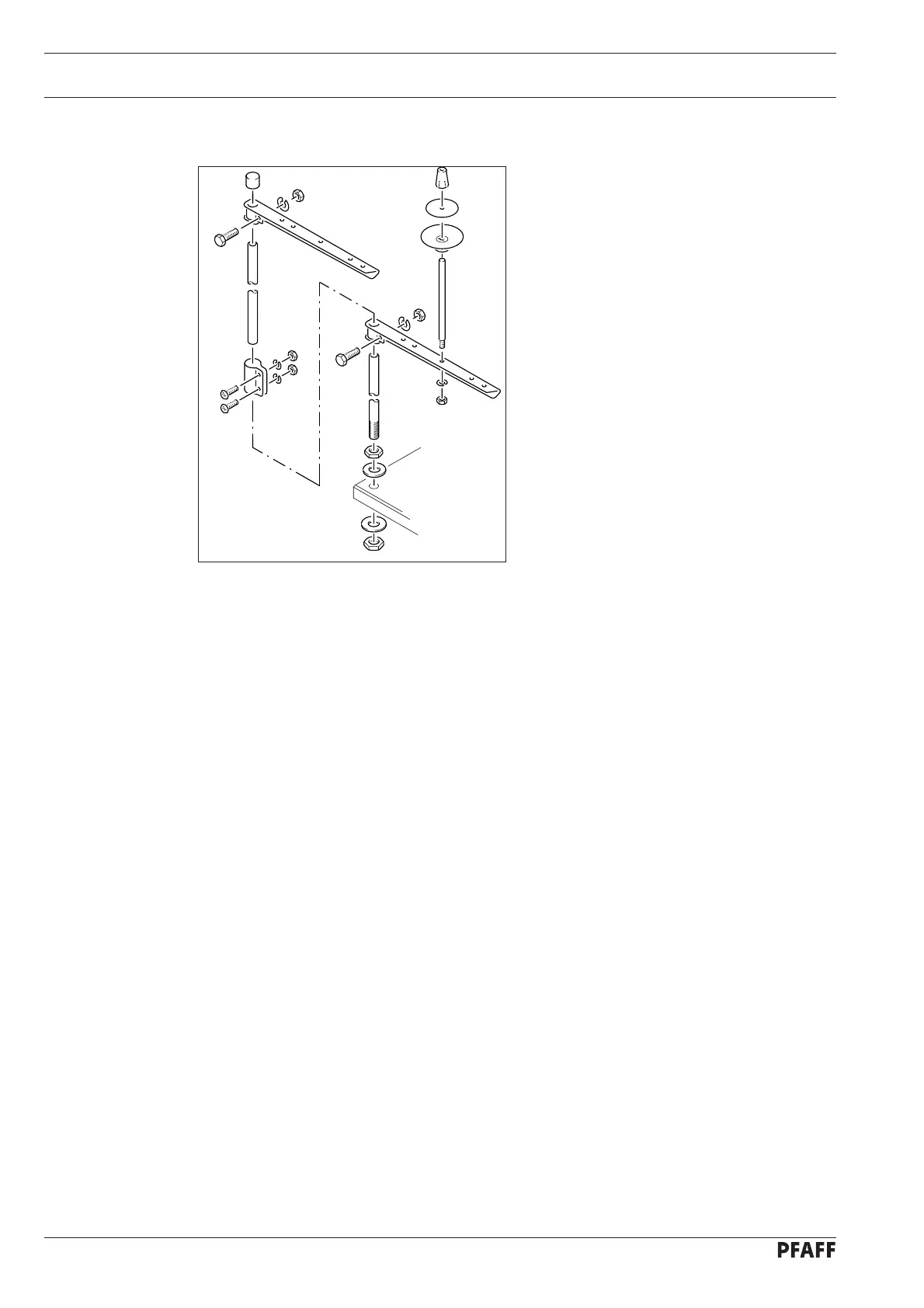

● Fit the reel stand as shown in Fig. 8 - 04.
● Afterwards insert the stand in the hole in
the table top and secure it with nuts pro-
vided.
Fig. 8 - 04
8.02 Commissioning
● Clean the machine thoroughly and then check the oil level ( see Chapter 12 Care and
Maintenance ).
● Check the machine, in particular the electric leads and pneumatic connection tubes, for
any damage.
● Have mechanics ensure that the machine’s motor can be operated with the available
electricity supply.
● Connect the machine to the compressed air system. The manometer should show a
pressure of 6 bar.
If necessary, set this value ( see Chapter 12.04 Checking / adjusting the air pressure ).
● Before the machine is commissioned, the seam pattern sizes set in the machine control
unit must be checked, see Chapter 8.04 Setting the seam pattern size.
8.03 Switching the machine on / off
● Switch the machine on or off ( see Chapter 7.01 Main switch ).
