Adjustment
13 - 33
13.33 Adjusting the thread puller
Requirement
1. When cylinder 6 is retracted, screw 4 should be at a distance of approx. 1 mm from the
inside edge of the slot.
2. When thread puller 3 is in its basic position, it should be resting lightly on the thread and
should not touch the edge of the slot when cylinder 6 is extended.
3. The thread should be pulled evenly without any jerks.
4. Thread puller 3 should be set so that a reliable sewing start is guaranteed, but no start
thread is standing out.

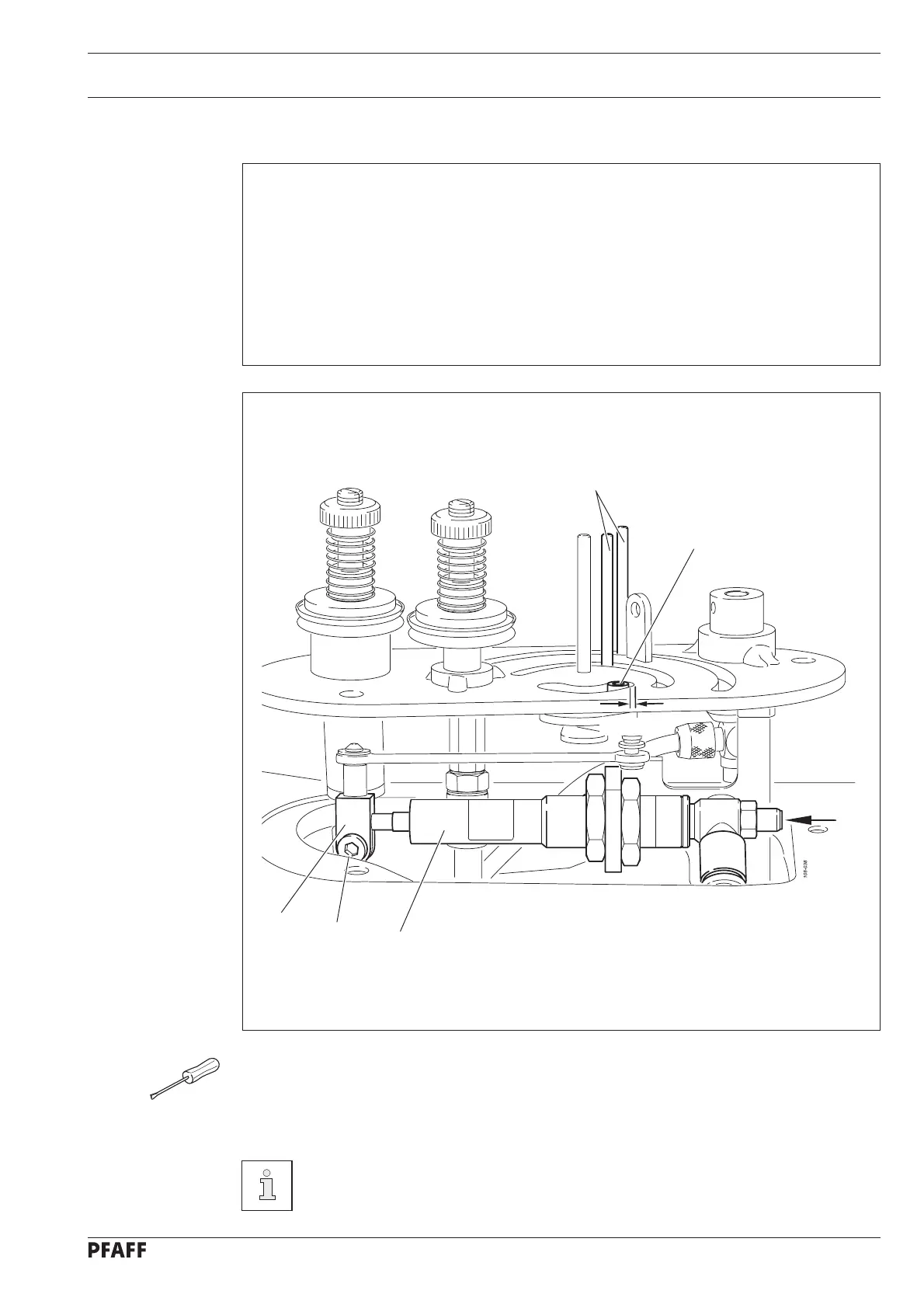

Fig. 13 - 31
6
1
2
3
4
5
1 mm
● Adjust clamp 1 (screw 2) in accordance with requirement 1.
● Adjust thread puller 3 (screw 4) in accordance with requirement 2.
● First of all, close throttle 5 completely and then adjust it in accordance with requirement 3.
● Adjust thread puller with screw 4 in accordance with requirement 4.
If required deviations from this basic setting of thread puller 3 are possible.
