Adjustment
13 - 25

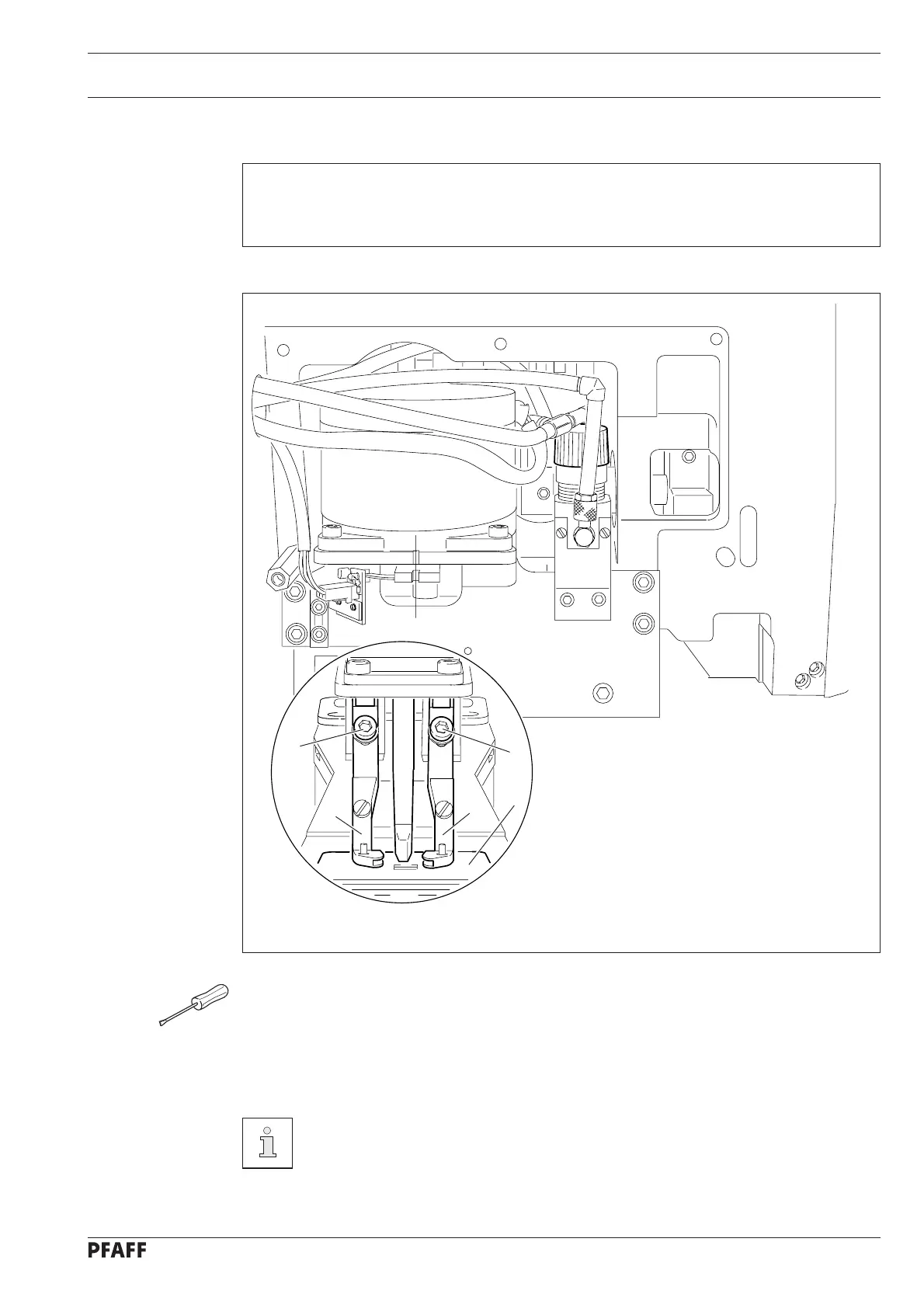

Fig. 13 - 23
64-042
2
2
3
3
1
13.25 Adjusting the clamp pressure (only on subclass -1/..)
Requirement
When the button clamp is lowered, the clamp jaws 2 should be parallel to each other and
touching the cloth plate.
● Remove cloth plate 1.
● Connect the machine to the pneumatic power supply.
● Switch on the machine and lower the button clamp.
● Align clamp jaws 2 (screws 3) in accordance with the requirement.
● Switch off the machine and disconnect it from the pneumatic power supply.
Alteration of the factory setting of the clamp pressure at 4 bar is not permitted.
