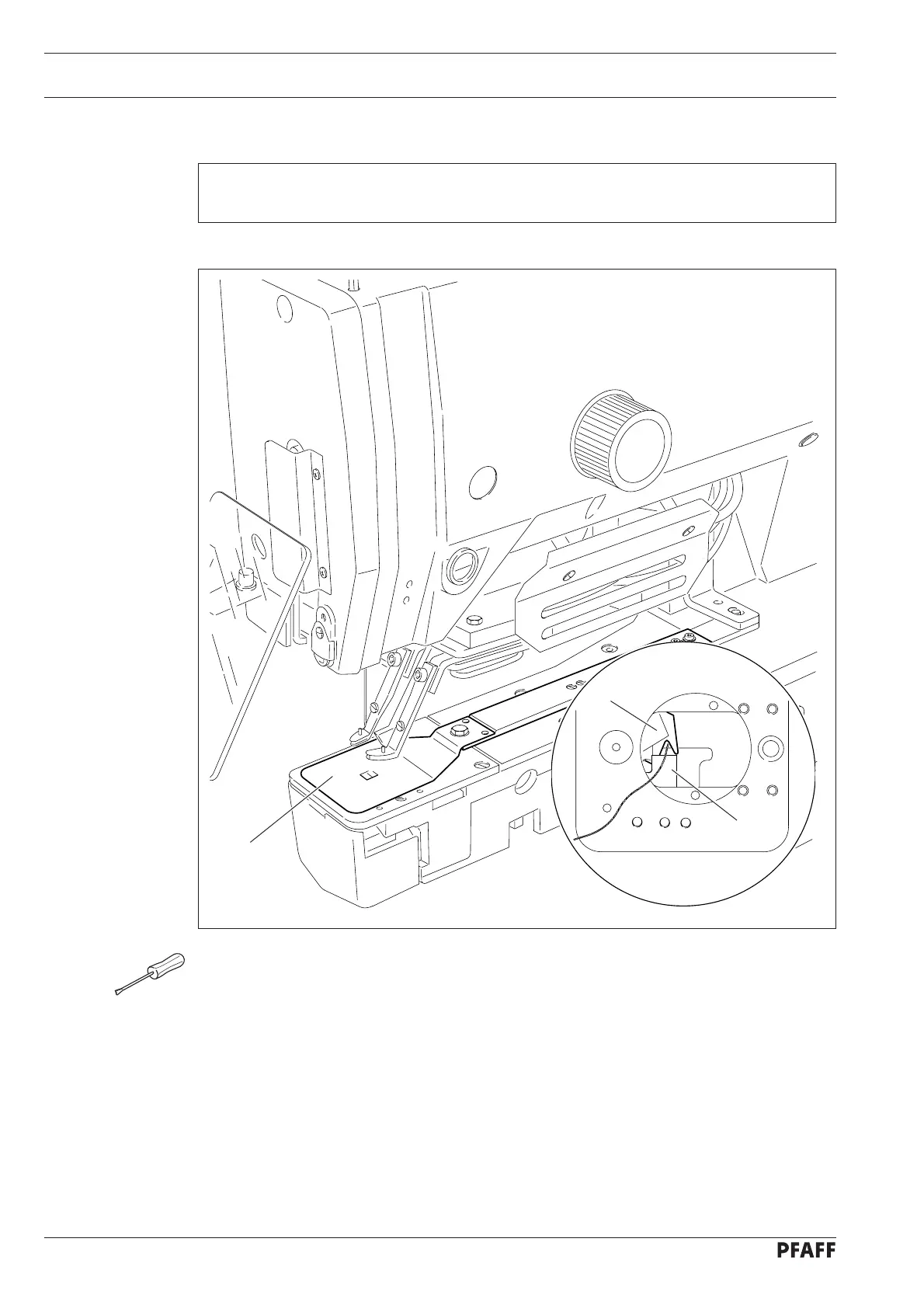

13.18 Manual cutting test
Requirement
In a manual cutting operation the thread should be cut reliably.
● Dismount cloth plate 1 and needle plate insert.
● Place the thread between thread catcher 2 and knife 3.
● Disconnect the machine from the pneumatic power supply.
● Check the requirement by carrying out a manual cutting operation.
● Mount the needle plate, taking care to see that the spherical head of the cutting cylinder
grips into the corresponding guide section of the needle plate.
